bessel_beam.h File Reference

Integer-order cylindrical Bessel beam stimulus. More...

#include "coords.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

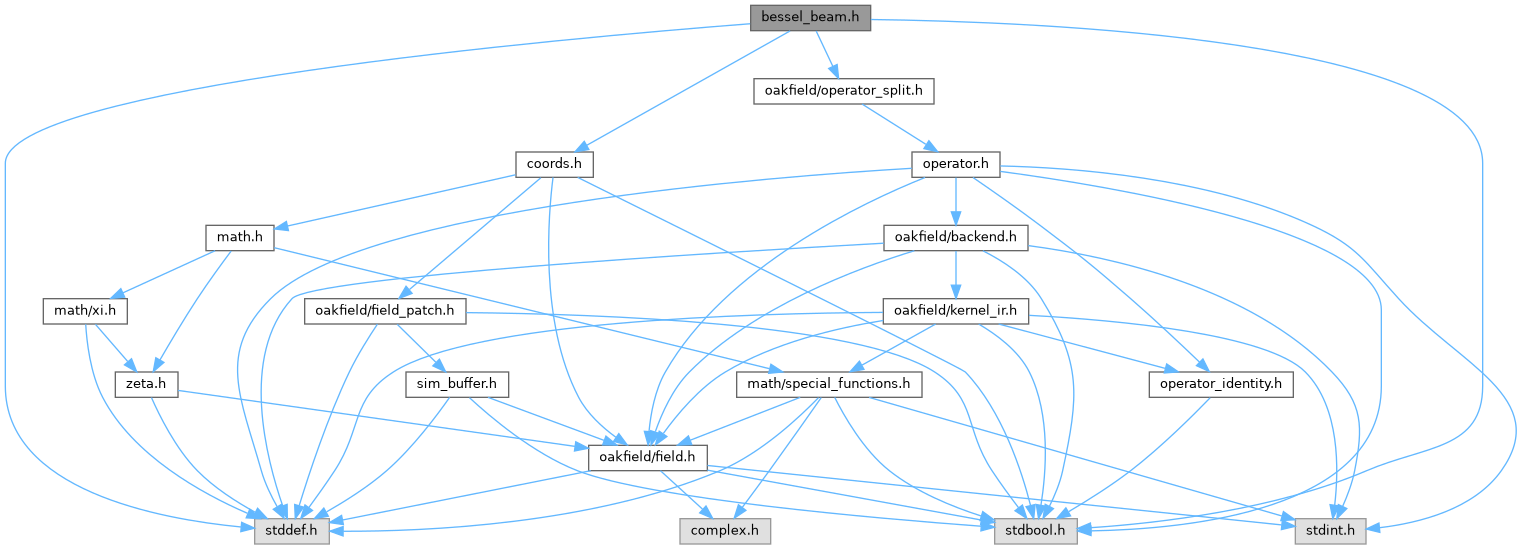

Include dependency graph for bessel_beam.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusBesselBeamConfig
	Configuration for an integer-order cylindrical Bessel beam stimulus. More...

Typedefs
typedef struct SimStimulusBesselBeamConfig	SimStimulusBesselBeamConfig
	Configuration for an integer-order cylindrical Bessel beam stimulus.

Functions
SimResult	sim_add_stimulus_bessel_beam_operator (struct SimContext *context, const SimStimulusBesselBeamConfig *config, size_t *out_index)
	Register an integer-order cylindrical Bessel beam stimulus operator.
SimResult	sim_stimulus_bessel_beam_config (struct SimContext *context, size_t operator_index, SimStimulusBesselBeamConfig *out_config)
	Copy the current Bessel beam configuration from a registered operator.
SimResult	sim_stimulus_bessel_beam_update (struct SimContext *context, size_t operator_index, const SimStimulusBesselBeamConfig *config)
	Replace or renormalize a registered Bessel beam stimulus configuration.

Detailed Description

Integer-order cylindrical Bessel beam stimulus.

Evaluates a local beam frame (u, v) and injects A * J_n(k_r * rho) * exp(i * (n * theta - omega * t + phi)), where rho = hypot(u / s_u, v / s_v) and theta = atan2(v / s_v, u / s_u). The local frame can drift and rotate over time.

Real fields receive the real component. Complex fields receive the full complex beam with an additional global rotation.

Function Documentation

sim_add_stimulus_bessel_beam_operator()

SimResult sim_add_stimulus_bessel_beam_operator	(	struct SimContext *	context,
		const SimStimulusBesselBeamConfig *	config,
		size_t *	out_index
	)

Register an integer-order cylindrical Bessel beam stimulus operator.

The implementation copies and normalizes config, then registers a split operator that writes the Bessel beam into the configured target field.

Parameters

	context	Simulation context that will own the operator.
	config	Optional Bessel beam configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, or split-operator registration.

sim_stimulus_bessel_beam_config()

SimResult sim_stimulus_bessel_beam_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusBesselBeamConfig *	out_config
	)

Copy the current Bessel beam configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_bessel_beam_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_bessel_beam_update()

SimResult sim_stimulus_bessel_beam_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusBesselBeamConfig *	config
	)

Replace or renormalize a registered Bessel beam stimulus configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update refreshes derived state and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the Bessel beam operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup, allocation, or state validation fails.
