chaos_map.h File Reference

Discrete chaotic map operator for real or complex state fields. More...

#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

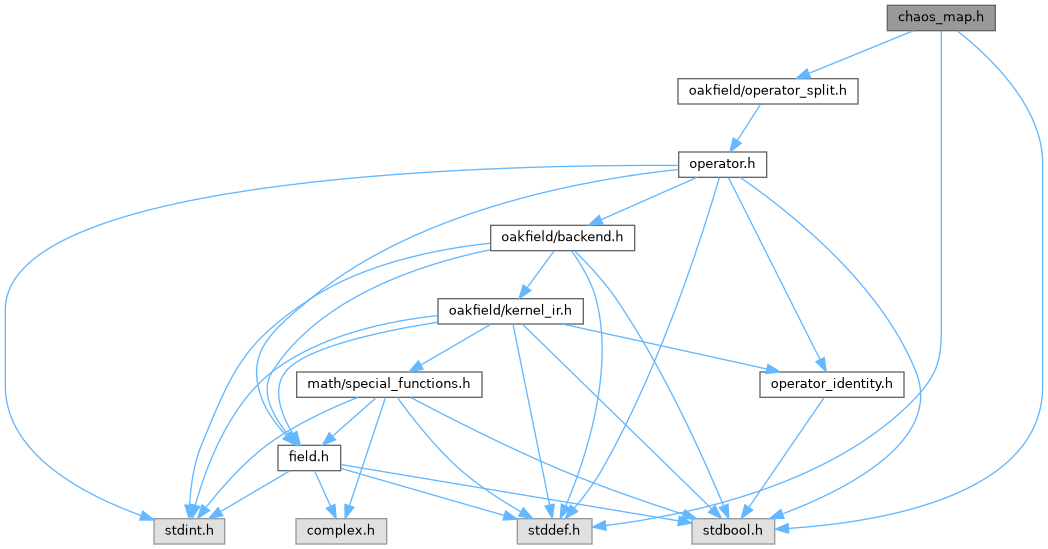

Include dependency graph for chaos_map.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimChaosMapOperatorConfig
	Configuration for discrete chaotic map operators. More...

Typedefs
typedef enum SimChaosMapType	SimChaosMapType
	Supported chaotic map families.
typedef enum SimChaosKickMode	SimChaosKickMode
	Standard map kick/drift ordering.
typedef enum SimChaosWrapMode	SimChaosWrapMode
	Wrap mode for state components.
typedef enum SimChaosEscapeMode	SimChaosEscapeMode
	Escape handling when state diverges.
typedef struct SimChaosMapOperatorConfig	SimChaosMapOperatorConfig
	Configuration for discrete chaotic map operators.

Enumerations
enum	SimChaosMapType {   SIM_CHAOS_MAP_STANDARD = 0 , SIM_CHAOS_MAP_IKEDA , SIM_CHAOS_MAP_EXPONENTIAL , SIM_CHAOS_MAP_QUADRATIC ,   SIM_CHAOS_MAP_HENON , SIM_CHAOS_MAP_LOZI , SIM_CHAOS_MAP_TINKERBELL }
	Supported chaotic map families. More...
enum	SimChaosKickMode { SIM_CHAOS_KICK_DRIFT = 0 , SIM_CHAOS_DRIFT_KICK , SIM_CHAOS_KICK_DRIFT_KICK }
	Standard map kick/drift ordering. More...
enum	SimChaosWrapMode { SIM_CHAOS_WRAP_NONE = 0 , SIM_CHAOS_WRAP_PERIODIC , SIM_CHAOS_WRAP_CLAMP , SIM_CHAOS_WRAP_MIRROR }
	Wrap mode for state components. More...
enum	SimChaosEscapeMode { SIM_CHAOS_ESCAPE_NONE = 0 , SIM_CHAOS_ESCAPE_CLAMP , SIM_CHAOS_ESCAPE_RESET , SIM_CHAOS_ESCAPE_NAN }
	Escape handling when state diverges. More...

Functions
SimResult	sim_add_chaos_map_operator (struct SimContext *context, const SimChaosMapOperatorConfig *config, size_t *out_index)
	Register a chaos map operator with the provided configuration.
SimResult	sim_chaos_map_config (struct SimContext *context, size_t operator_index, SimChaosMapOperatorConfig *out_config)
	Retrieve the configuration currently bound to a chaos map operator.
SimResult	sim_chaos_map_update (struct SimContext *context, size_t operator_index, const SimChaosMapOperatorConfig *config)
	Update an existing chaos map operator in-place.

Detailed Description

Discrete chaotic map operator for real or complex state fields.

Typedef Documentation

SimChaosMapOperatorConfig

typedef struct SimChaosMapOperatorConfig SimChaosMapOperatorConfig

Configuration for discrete chaotic map operators.

The state is stored in a complex field: re = x, im = y (or momentum for standard map).

Enumeration Type Documentation

SimChaosEscapeMode

enum SimChaosEscapeMode

Escape handling when state diverges.

Enumerator
SIM_CHAOS_ESCAPE_NONE	Do not apply escape handling.
SIM_CHAOS_ESCAPE_CLAMP	Clamp escaped state back into bounds.
SIM_CHAOS_ESCAPE_RESET	Reset escaped state to configured fallback.
SIM_CHAOS_ESCAPE_NAN	Mark escaped state as NaN.

SimChaosKickMode

enum SimChaosKickMode

Standard map kick/drift ordering.

Enumerator
SIM_CHAOS_KICK_DRIFT	Apply kick before drift.
SIM_CHAOS_DRIFT_KICK	Apply drift before kick.
SIM_CHAOS_KICK_DRIFT_KICK	Symmetric kick-drift-kick ordering.

SimChaosMapType

enum SimChaosMapType

Supported chaotic map families.

Enumerator
SIM_CHAOS_MAP_STANDARD	Chirikov standard map.
SIM_CHAOS_MAP_IKEDA	Ikeda map.
SIM_CHAOS_MAP_EXPONENTIAL	Exponential complex map.
SIM_CHAOS_MAP_QUADRATIC	Quadratic complex map.
SIM_CHAOS_MAP_HENON	Henon map.
SIM_CHAOS_MAP_LOZI	Lozi map.
SIM_CHAOS_MAP_TINKERBELL	Tinkerbell map.

SimChaosWrapMode

enum SimChaosWrapMode

Wrap mode for state components.

Enumerator
SIM_CHAOS_WRAP_NONE	Leave state components unwrapped.
SIM_CHAOS_WRAP_PERIODIC	Wrap state components periodically.
SIM_CHAOS_WRAP_CLAMP	Clamp state components to configured bounds.
SIM_CHAOS_WRAP_MIRROR	Mirror state components at configured bounds.

Function Documentation

sim_add_chaos_map_operator()

SimResult sim_add_chaos_map_operator	(	struct SimContext *	context,
		const SimChaosMapOperatorConfig *	config,
		size_t *	out_index
	)

Register a chaos map operator with the provided configuration.

Parameters

	context	Simulation context that will own the operator.
	config	Optional chaos map configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, field compatibility checks, allocation, or split registration.

sim_chaos_map_config()

SimResult sim_chaos_map_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimChaosMapOperatorConfig *	out_config
	)

Retrieve the configuration currently bound to a chaos map operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_chaos_map_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no chaos-map state.

sim_chaos_map_update()

SimResult sim_chaos_map_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimChaosMapOperatorConfig *	config
	)

Update an existing chaos map operator in-place.

Passing NULL for config keeps the current configuration and reapplies normalization. A successful update refreshes symbolic metadata.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the chaos map operator to update.
config	Optional replacement chaos map configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for a NULL context, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no chaos-map state.
