checkerboard.h File Reference

Checkerboard / stripe pattern stimulus (complex-capable). More...

#include "coords.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

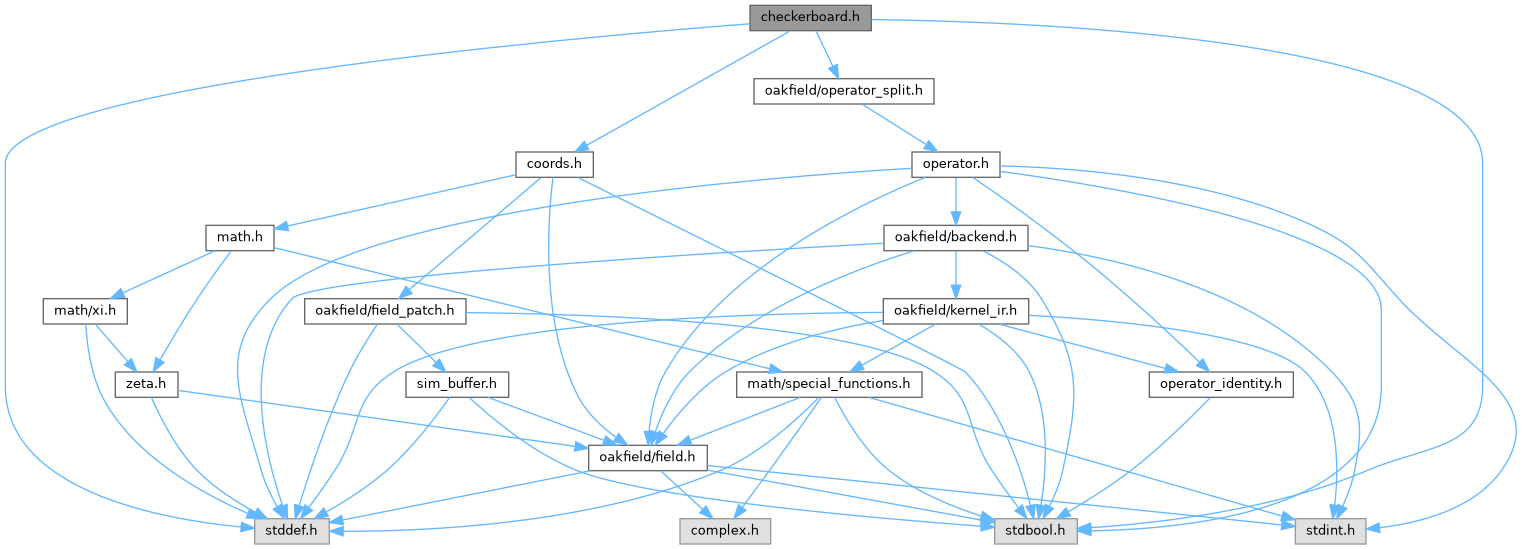

Include dependency graph for checkerboard.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusCheckerboardConfig
	Configuration for checkerboard or stripe pattern stimulus writes. More...

Typedefs
typedef struct SimStimulusCheckerboardConfig	SimStimulusCheckerboardConfig
	Configuration for checkerboard or stripe pattern stimulus writes.

Functions
SimResult	sim_add_stimulus_checkerboard_operator (struct SimContext *context, const SimStimulusCheckerboardConfig *config, size_t *out_index)
	Register a checkerboard or stripe stimulus operator.
SimResult	sim_stimulus_checkerboard_config (struct SimContext *context, size_t operator_index, SimStimulusCheckerboardConfig *out_config)
	Copy the current checkerboard configuration from a registered operator.
SimResult	sim_stimulus_checkerboard_update (struct SimContext *context, size_t operator_index, const SimStimulusCheckerboardConfig *config)
	Replace or renormalize a registered checkerboard stimulus configuration.

Detailed Description

Checkerboard / stripe pattern stimulus (complex-capable).

Generates a static geometric pattern over 1D or 2D fields: f(i, j) = A · (-1)^{⌊i / Px⌋ + ⌊j / Py⌋} For complex fields, an additional global phase rotation is applied.

Function Documentation

sim_add_stimulus_checkerboard_operator()

SimResult sim_add_stimulus_checkerboard_operator	(	struct SimContext *	context,
		const SimStimulusCheckerboardConfig *	config,
		size_t *	out_index
	)

Register a checkerboard or stripe stimulus operator.

The implementation copies and normalizes config, then registers a split operator that writes the geometric pattern into the configured target field.

Parameters

	context	Simulation context that will own the operator.
	config	Optional checkerboard configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, or split-operator registration.

sim_stimulus_checkerboard_config()

SimResult sim_stimulus_checkerboard_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusCheckerboardConfig *	out_config
	)

Copy the current checkerboard configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_checkerboard_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_checkerboard_update()

SimResult sim_stimulus_checkerboard_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusCheckerboardConfig *	config
	)

Replace or renormalize a registered checkerboard stimulus configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update refreshes derived state and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the checkerboard operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup, allocation, or state validation fails.
