chladni.h File Reference

Chladni nodal-line stimulus for vibrating rectangular plate modes. More...

#include "coords.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

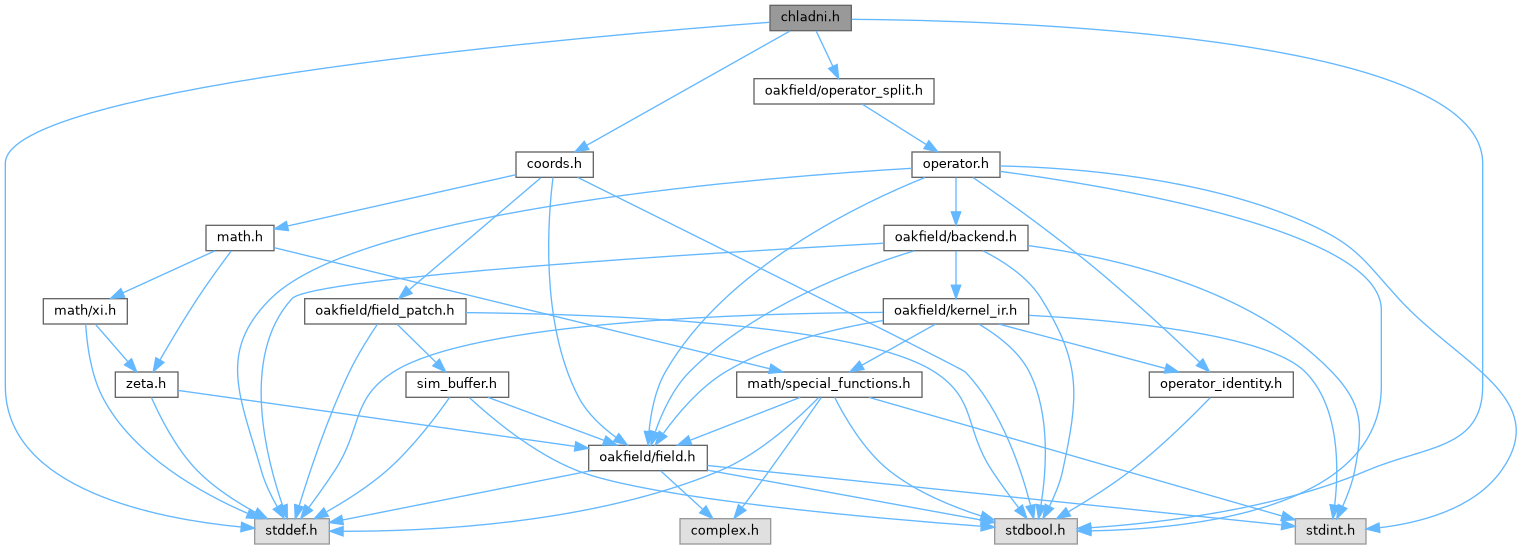

Include dependency graph for chladni.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusChladniConfig
	Configuration for a Chladni nodal-line stimulus on a rectangular plate. More...

Typedefs
typedef struct SimStimulusChladniConfig	SimStimulusChladniConfig
	Configuration for a Chladni nodal-line stimulus on a rectangular plate.

Functions
SimResult	sim_add_stimulus_chladni_operator (struct SimContext *context, const SimStimulusChladniConfig *config, size_t *out_index)
	Register a Chladni nodal-line stimulus operator.
SimResult	sim_stimulus_chladni_config (struct SimContext *context, size_t operator_index, SimStimulusChladniConfig *out_config)
	Copy the current Chladni configuration from a registered operator.
SimResult	sim_stimulus_chladni_update (struct SimContext *context, size_t operator_index, const SimStimulusChladniConfig *config)
	Replace or renormalize a registered Chladni stimulus configuration.

Detailed Description

Chladni nodal-line stimulus for vibrating rectangular plate modes.

Builds a Gaussian band around the nodal set of an antisymmetrized rectangular-plate mode pair: base(u,v) = cos(m*pi*u/Lx) cos(n*pi*v/Ly) - mix * cos(n*pi*u/Lx) cos(m*pi*v/Ly) and writes A * exp(-base(u,v)^2 / (2*sigma^2)) * exp(i * (-omega*t + phi)).

Real fields receive the real component of the pattern; complex fields receive the full complex pattern with an additional global rotation.

Function Documentation

sim_add_stimulus_chladni_operator()

SimResult sim_add_stimulus_chladni_operator	(	struct SimContext *	context,
		const SimStimulusChladniConfig *	config,
		size_t *	out_index
	)

Register a Chladni nodal-line stimulus operator.

The implementation copies and normalizes config, then registers a split operator that writes the modal nodal-band pattern into the configured target field.

Parameters

	context	Simulation context that will own the operator.
	config	Optional Chladni configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, or split-operator registration.

sim_stimulus_chladni_config()

SimResult sim_stimulus_chladni_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusChladniConfig *	out_config
	)

Copy the current Chladni configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_chladni_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_chladni_update()

SimResult sim_stimulus_chladni_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusChladniConfig *	config
	)

Replace or renormalize a registered Chladni stimulus configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update refreshes derived state and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the Chladni operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup, allocation, or state validation fails.
