complex_math.h File Reference

Elementwise complex math operator. More...

#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

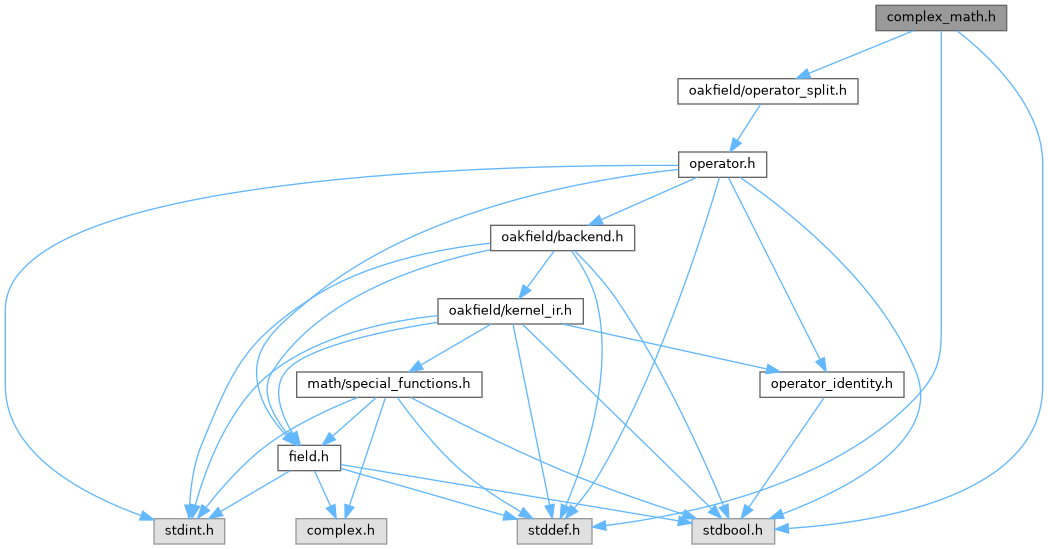

Include dependency graph for complex_math.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimComplexMathOperatorConfig
	Configuration for the complex math operator. More...

Typedefs
typedef enum SimComplexMathMode	SimComplexMathMode
	Elementwise complex math operation.
typedef enum SimComplexMathRhsSource	SimComplexMathRhsSource
	Right-hand side source for binary ops.
typedef enum SimComplexMathOutputComponent	SimComplexMathOutputComponent
	Output component selection when writing into real fields.
typedef enum SimComplexMathPhaseWrap	SimComplexMathPhaseWrap
	Phase wrap policy for phase outputs.
typedef struct SimComplexMathOperatorConfig	SimComplexMathOperatorConfig
	Configuration for the complex math operator.

Enumerations
enum	SimComplexMathMode {   SIM_COMPLEX_MATH_ADD = 0 , SIM_COMPLEX_MATH_SUB , SIM_COMPLEX_MATH_MUL , SIM_COMPLEX_MATH_DIV ,   SIM_COMPLEX_MATH_POW , SIM_COMPLEX_MATH_EXP , SIM_COMPLEX_MATH_LOG , SIM_COMPLEX_MATH_SIN ,   SIM_COMPLEX_MATH_COS , SIM_COMPLEX_MATH_TAN , SIM_COMPLEX_MATH_SINH , SIM_COMPLEX_MATH_COSH ,   SIM_COMPLEX_MATH_TANH , SIM_COMPLEX_MATH_SQRT , SIM_COMPLEX_MATH_CONJ , SIM_COMPLEX_MATH_ABS ,   SIM_COMPLEX_MATH_ARG , SIM_COMPLEX_MATH_REAL , SIM_COMPLEX_MATH_IMAG , SIM_COMPLEX_MATH_NEG }
	Elementwise complex math operation. More...
enum	SimComplexMathRhsSource { SIM_COMPLEX_MATH_RHS_FIELD = 0 , SIM_COMPLEX_MATH_RHS_CONSTANT }
	Right-hand side source for binary ops. More...
enum	SimComplexMathOutputComponent { SIM_COMPLEX_MATH_OUTPUT_REAL = 0 , SIM_COMPLEX_MATH_OUTPUT_IMAG , SIM_COMPLEX_MATH_OUTPUT_MAGNITUDE , SIM_COMPLEX_MATH_OUTPUT_PHASE }
	Output component selection when writing into real fields. More...
enum	SimComplexMathPhaseWrap { SIM_COMPLEX_MATH_PHASE_NONE = 0 , SIM_COMPLEX_MATH_PHASE_SIGNED , SIM_COMPLEX_MATH_PHASE_UNSIGNED , SIM_COMPLEX_MATH_PHASE_UNIT }
	Phase wrap policy for phase outputs. More...

Functions
SimResult	sim_add_complex_math_operator (struct SimContext *context, const SimComplexMathOperatorConfig *config, size_t *out_index)
	Register a complex math operator with the provided configuration.
SimResult	sim_complex_math_config (struct SimContext *context, size_t operator_index, SimComplexMathOperatorConfig *out_config)
	Retrieve the configuration currently bound to a complex math operator.
SimResult	sim_complex_math_update (struct SimContext *context, size_t operator_index, const SimComplexMathOperatorConfig *config)
	Update an existing complex math operator in-place.

Detailed Description

Elementwise complex math operator.

Enumeration Type Documentation

SimComplexMathMode

enum SimComplexMathMode

Elementwise complex math operation.

Enumerator
SIM_COMPLEX_MATH_ADD	Complex addition.
SIM_COMPLEX_MATH_SUB	Complex subtraction.
SIM_COMPLEX_MATH_MUL	Complex multiplication.
SIM_COMPLEX_MATH_DIV	Complex division.
SIM_COMPLEX_MATH_POW	Complex power.
SIM_COMPLEX_MATH_EXP	Complex exponential.
SIM_COMPLEX_MATH_LOG	Principal complex logarithm.
SIM_COMPLEX_MATH_SIN	Complex sine.
SIM_COMPLEX_MATH_COS	Complex cosine.
SIM_COMPLEX_MATH_TAN	Complex tangent.
SIM_COMPLEX_MATH_SINH	Complex hyperbolic sine.
SIM_COMPLEX_MATH_COSH	Complex hyperbolic cosine.
SIM_COMPLEX_MATH_TANH	Complex hyperbolic tangent.
SIM_COMPLEX_MATH_SQRT	Principal complex square root.
SIM_COMPLEX_MATH_CONJ	Complex conjugate.
SIM_COMPLEX_MATH_ABS	Complex magnitude.
SIM_COMPLEX_MATH_ARG	Complex phase angle.
SIM_COMPLEX_MATH_REAL	Real component extraction.
SIM_COMPLEX_MATH_IMAG	Imaginary component extraction.
SIM_COMPLEX_MATH_NEG	Complex negation.

SimComplexMathOutputComponent

enum SimComplexMathOutputComponent

Output component selection when writing into real fields.

Enumerator
SIM_COMPLEX_MATH_OUTPUT_REAL	Write real component.
SIM_COMPLEX_MATH_OUTPUT_IMAG	Write imaginary component.
SIM_COMPLEX_MATH_OUTPUT_MAGNITUDE	Write magnitude.
SIM_COMPLEX_MATH_OUTPUT_PHASE	Write phase angle.

SimComplexMathPhaseWrap

enum SimComplexMathPhaseWrap

Phase wrap policy for phase outputs.

Enumerator
SIM_COMPLEX_MATH_PHASE_NONE	Leave phase unwrapped.
SIM_COMPLEX_MATH_PHASE_SIGNED	Wrap phase to a signed angular interval.
SIM_COMPLEX_MATH_PHASE_UNSIGNED	Wrap phase to an unsigned angular interval.
SIM_COMPLEX_MATH_PHASE_UNIT	Normalize phase to the unit interval.

SimComplexMathRhsSource

enum SimComplexMathRhsSource

Right-hand side source for binary ops.

Enumerator
SIM_COMPLEX_MATH_RHS_FIELD	Read RHS values from rhs_field.
SIM_COMPLEX_MATH_RHS_CONSTANT	Use rhs_constant_* as RHS values.

Function Documentation

sim_add_complex_math_operator()

SimResult sim_add_complex_math_operator	(	struct SimContext *	context,
		const SimComplexMathOperatorConfig *	config,
		size_t *	out_index
	)

Register a complex math operator with the provided configuration.

Parameters

	context	Simulation context that will own the operator.
	config	Optional complex math configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, field validation, allocation, or split registration.

sim_complex_math_config()

SimResult sim_complex_math_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimComplexMathOperatorConfig *	out_config
	)

Retrieve the configuration currently bound to a complex math operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_complex_math_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no complex-math state.

sim_complex_math_update()

SimResult sim_complex_math_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimComplexMathOperatorConfig *	config
	)

Update an existing complex math operator in-place.

Passing NULL for config keeps the current configuration and reapplies normalization. A successful update refreshes symbolic metadata.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the complex math operator to update.
config	Optional replacement complex math configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for a NULL context, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no complex-math state.
