coordinate.h File Reference

Coordinate/index generator operator. More...

#include "oakfield/operator_split.h"
#include "oakfield/operators/stimulus/coords.h"
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>

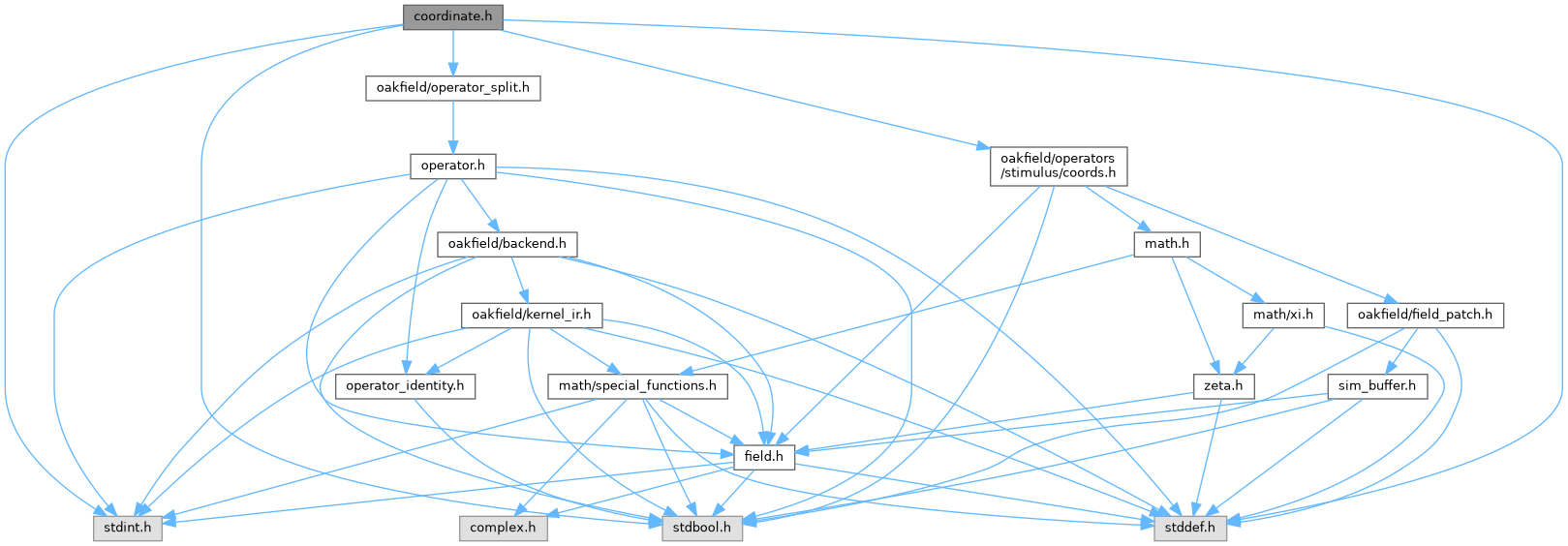

Include dependency graph for coordinate.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimCoordinateOperatorConfig
	Configuration parameters for the coordinate generator operator. More...

Typedefs
typedef enum SimCoordinateMode	SimCoordinateMode
	Coordinate source mode.
typedef enum SimCoordinateNormalizeMode	SimCoordinateNormalizeMode
	Normalization mode for coordinate values.
typedef struct SimCoordinateOperatorConfig	SimCoordinateOperatorConfig
	Configuration parameters for the coordinate generator operator.

Enumerations
enum	SimCoordinateMode { SIM_COORD_MODE_INDEX = 0 , SIM_COORD_MODE_COORD }
	Coordinate source mode. More...
enum	SimCoordinateNormalizeMode { SIM_COORD_NORMALIZE_NONE = 0 , SIM_COORD_NORMALIZE_UNIT , SIM_COORD_NORMALIZE_CENTERED , SIM_COORD_NORMALIZE_SIGNED }
	Normalization mode for coordinate values. More...

Functions
SimResult	sim_add_coordinate_operator (struct SimContext *context, const SimCoordinateOperatorConfig *config, size_t *out_index)
	Register a coordinate generator operator with the provided configuration.
SimResult	sim_coordinate_config (struct SimContext *context, size_t operator_index, SimCoordinateOperatorConfig *out_config)
	Retrieve the configuration currently bound to a coordinate operator.
SimResult	sim_coordinate_update (struct SimContext *context, size_t operator_index, const SimCoordinateOperatorConfig *config)
	Update an existing coordinate operator in-place.

Detailed Description

Coordinate/index generator operator.

Writes element index or coordinate-based values into a field, with optional normalization and scaling. Coordinates reuse the stimulus coordinate configuration for axis/angle/radial mappings.

Typedef Documentation

SimCoordinateMode

typedef enum SimCoordinateMode SimCoordinateMode

Coordinate source mode.

Index mode writes the linear element index. Coordinate mode evaluates the shared stimulus coordinate mapping at each element position.

Enumeration Type Documentation

SimCoordinateMode

enum SimCoordinateMode

Coordinate source mode.

Index mode writes the linear element index. Coordinate mode evaluates the shared stimulus coordinate mapping at each element position.

Enumerator
SIM_COORD_MODE_INDEX	Use linear element index (0..N-1).
SIM_COORD_MODE_COORD	Use coordinate mapping configured in the coord field.

SimCoordinateNormalizeMode

enum SimCoordinateNormalizeMode

Normalization mode for coordinate values.

Enumerator
SIM_COORD_NORMALIZE_NONE	No normalization.
SIM_COORD_NORMALIZE_UNIT	Map to [0, 1].
SIM_COORD_NORMALIZE_CENTERED	Map to [-0.5, 0.5].
SIM_COORD_NORMALIZE_SIGNED	Map to [-1, 1].

Function Documentation

sim_add_coordinate_operator()

SimResult sim_add_coordinate_operator	(	struct SimContext *	context,
		const SimCoordinateOperatorConfig *	config,
		size_t *	out_index
	)

Register a coordinate generator operator with the provided configuration.

The implementation copies and normalizes config, resolves the default scale-by-dt policy, and validates that the output field is real double, complex double, or an exact-integer domain supported by the exact affine path. Passing NULL selects index mode on field 0 with gain 1 and bias 0.

Parameters

	context	Simulation context that will own the operator.
	config	Optional coordinate-generator configuration.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL context or missing output field, SIM_RESULT_TYPE_MISMATCH for unsupported output domains, SIM_RESULT_OUT_OF_MEMORY on allocation failure, or a split-registration error.

sim_coordinate_config()

SimResult sim_coordinate_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimCoordinateOperatorConfig *	out_config
	)

Retrieve the configuration currently bound to a coordinate operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_coordinate_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no coordinate state.

sim_coordinate_update()

SimResult sim_coordinate_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimCoordinateOperatorConfig *	config
	)

Update an existing coordinate operator in-place.

Passing NULL for config keeps the current configuration and reapplies normalization. A successful update refreshes runtime state, exact-integer affine metadata, symbolic state, and the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the coordinate operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL context or missing output field, SIM_RESULT_NOT_FOUND for a missing operator, SIM_RESULT_INVALID_STATE for missing state, or SIM_RESULT_TYPE_MISMATCH for unsupported output domains.
