curl.h File Reference

Finite-difference curl-like scalar operator for two vector components. More...

#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

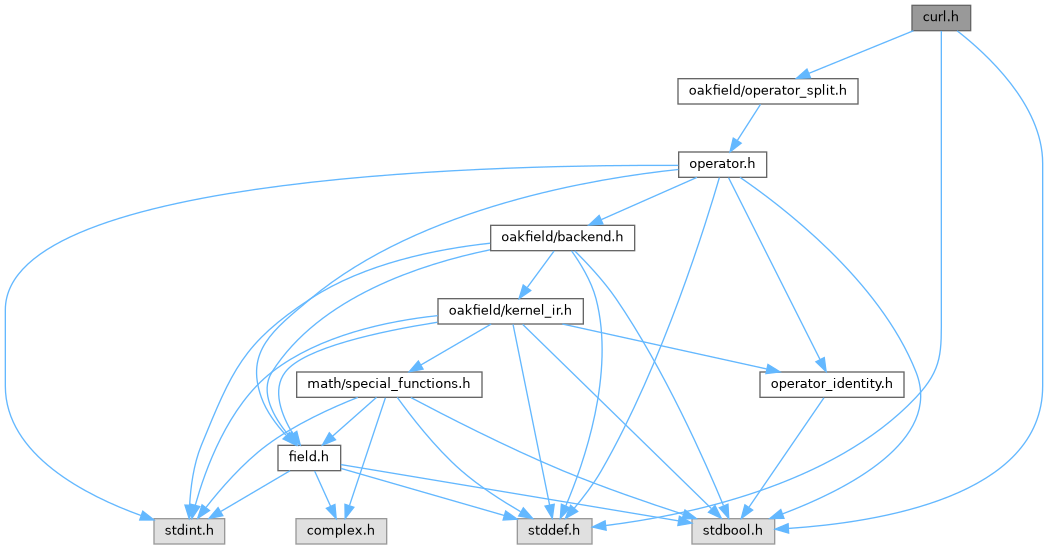

Include dependency graph for curl.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimCurlOperatorConfig
	Configuration for a finite-difference scalar curl operator. More...

Macros
#define	SIM_CURL_AXIS_AUTO   ((size_t)SIZE_MAX)

Typedefs
typedef enum SimCurlStencil	SimCurlStencil
	Finite-difference stencils available for curl derivatives.
typedef struct SimCurlOperatorConfig	SimCurlOperatorConfig
	Configuration for a finite-difference scalar curl operator.

Enumerations
enum	SimCurlStencil {   SIM_CURL_STENCIL_CENTRAL_2 = 0 , SIM_CURL_STENCIL_CENTRAL_4 , SIM_CURL_STENCIL_FORWARD_1 , SIM_CURL_STENCIL_BACKWARD_1 ,   SIM_CURL_STENCIL_FORWARD_2 , SIM_CURL_STENCIL_BACKWARD_2 }
	Finite-difference stencils available for curl derivatives. More...

Functions
SimResult	sim_add_curl_operator (struct SimContext *context, const SimCurlOperatorConfig *config, size_t *out_index)
	Register a finite-difference curl operator.
SimResult	sim_curl_config (struct SimContext *context, size_t operator_index, SimCurlOperatorConfig *out_config)
	Copy the current curl configuration from a registered operator.
SimResult	sim_curl_update (struct SimContext *context, size_t operator_index, const SimCurlOperatorConfig *config)
	Replace the configuration of a registered curl operator.

Detailed Description

Finite-difference curl-like scalar operator for two vector components.

Enumeration Type Documentation

SimCurlStencil

enum SimCurlStencil

Finite-difference stencils available for curl derivatives.

Enumerator
SIM_CURL_STENCIL_CENTRAL_2	Second-order central difference.
SIM_CURL_STENCIL_CENTRAL_4	Fourth-order central difference.
SIM_CURL_STENCIL_FORWARD_1	First-order forward difference.
SIM_CURL_STENCIL_BACKWARD_1	First-order backward difference.
SIM_CURL_STENCIL_FORWARD_2	Second-order forward difference.
SIM_CURL_STENCIL_BACKWARD_2	Second-order backward difference.

Function Documentation

sim_add_curl_operator()

SimResult sim_add_curl_operator	(	struct SimContext *	context,
		const SimCurlOperatorConfig *	config,
		size_t *	out_index
	)

Register a finite-difference curl operator.

Parameters

	context	Simulation context that will own the operator.
	config	Optional curl configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, field compatibility checks, allocation, or split registration.

sim_curl_config()

SimResult sim_curl_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimCurlOperatorConfig *	out_config
	)

Copy the current curl configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_curl_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no curl state.

sim_curl_update()

SimResult sim_curl_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimCurlOperatorConfig *	config
	)

Replace the configuration of a registered curl operator.

config is required. The replacement is normalized and field compatibility is checked before storing it.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the curl operator to update.
config	Replacement curl configuration.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, lookup, state validation, or field compatibility checks.
