digamma_square.h File Reference

Digamma square stimulus operators. More...

#include "coords.h"
#include "oakfield/math/special_functions.h"
#include "oakfield/operator_split.h"
#include "oakfield/operators/coupling/mixer.h"
#include <stdbool.h>
#include <stddef.h>

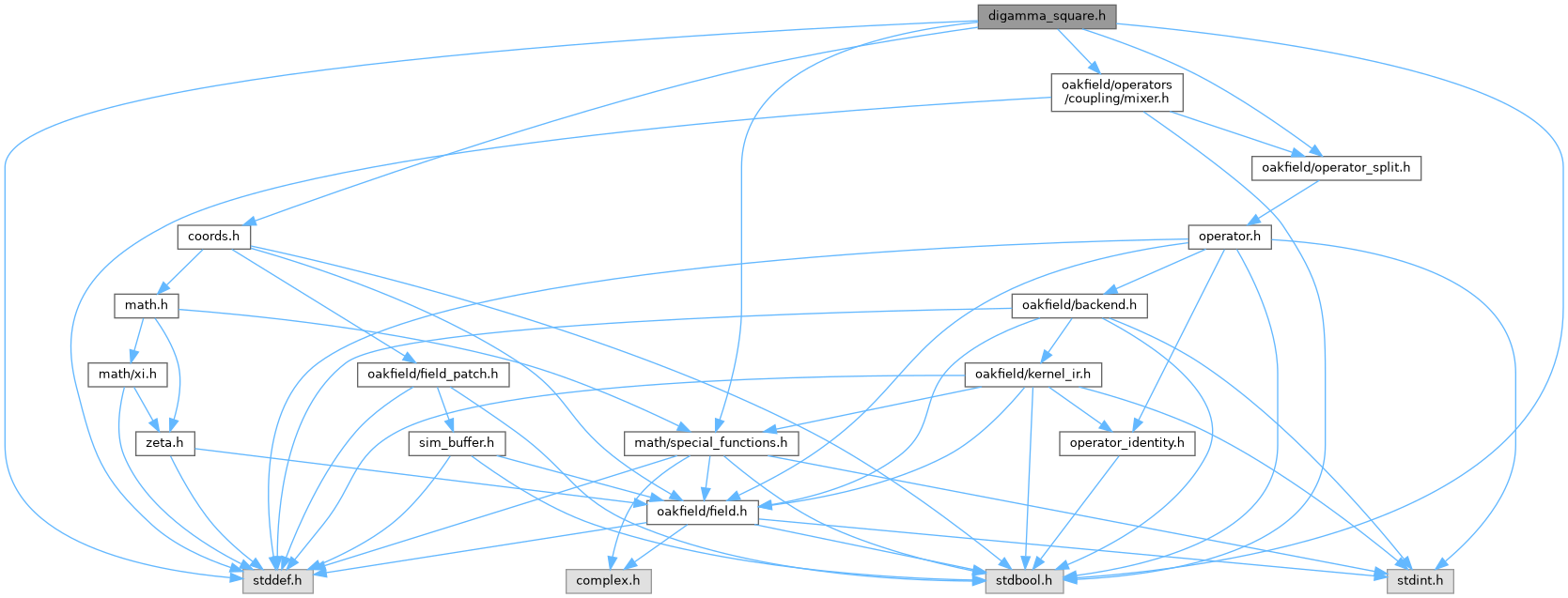

Include dependency graph for digamma_square.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusDigammaSquareConfig
	Shared configuration for digamma square stimulus variants. More...
struct	SimDigammaSquareState
	State for digamma square stimulus. More...

Typedefs
typedef enum SimDigammaSquareWaveformShape	SimDigammaSquareWaveformShape
	Waveform shape for digamma square stimulus.
typedef struct SimStimulusDigammaSquareConfig	SimStimulusDigammaSquareConfig
	Shared configuration for digamma square stimulus variants.
typedef struct SimDigammaSquareState	SimDigammaSquareState
	State for digamma square stimulus.

Enumerations
enum	SimDigammaSquareWaveformShape { SIM_DIGAMMA_SQUARE_WAVEFORM_DEFAULT = 0 , SIM_DIGAMMA_SQUARE_WAVEFORM_TRIANGLE , SIM_DIGAMMA_SQUARE_WAVEFORM_SAWTOOTH }
	Waveform shape for digamma square stimulus. More...

Functions
SimResult	sim_add_stimulus_digamma_square_operator (struct SimContext *context, const SimStimulusDigammaSquareConfig *config, size_t *out_index)
	Register a digamma square stimulus operator.
SimResult	sim_add_digamma_square_operator (struct SimContext *context, size_t field_index, const SimStimulusDigammaSquareConfig *config, size_t *out_index)
	Register a digamma-square operator while overriding the target field.
SimResult	sim_stimulus_digamma_square_config (struct SimContext *context, size_t operator_index, SimStimulusDigammaSquareConfig *out_config)
	Copy the current digamma-square configuration from a registered operator.
SimResult	sim_stimulus_digamma_square_update (struct SimContext *context, size_t operator_index, const SimStimulusDigammaSquareConfig *config)
	Replace or renormalize a registered digamma-square stimulus configuration.

Detailed Description

Digamma square stimulus operators.

Complex fields are driven by writing real/imag components with optional rotation.

Enumeration Type Documentation

SimDigammaSquareWaveformShape

enum SimDigammaSquareWaveformShape

Waveform shape for digamma square stimulus.

Enumerator
SIM_DIGAMMA_SQUARE_WAVEFORM_DEFAULT	Default square-like digamma waveform.
SIM_DIGAMMA_SQUARE_WAVEFORM_TRIANGLE	Triangle-like waveform variant.
SIM_DIGAMMA_SQUARE_WAVEFORM_SAWTOOTH	Sawtooth-like waveform variant.

Function Documentation

sim_add_digamma_square_operator()

SimResult sim_add_digamma_square_operator	(	struct SimContext *	context,
		size_t	field_index,
		const SimStimulusDigammaSquareConfig *	config,
		size_t *	out_index
	)

Register a digamma-square operator while overriding the target field.

This compatibility wrapper copies config when supplied, replaces its field_index with field_index, and registers the legacy operator name.

Parameters

	context	Simulation context that will own the operator.
	field_index	Target field index written by the operator.
	config	Optional configuration values other than the target field.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, buffer setup, or split-operator registration.

sim_add_stimulus_digamma_square_operator()

SimResult sim_add_stimulus_digamma_square_operator	(	struct SimContext *	context,
		const SimStimulusDigammaSquareConfig *	config,
		size_t *	out_index
	)

Register a digamma square stimulus operator.

The implementation copies and normalizes config, then registers the default digamma-square waveform as a split operator targeting the configured field.

Parameters

	context	Simulation context that will own the operator.
	config	Optional digamma-square configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, buffer setup, or split-operator registration.

sim_stimulus_digamma_square_config()

SimResult sim_stimulus_digamma_square_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusDigammaSquareConfig *	out_config
	)

Copy the current digamma-square configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by a digamma-square registration call.
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_digamma_square_update()

SimResult sim_stimulus_digamma_square_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusDigammaSquareConfig *	config
	)

Replace or renormalize a registered digamma-square stimulus configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update refreshes symbolic and cached runtime state before invalidating the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the digamma-square operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup, buffer setup, or state validation fails.
