dispersion.h File Reference

Spectral dispersion operator applying k-dependent phase rotation. More...

#include "oakfield/operator_split.h"

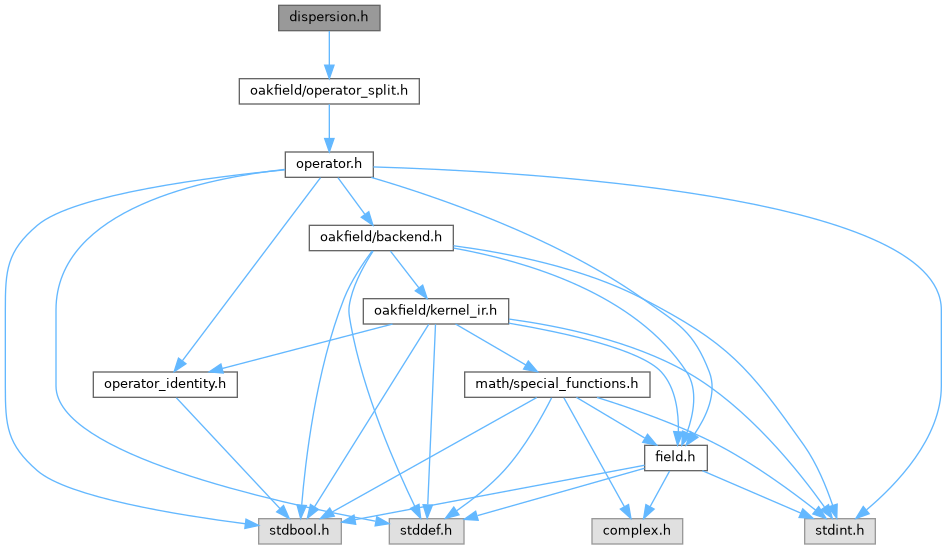

Include dependency graph for dispersion.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	DispersionOperatorConfig
	Configuration for k-dependent spectral phase dispersion. More...

Typedefs
typedef struct DispersionOperatorConfig	DispersionOperatorConfig
	Configuration for k-dependent spectral phase dispersion.

Functions
SimResult	sim_add_dispersion_operator (struct SimContext *context, const DispersionOperatorConfig *config, size_t *out_index)
	Register a spectral dispersion operator.
SimResult	sim_dispersion_config (struct SimContext *context, size_t operator_index, DispersionOperatorConfig *out_config)
	Copy the current dispersion configuration from a registered operator.
SimResult	sim_dispersion_update (struct SimContext *context, size_t operator_index, const DispersionOperatorConfig *config)
	Replace the configuration of a registered dispersion operator.

Detailed Description

Spectral dispersion operator applying k-dependent phase rotation.

Complex fields receive exp(i * theta(k)) evolution. Real fields use the projected real multiplier cos(theta(k)).

Function Documentation

sim_add_dispersion_operator()

SimResult sim_add_dispersion_operator	(	struct SimContext *	context,
		const DispersionOperatorConfig *	config,
		size_t *	out_index
	)

Register a spectral dispersion operator.

Parameters

	context	Simulation context that will own the operator.
	config	Optional dispersion configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, target-field validation, allocation, FFT plan setup, or registration.

sim_dispersion_config()

SimResult sim_dispersion_config	(	struct SimContext *	context,
		size_t	operator_index,
		DispersionOperatorConfig *	out_config
	)

Copy the current dispersion configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_dispersion_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no dispersion state.

sim_dispersion_update()

SimResult sim_dispersion_update	(	struct SimContext *	context,
		size_t	operator_index,
		const DispersionOperatorConfig *	config
	)

Replace the configuration of a registered dispersion operator.

config is required. The target field cannot be retargeted by update.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the dispersion operator to update.
config	Replacement dispersion configuration.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, lookup, state validation, field validation, or cache refresh.
