fft_convert.h File Reference

Utility operator that converts fields between physical and spectral domains. More...

#include "oakfield/operator.h"

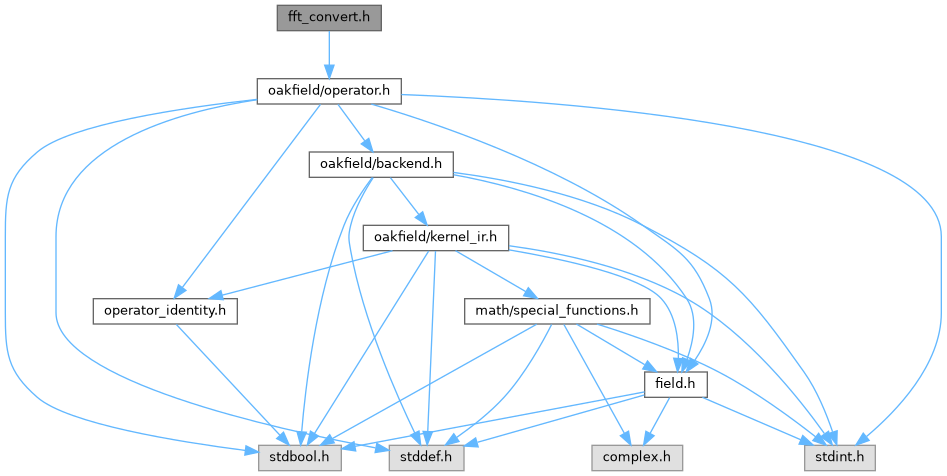

Include dependency graph for fft_convert.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef enum SimFFTConvertDirection	SimFFTConvertDirection
	Direction of a physical/spectral FFT conversion.

Enumerations
enum	SimFFTConvertDirection { SIM_FFT_CONVERT_FORWARD = 0 , SIM_FFT_CONVERT_INVERSE = 1 }
	Direction of a physical/spectral FFT conversion. More...

Functions
SimResult	sim_add_fft_convert (struct SimContext *context, size_t input_field, SimFFTConvertDirection direction, bool in_place, size_t *out_field_index, size_t *out_operator_index)
	Register an FFT conversion operator and allocate its output field.

Detailed Description

Utility operator that converts fields between physical and spectral domains.

FFT conversion is modeled as an explicit graph-IR domain transition. Each conversion allocates a dedicated output field; in-place conversion is not supported.

Enumeration Type Documentation

SimFFTConvertDirection

enum SimFFTConvertDirection

Direction of a physical/spectral FFT conversion.

Enumerator
SIM_FFT_CONVERT_FORWARD	Physical-domain input to spectral-domain output.
SIM_FFT_CONVERT_INVERSE	Spectral-domain input to physical-domain output.

Function Documentation

sim_add_fft_convert()

SimResult sim_add_fft_convert	(	struct SimContext *	context,
		size_t	input_field,
		SimFFTConvertDirection	direction,
		bool	in_place,
		size_t *	out_field_index,
		size_t *	out_operator_index
	)

Register an FFT conversion operator and allocate its output field.

Forward conversion writes a complex spectral field; real scalar inputs produce a complex-real-constrained spectrum. Inverse conversion writes a physical field and returns real scalar output when the input has the complex-real constraint.

Parameters

	context	Simulation context that will own the output field and operator.
	input_field	Index of the field to transform.
	direction	Forward physical-to-spectral or inverse spectral-to-physical.
	in_place	Must be false; true returns SIM_RESULT_NOT_SUPPORTED.
[out]	out_field_index	Optional destination for the newly allocated output field index.
[out]	out_operator_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL context, missing input, empty input, or allocation-size overflow, SIM_RESULT_NOT_SUPPORTED for in-place conversion, SIM_RESULT_TYPE_MISMATCH for inverse conversion from real scalar input, SIM_RESULT_OUT_OF_MEMORY on allocation failure, or a field/graph/operator registration error.
