fractional_memory.h File Reference

History-based fractional memory operator applying a fractional derivative of order q. More...

#include "oakfield/operator_split.h"

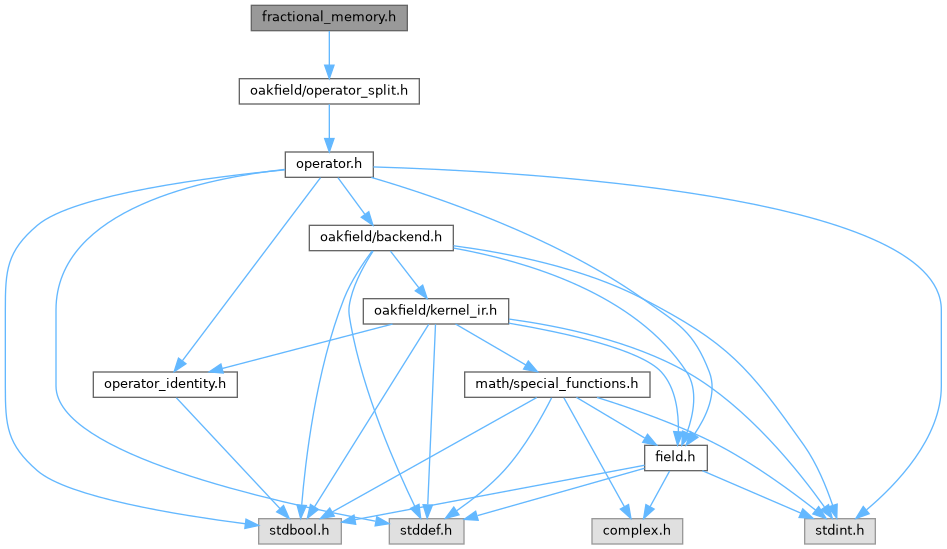

Include dependency graph for fractional_memory.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	FractionalMemoryOperatorConfig
	Configuration parameters for the fractional memory split operator. More...

Typedefs
typedef struct FractionalMemoryOperatorConfig	FractionalMemoryOperatorConfig
	Configuration parameters for the fractional memory split operator.

Functions
SimResult	sim_add_fractional_memory_operator (struct SimContext *context, const FractionalMemoryOperatorConfig *config, size_t *out_index)
	Register a fractional memory operator with the provided configuration.
SimResult	sim_fractional_memory_config (struct SimContext *context, size_t operator_index, FractionalMemoryOperatorConfig *out_config)
	Copy the current fractional memory configuration from a registered operator.
SimResult	sim_fractional_memory_update (struct SimContext *context, size_t operator_index, const FractionalMemoryOperatorConfig *config)
	Replace or renormalize an existing fractional memory operator.

Detailed Description

History-based fractional memory operator applying a fractional derivative of order q.

Maintains a rolling memory of past states to approximate fractional dynamics. Supports real and complex fields through component-wise accumulation.

Function Documentation

sim_add_fractional_memory_operator()

SimResult sim_add_fractional_memory_operator	(	struct SimContext *	context,
		const FractionalMemoryOperatorConfig *	config,
		size_t *	out_index
	)

Register a fractional memory operator with the provided configuration.

Parameters

	context	Simulation context that will own the operator.
	config	Optional operator configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, target-field validation, allocation, coefficient setup, or registration.

sim_fractional_memory_config()

SimResult sim_fractional_memory_config	(	struct SimContext *	context,
		size_t	operator_index,
		FractionalMemoryOperatorConfig *	out_config
	)

Copy the current fractional memory configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_fractional_memory_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no memory state.

sim_fractional_memory_update()

SimResult sim_fractional_memory_update	(	struct SimContext *	context,
		size_t	operator_index,
		const FractionalMemoryOperatorConfig *	config
	)

Replace or renormalize an existing fractional memory operator.

Passing NULL for config keeps the current configuration and reapplies normalization. If order or memory_steps change, coefficients/history are marked for rebuild before the next apply.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the fractional memory operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code from lookup, field validation, coefficient setup, or state validation.
