gabor.h File Reference

Gabor kernel stimulus (Gaussian-windowed sinusoid) for 1D/2D fields. More...

#include "coords.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

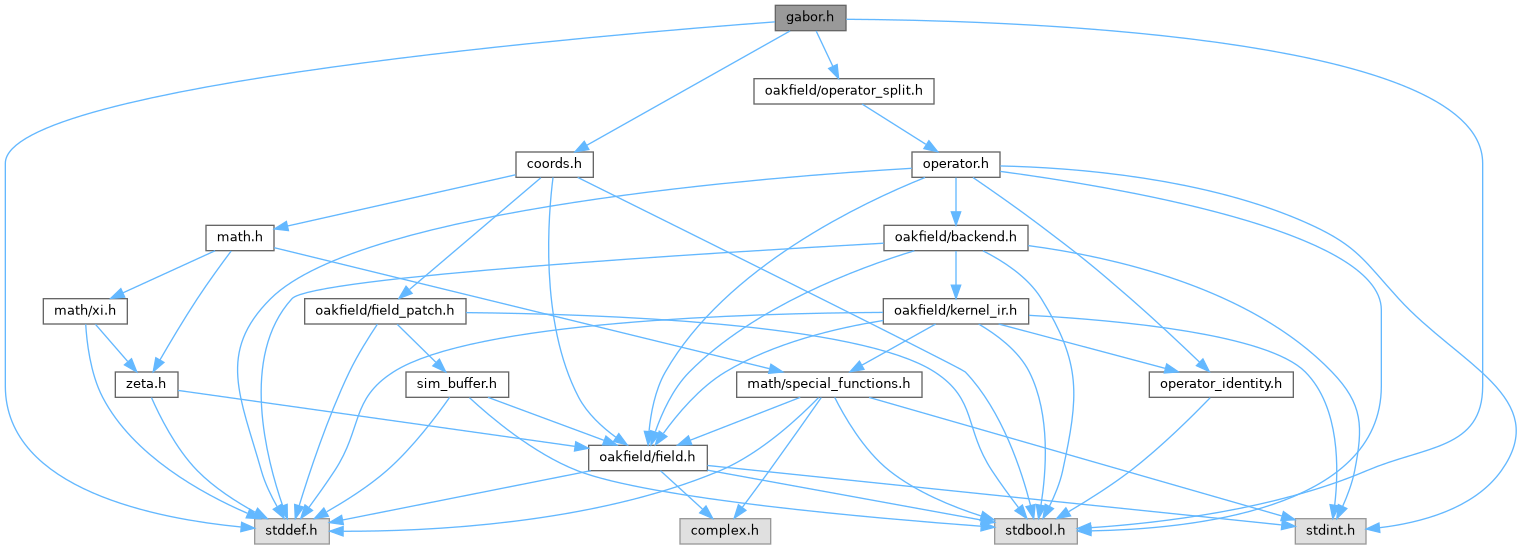

Include dependency graph for gabor.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusGaborConfig
	Configuration for a Gaussian-windowed Gabor kernel stimulus. More...

Typedefs
typedef struct SimStimulusGaborConfig	SimStimulusGaborConfig
	Configuration for a Gaussian-windowed Gabor kernel stimulus.

Functions
SimResult	sim_add_stimulus_gabor_operator (struct SimContext *context, const SimStimulusGaborConfig *config, size_t *out_index)
	Register a Gaussian-windowed Gabor stimulus operator.
SimResult	sim_stimulus_gabor_config (struct SimContext *context, size_t operator_index, SimStimulusGaborConfig *out_config)
	Copy the current Gabor configuration from a registered operator.
SimResult	sim_stimulus_gabor_update (struct SimContext *context, size_t operator_index, const SimStimulusGaborConfig *config)
	Replace or renormalize a registered Gabor stimulus configuration.

Detailed Description

Gabor kernel stimulus (Gaussian-windowed sinusoid) for 1D/2D fields.

Supports real and complex fields. For complex fields, the kernel is written with an additional global phase rotation.

Function Documentation

sim_add_stimulus_gabor_operator()

SimResult sim_add_stimulus_gabor_operator	(	struct SimContext *	context,
		const SimStimulusGaborConfig *	config,
		size_t *	out_index
	)

Register a Gaussian-windowed Gabor stimulus operator.

The implementation copies and normalizes config, prepares envelope storage, and registers the operator on the configured target field.

Parameters

	context	Simulation context that will own the operator.
	config	Optional Gabor configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, buffer setup, or split-operator registration.

sim_stimulus_gabor_config()

SimResult sim_stimulus_gabor_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusGaborConfig *	out_config
	)

Copy the current Gabor configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_gabor_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_gabor_update()

SimResult sim_stimulus_gabor_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusGaborConfig *	config
	)

Replace or renormalize a registered Gabor stimulus configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update refreshes envelope and symbolic state, then invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the Gabor operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup, buffer setup, or state validation fails.
