gaussian.h File Reference

Traveling Gaussian envelope stimulus for modulating fields. More...

#include "coords.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

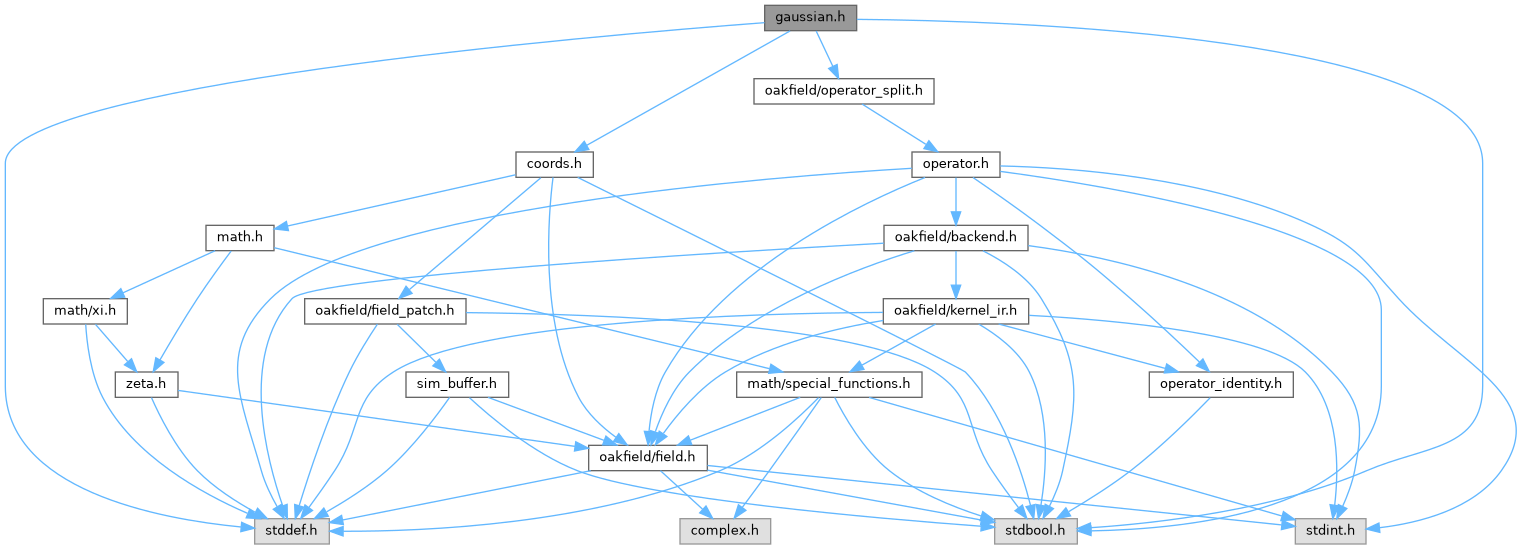

Include dependency graph for gaussian.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusGaussianConfig
	Parameterization for Gaussian-envelope stimulus operators. More...

Typedefs
typedef struct SimStimulusGaussianConfig	SimStimulusGaussianConfig
	Parameterization for Gaussian-envelope stimulus operators.

Functions
SimResult	sim_add_stimulus_gaussian_operator (struct SimContext *context, const SimStimulusGaussianConfig *config, size_t *out_index)
	Register a traveling Gaussian-envelope stimulus operator.
SimResult	sim_stimulus_gaussian_config (struct SimContext *context, size_t operator_index, SimStimulusGaussianConfig *out_config)
	Copy the current Gaussian configuration from a registered operator.
SimResult	sim_stimulus_gaussian_update (struct SimContext *context, size_t operator_index, const SimStimulusGaussianConfig *config)
	Replace or renormalize a registered Gaussian stimulus configuration.

Detailed Description

Traveling Gaussian envelope stimulus for modulating fields.

Can target real or complex fields; complex writes support phase rotation.

Function Documentation

sim_add_stimulus_gaussian_operator()

SimResult sim_add_stimulus_gaussian_operator	(	struct SimContext *	context,
		const SimStimulusGaussianConfig *	config,
		size_t *	out_index
	)

Register a traveling Gaussian-envelope stimulus operator.

The implementation copies and normalizes config, prepares any required buffers, and registers the operator on the configured target field.

Parameters

	context	Simulation context that will own the operator.
	config	Optional Gaussian configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, buffer setup, or split-operator registration.

sim_stimulus_gaussian_config()

SimResult sim_stimulus_gaussian_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusGaussianConfig *	out_config
	)

Copy the current Gaussian configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_gaussian_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_gaussian_update()

SimResult sim_stimulus_gaussian_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusGaussianConfig *	config
	)

Replace or renormalize a registered Gaussian stimulus configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update refreshes runtime state and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the Gaussian operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup, buffer setup, or state validation fails.
