hysteretic.h File Reference

Hysteretic operator with Schmitt, play, and Bouc-Wen modes. Supports matching real or complex input/output fields. More...

#include "oakfield/operator_split.h"

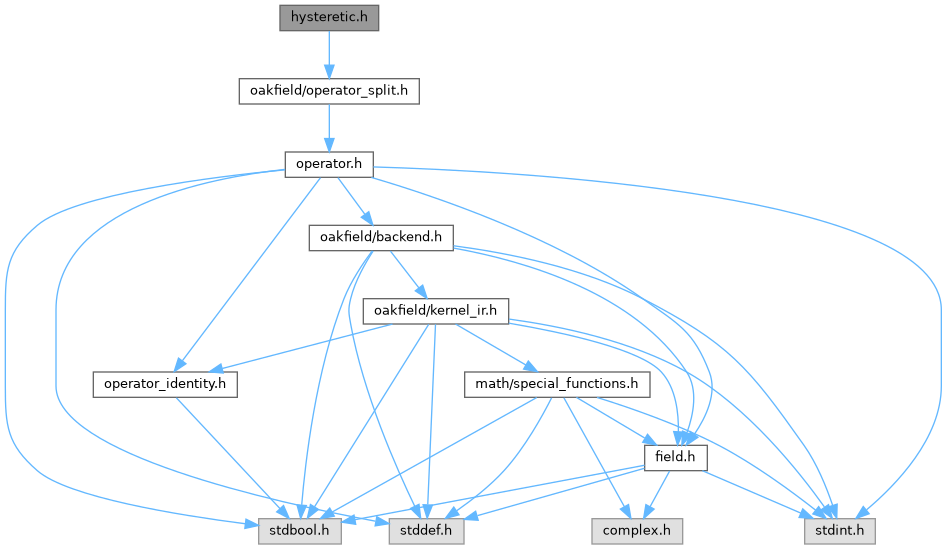

Include dependency graph for hysteretic.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimHystereticOperatorConfig
	Configuration for hysteretic operators. More...

Typedefs
typedef enum SimHystereticMode	SimHystereticMode
	Hysteresis mode selection.
typedef enum SimHystereticThresholdMode	SimHystereticThresholdMode
	Threshold specification strategy.
typedef enum SimHystereticInputMode	SimHystereticInputMode
	Input preprocessing options.
typedef struct SimHystereticOperatorConfig	SimHystereticOperatorConfig
	Configuration for hysteretic operators.

Enumerations
enum	SimHystereticMode { SIM_HYSTERETIC_MODE_SCHMITT = 0 , SIM_HYSTERETIC_MODE_PLAY , SIM_HYSTERETIC_MODE_BOUC_WEN }
	Hysteresis mode selection. More...
enum	SimHystereticThresholdMode { SIM_HYSTERETIC_THRESHOLD_BOUNDS = 0 , SIM_HYSTERETIC_THRESHOLD_CENTER_WIDTH }
	Threshold specification strategy. More...
enum	SimHystereticInputMode { SIM_HYSTERETIC_INPUT_DIRECT = 0 , SIM_HYSTERETIC_INPUT_ABS , SIM_HYSTERETIC_INPUT_SQUARED }
	Input preprocessing options. More...

Functions
SimResult	sim_add_hysteretic_operator (struct SimContext *context, const SimHystereticOperatorConfig *config, size_t *out_index)
	Registers a hysteretic operator instance.
SimResult	sim_hysteretic_config (struct SimContext *context, size_t operator_index, SimHystereticOperatorConfig *out_config)
	Retrieve the configuration currently bound to a hysteretic operator.
SimResult	sim_hysteretic_update (struct SimContext *context, size_t operator_index, const SimHystereticOperatorConfig *config)
	Update an existing hysteretic operator in-place.

Detailed Description

Hysteretic operator with Schmitt, play, and Bouc-Wen modes. Supports matching real or complex input/output fields.

Enumeration Type Documentation

SimHystereticInputMode

enum SimHystereticInputMode

Input preprocessing options.

Enumerator
SIM_HYSTERETIC_INPUT_DIRECT	Use input samples directly.
SIM_HYSTERETIC_INPUT_ABS	Use absolute value of input.
SIM_HYSTERETIC_INPUT_SQUARED	Use squared input.

SimHystereticMode

enum SimHystereticMode

Hysteresis mode selection.

Enumerator
SIM_HYSTERETIC_MODE_SCHMITT	Binary Schmitt trigger.
SIM_HYSTERETIC_MODE_PLAY	Continuous play/deadband operator.
SIM_HYSTERETIC_MODE_BOUC_WEN	Dynamic Bouc-Wen hysteresis model.

SimHystereticThresholdMode

enum SimHystereticThresholdMode

Threshold specification strategy.

Enumerator
SIM_HYSTERETIC_THRESHOLD_BOUNDS	Use (threshold_low, threshold_high).
SIM_HYSTERETIC_THRESHOLD_CENTER_WIDTH	Use (threshold_center, threshold_width).

Function Documentation

sim_add_hysteretic_operator()

SimResult sim_add_hysteretic_operator	(	struct SimContext *	context,
		const SimHystereticOperatorConfig *	config,
		size_t *	out_index
	)

Registers a hysteretic operator instance.

Parameters

	context	Simulation context that will own the operator.
	config	Optional hysteretic configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, field compatibility checks, allocation, or split registration.

sim_hysteretic_config()

SimResult sim_hysteretic_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimHystereticOperatorConfig *	out_config
	)

Retrieve the configuration currently bound to a hysteretic operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_hysteretic_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no hysteretic state.

sim_hysteretic_update()

SimResult sim_hysteretic_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimHystereticOperatorConfig *	config
	)

Update an existing hysteretic operator in-place.

config is required. A successful update normalizes the replacement, validates field compatibility, resets internal history initialization, and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the hysteretic operator to update.
config	Replacement hysteretic configuration.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, lookup, field compatibility checks, or state validation.
