integrator.h File Reference

Base definitions for time-integration schemes in libsimintegrators. More...

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include "oakfield/field.h"

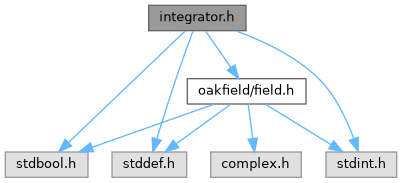

Include dependency graph for integrator.h:

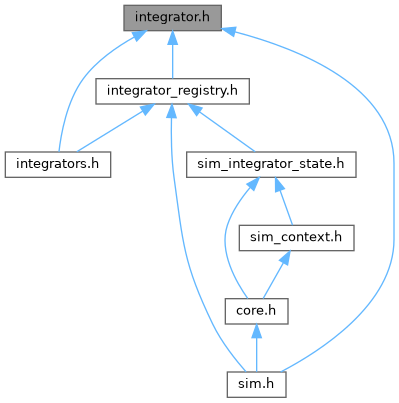

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	IntegratorConfig
	Configuration parameters for integrator construction. More...
struct	Integrator
	Integrator instance shared across schemes. More...

Typedefs
typedef SimField	Field
	Alias matching the simulation field type used by integrator APIs.
typedef SimResult(*	IntegratorDriftFn) (struct Integrator *integrator, const Field *field, const double *state, double *out_derivative, size_t count)
	Drift callback computing deterministic derivatives.
typedef SimResult(*	IntegratorNoiseFn) (struct Integrator *integrator, const Field *field, double *out_noise, size_t count)
	Hook producing stochastic source samples.
typedef void(*	IntegratorDestroyFn) (struct Integrator *integrator)
	Optional teardown hook for integrator-owned state.
typedef void(*	IntegratorStepFn) (struct Integrator *integrator, Field *field, double dt)
	Integrator step function signature.
typedef struct IntegratorConfig	IntegratorConfig
	Configuration parameters for integrator construction.
typedef struct Integrator	Integrator
	Integrator instance shared across schemes.

Functions
SimResult	integrator_configure (Integrator *integrator, const char *name, IntegratorStepFn step_fn, const IntegratorConfig *config)
	Initialize an integrator object.
void	integrator_destroy (Integrator *integrator)
	Release resources held by an integrator.
SimResult	integrator_ensure_workspace (Integrator *integrator, size_t buffers, size_t elements)
	Ensure scratch buffers are available.
double *	integrator_buffer (Integrator *integrator, size_t index)
	Access a real workspace buffer.
size_t	integrator_state_length (const Field *field)
	Compute the scalar length of a field.
double	integrator_clamp_dt (const Integrator *integrator, double dt)
	Clamp a timestep to configured bounds.
double	integrator_suggest_dt (const Integrator *integrator, double dt, double error_norm, double method_order)
	Suggest a new timestep based on an error estimate.
double	integrator_reject_dt (const Integrator *integrator, double dt, double error_norm, double method_order)
	Shrink a rejected timestep using the observed error when available.
double	integrator_measure_error (const double *a, const double *b, size_t count)
	Measure scaled infinity-norm error between two real state vectors.
double	integrator_rng_normal (Integrator *integrator)
	Generate a standard normal variate using the integrator RNG.
uint64_t	integrator_workspace_bytes (const Integrator *integrator)
	Report allocated workspace bytes owned by the integrator buffers.
uint64_t	integrator_drift_scratch_bytes (const Integrator *integrator)
	Report reusable drift scratch bytes owned by the integrator.
void	integrator_apply_stochastic (Integrator *integrator, Field *field, double *scratch, size_t count, double dt)
	Apply stochastic increments to the field when enabled.
double	integrator_last_step (const Integrator *integrator)
	Retrieve the timestep used by the previous update.
double	integrator_next_step (const Integrator *integrator)
	Retrieve the suggested timestep for the next call.
double	integrator_measure_error_complex (const SimComplexDouble *a, const SimComplexDouble *b, size_t n)
	Measure scaled RMS error between two complex state vectors.
SimComplexDouble *	integrator_buffer_complex (Integrator *integrator, unsigned int index)
	Access a complex workspace buffer.
SimResult	integrator_noise_gaussian (struct Integrator *integrator, const Field *field, double *out_noise, size_t count)
	Fill a buffer with zero-mean, unit-variance Gaussian noise samples.
SimResult	integrator_noise_uniform (struct Integrator *integrator, const Field *field, double *out_noise, size_t count)
	Fill a buffer with zero-mean, unit-variance uniform noise samples.
SimResult	integrator_noise_laplace (struct Integrator *integrator, const Field *field, double *out_noise, size_t count)
	Fill a buffer with zero-mean, unit-variance Laplace noise samples.
double	integrator_last_error (const Integrator *integrator)
	Retrieve the error norm reported by the last step.
SimResult	integrator_context_drift (Integrator *integrator, const Field *field, const double *state, double *out_derivative, size_t count)
	Drift helper evaluating the current context plan side-effect free.
SimResult	integrator_step_context (Integrator *integrator, struct SimContext *context, struct SimBackend *backend, double dt)
	Step a context-backed integrator without advancing context time.

Detailed Description

Base definitions for time-integration schemes in libsimintegrators.

Integrators advance one target field by repeatedly evaluating a drift callback, optionally adding stochastic increments, and recording timestep diagnostics for adaptive controllers and runtime reporting. The public contract uses scalar counts: real fields have one scalar per element, while complex fields have one SimComplexDouble per element and are passed through callback buffers as double* storage with real/imag components preserved by the field representation.

Typedef Documentation

Integrator

typedef struct Integrator Integrator

Integrator instance shared across schemes.

The struct is public so host runtimes can inspect diagnostics and attach context userdata. Buffers and drift snapshots are owned by the integrator after successful configuration and are released by integrator_destroy().

IntegratorConfig

typedef struct IntegratorConfig IntegratorConfig

Configuration parameters for integrator construction.

Zero-initialized optional fields select the defaults in integrator_configure(). The drift callback is required for all concrete integrators.

IntegratorDestroyFn

typedef void(* IntegratorDestroyFn) (struct Integrator *integrator)

Optional teardown hook for integrator-owned state.

Parameters

integrator

Integrator being destroyed; the hook may clear userdata.

IntegratorDriftFn

typedef SimResult(* IntegratorDriftFn) (struct Integrator *integrator, const Field *field, const double *state, double *out_derivative, size_t count)

Drift callback computing deterministic derivatives.

The callback must evaluate the derivative at state without taking ownership of any buffer. Real states contain count doubles. Complex states are passed as storage compatible with SimComplexDouble[count], cast through double* for the shared callback signature.

Parameters

	integrator	Calling integrator instance.
	field	Field metadata associated with the state.
	state	Read-only state vector owned by the caller.
[out]	out_derivative	Output buffer receiving d(state)/dt.
	count	Number of real entries or complex entries in the state vector.

Returns

SIM_RESULT_OK on success, or an error code propagated by the stepper.

IntegratorNoiseFn

typedef SimResult(* IntegratorNoiseFn) (struct Integrator *integrator, const Field *field, double *out_noise, size_t count)

Hook producing stochastic source samples.

The hook fills caller-owned storage with unit-variance, zero-mean samples before stochastic_strength * sqrt(dt) scaling is applied.

Parameters

	integrator	Calling integrator instance.
	field	Field metadata associated with the state.
[out]	out_noise	Output buffer receiving count samples.
	count	Number of scalar elements to populate.

Returns

SIM_RESULT_OK on success, or an error code when sampling fails.

IntegratorStepFn

typedef void(* IntegratorStepFn) (struct Integrator *integrator, Field *field, double dt)

Integrator step function signature.

The implementation updates field in place and records last_step, last_error, attempt counters, and the next current_dt suggestion.

Parameters

integrator	Configured integrator instance.
field	Target field advanced in place.
dt	Requested timestep; nonpositive values let the integrator use its current timestep suggestion.

Function Documentation

integrator_apply_stochastic()

void integrator_apply_stochastic	(	Integrator *	integrator,
		Field *	field,
		double *	scratch,
		size_t	count,
		double	dt
	)

Apply stochastic increments to the field when enabled.

Built-in real noise laws are Gaussian, uniform, and Laplace, all normalized to unit variance before scaling by stochastic_strength * sqrt(dt). Complex storage currently receives Gaussian real/imag samples.

Parameters

integrator	Integrator instance.
field	Field to modify in place.
scratch	Scratch buffer to reuse for noise samples.
count	Number of real entries or complex entries in the state.
dt	Duration of the realized timestep.

integrator_buffer()

double * integrator_buffer	(	Integrator *	integrator,
		size_t	index
	)

Access a real workspace buffer.

Parameters

integrator	Integrator instance.
index	Zero-based buffer index.

Returns

Pointer to the buffer, or NULL when index is unavailable.

integrator_buffer_complex()

SimComplexDouble * integrator_buffer_complex	(	Integrator *	integrator,
		unsigned int	index
	)

Access a complex workspace buffer.

Parameters

integrator	Integrator instance.
index	Zero-based buffer index.

Returns

Pointer to complex scratch storage, or NULL when unavailable.

integrator_clamp_dt()

double integrator_clamp_dt	(	const Integrator *	integrator,
		double	dt
	)

Clamp a timestep to configured bounds.

Parameters

integrator	Integrator instance; NULL leaves dt unchanged.
dt	Proposed timestep.

Returns

Timestep constrained to [min_dt, max_dt] when possible.

integrator_configure()

SimResult integrator_configure	(	Integrator *	integrator,
		const char *	name,
		IntegratorStepFn	step_fn,
		const IntegratorConfig *	config
	)

Initialize an integrator object.

Parameters

[out]	integrator	Target integrator; overwritten on success.
	name	Human-readable identifier copied into Integrator::name.
	step_fn	Step function implementation; must be non-NULL.
	config	Configuration parameters, or NULL to use defaults.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT when required pointers or drift callbacks are missing, or SIM_RESULT_OUT_OF_MEMORY when preallocated workspace cannot be prepared.

integrator_context_drift()

SimResult integrator_context_drift	(	Integrator *	integrator,
		const Field *	field,
		const double *	state,
		double *	out_derivative,
		size_t	count
	)

Drift helper evaluating the current context plan side-effect free.

The integrator userdata must point at a SimContext. The helper snapshots context fields, writes state into field, executes the prepared plan, and restores the original field data before returning the finite-difference drift.

Parameters

	integrator	Integrator whose userdata is a SimContext*.
	field	Target field metadata.
	state	Candidate state vector owned by the caller.
[out]	out_derivative	Buffer receiving the context-derived derivative.
	count	Number of real entries or complex entries in state.

Returns

SIM_RESULT_OK, SIM_RESULT_INVALID_ARGUMENT, or an error propagated from context plan preparation/execution.

integrator_destroy()

void integrator_destroy

(

Integrator *

integrator

)

Release resources held by an integrator.

Calls the optional destroy hook, frees scratch buffers and drift snapshots, and zeroes the struct. Passing NULL is a no-op.

Parameters

integrator

Integrator to destroy; may be NULL.

integrator_drift_scratch_bytes()

uint64_t integrator_drift_scratch_bytes

(

const Integrator *

integrator

)

Report reusable drift scratch bytes owned by the integrator.

Parameters

integrator

Integrator to inspect.

Returns

Drift scratch and snapshot footprint in bytes, or 0 for NULL.

integrator_ensure_workspace()

SimResult integrator_ensure_workspace	(	Integrator *	integrator,
		size_t	buffers,
		size_t	elements
	)

Ensure scratch buffers are available.

Buffers are aligned for SIMD-friendly field kernels and sized for either real doubles or SimComplexDouble entries depending on integrator->is_complex.

Parameters

integrator	Integrator instance.
buffers	Number of buffers required; must be greater than zero.
elements	Number of real or complex entries per buffer.

Returns

SIM_RESULT_OK when the workspace is ready, SIM_RESULT_INVALID_ARGUMENT for invalid input, or SIM_RESULT_OUT_OF_MEMORY.

integrator_last_error()

double integrator_last_error

(

const Integrator *

integrator

)

Retrieve the error norm reported by the last step.

Parameters

integrator

Integrator to inspect.

Returns

Last normalized error estimate, or 0 for NULL.

integrator_last_step()

double integrator_last_step

(

const Integrator *

integrator

)

Retrieve the timestep used by the previous update.

Parameters

integrator

Integrator to inspect.

Returns

Last realized timestep, or 0 for NULL.

integrator_measure_error()

double integrator_measure_error	(	const double *	a,
		const double *	b,
		size_t	count
	)

Measure scaled infinity-norm error between two real state vectors.

Each component is normalized by max(abs(a[i]), abs(b[i]), 1).

Parameters

a	First real state vector.
b	Second real state vector.
count	Number of double entries.

Returns

Maximum normalized component difference, or 0 for invalid/empty input.

integrator_measure_error_complex()

double integrator_measure_error_complex	(	const SimComplexDouble *	a,
		const SimComplexDouble *	b,
		size_t	n
	)

Measure scaled RMS error between two complex state vectors.

Component differences use squared complex magnitude and are normalized by max(|a[i]|^2, |b[i]|^2, 1) before the mean square root is taken.

Parameters

a	First complex state vector.
b	Second complex state vector.
n	Number of complex entries.

Returns

Normalized RMS complex difference, or 0 for invalid/empty input.

integrator_next_step()

double integrator_next_step

(

const Integrator *

integrator

)

Retrieve the suggested timestep for the next call.

Parameters

integrator

Integrator to inspect.

Returns

Current timestep suggestion, or 0 for NULL.

integrator_noise_gaussian()

SimResult integrator_noise_gaussian	(	struct Integrator *	integrator,
		const Field *	field,
		double *	out_noise,
		size_t	count
	)

Fill a buffer with zero-mean, unit-variance Gaussian noise samples.

Parameters

	integrator	Integrator containing RNG state.
	field	Field associated with the samples; currently informational.
[out]	out_noise	Buffer receiving count samples.
	count	Number of samples to generate.

Returns

SIM_RESULT_OK, or SIM_RESULT_INVALID_ARGUMENT for NULL inputs.

integrator_noise_laplace()

SimResult integrator_noise_laplace	(	struct Integrator *	integrator,
		const Field *	field,
		double *	out_noise,
		size_t	count
	)

Fill a buffer with zero-mean, unit-variance Laplace noise samples.

Parameters

	integrator	Integrator containing RNG state.
	field	Field associated with the samples; currently informational.
[out]	out_noise	Buffer receiving count samples.
	count	Number of samples to generate.

Returns

SIM_RESULT_OK, or SIM_RESULT_INVALID_ARGUMENT for NULL inputs.

integrator_noise_uniform()

SimResult integrator_noise_uniform	(	struct Integrator *	integrator,
		const Field *	field,
		double *	out_noise,
		size_t	count
	)

Fill a buffer with zero-mean, unit-variance uniform noise samples.

Samples are drawn from [-sqrt(3), sqrt(3)].

Parameters

	integrator	Integrator containing RNG state.
	field	Field associated with the samples; currently informational.
[out]	out_noise	Buffer receiving count samples.
	count	Number of samples to generate.

Returns

SIM_RESULT_OK, or SIM_RESULT_INVALID_ARGUMENT for NULL inputs.

integrator_reject_dt()

double integrator_reject_dt	(	const Integrator *	integrator,
		double	dt,
		double	error_norm,
		double	method_order
	)

Shrink a rejected timestep using the observed error when available.

Falls back to a conservative halving strategy if the controller would not reduce the step or the estimate is not finite.

Parameters

integrator	Integrator instance.
dt	Rejected timestep.
error_norm	Dimensionless normalized error estimate.
method_order	Order of the embedded error estimator.

Returns

Smaller timestep clamped to the configured timestep bounds.

integrator_rng_normal()

double integrator_rng_normal

(

Integrator *

integrator

)

Generate a standard normal variate using the integrator RNG.

Parameters

integrator

Integrator containing RNG state.

Returns

One zero-mean, unit-variance Gaussian sample, or 0 for NULL input.

integrator_state_length()

size_t integrator_state_length

(

const Field *

field

)

Compute the scalar length of a field.

Parameters

field

Field instance.

Returns

Number of real entries for real fields or complex entries for complex fields; returns 0 for NULL, empty, or unsupported element sizes.

integrator_step_context()

SimResult integrator_step_context	(	Integrator *	integrator,
		struct SimContext *	context,
		struct SimBackend *	backend,
		double	dt
	)

Step a context-backed integrator without advancing context time.

This updates field state and integrator metadata only. Call sim_context_accept_step after a successful step if you want the context clock and step index to advance. The backend parameter is retained for API compatibility and is not used by the current implementation.

Parameters

integrator	Integrator to execute.
context	Simulation context containing the target field.
backend	Optional backend pointer reserved for future dispatch.
dt	Requested timestep passed to the integrator step function.

Returns

SIM_RESULT_OK, SIM_RESULT_INVALID_ARGUMENT, SIM_RESULT_NOT_FOUND, SIM_RESULT_OUT_OF_MEMORY in debug invariant tracking, or a plan preparation error from the context.

integrator_suggest_dt()

double integrator_suggest_dt	(	const Integrator *	integrator,
		double	dt,
		double	error_norm,
		double	method_order
	)

Suggest a new timestep based on an error estimate.

The controller applies the configured tolerance, safety factor, and growth clamps. Non-adaptive integrators simply return the clamped current timestep.

Parameters

integrator	Integrator instance.
dt	Current timestep.
error_norm	Dimensionless normalized error estimate.
method_order	Order of the embedded error estimator; values below 1 are treated as first order.

Returns

Suggested timestep for the next iteration, clamped to integrator bounds.

integrator_workspace_bytes()

uint64_t integrator_workspace_bytes

(

const Integrator *

integrator

)

Report allocated workspace bytes owned by the integrator buffers.

Parameters

integrator

Integrator to inspect.

Returns

Buffer footprint in bytes, or 0 for NULL.
