laplace_beltrami.h File Reference

Analytic Laplace-Beltrami eigenmode stimulus on simple manifolds. More...

#include "coords.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

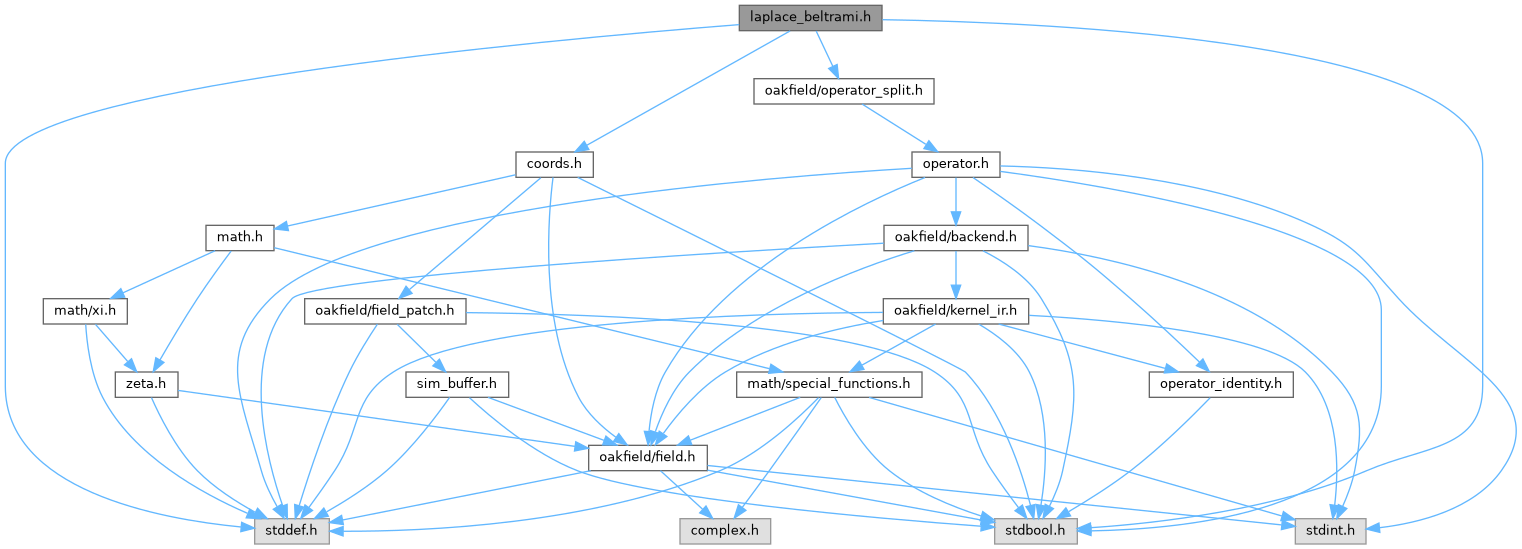

Include dependency graph for laplace_beltrami.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusLaplaceBeltramiConfig
	Configuration for analytic Laplace-Beltrami eigenmode stimuli. More...

Typedefs
typedef enum SimStimulusLaplaceBeltramiManifold	SimStimulusLaplaceBeltramiManifold
	Analytic manifold families supported by Laplace-Beltrami stimuli.
typedef struct SimStimulusLaplaceBeltramiConfig	SimStimulusLaplaceBeltramiConfig
	Configuration for analytic Laplace-Beltrami eigenmode stimuli.

Enumerations
enum	SimStimulusLaplaceBeltramiManifold { SIM_STIMULUS_LAPLACE_BELTRAMI_RECTANGLE = 0 , SIM_STIMULUS_LAPLACE_BELTRAMI_FLAT_TORUS , SIM_STIMULUS_LAPLACE_BELTRAMI_CYLINDER }
	Analytic manifold families supported by Laplace-Beltrami stimuli. More...

Functions
SimResult	sim_add_stimulus_laplace_beltrami_operator (struct SimContext *context, const SimStimulusLaplaceBeltramiConfig *config, size_t *out_index)
	Register an analytic Laplace-Beltrami eigenmode stimulus operator.
SimResult	sim_stimulus_laplace_beltrami_config (struct SimContext *context, size_t operator_index, SimStimulusLaplaceBeltramiConfig *out_config)
	Copy the current Laplace-Beltrami configuration from a registered operator.
SimResult	sim_stimulus_laplace_beltrami_update (struct SimContext *context, size_t operator_index, const SimStimulusLaplaceBeltramiConfig *config)
	Replace or renormalize a registered Laplace-Beltrami configuration.

Detailed Description

Analytic Laplace-Beltrami eigenmode stimulus on simple manifolds.

Evaluates a local chart (u, v) and injects a manifold eigenmode A * Phi_{m,n}(u,v; M) * exp(i * (-omega * (t + t_0) + phi)), where M is one of:

• rectangle: centered Dirichlet chart on [-L_u/2, L_u/2] x [-L_v/2, L_v/2]
• flat_torus: periodic chart with periods L_u and L_v
• cylinder: periodic in u with period L_u, Dirichlet in v on [-L_v/2, L_v/2]

Real fields receive the real component. Complex fields receive the full complex mode with an additional global rotation.

Enumeration Type Documentation

SimStimulusLaplaceBeltramiManifold

enum SimStimulusLaplaceBeltramiManifold

Analytic manifold families supported by Laplace-Beltrami stimuli.

Enumerator
SIM_STIMULUS_LAPLACE_BELTRAMI_RECTANGLE	Rectangular Dirichlet chart.
SIM_STIMULUS_LAPLACE_BELTRAMI_FLAT_TORUS	Periodic flat torus chart.
SIM_STIMULUS_LAPLACE_BELTRAMI_CYLINDER	Cylinder chart.

Function Documentation

sim_add_stimulus_laplace_beltrami_operator()

SimResult sim_add_stimulus_laplace_beltrami_operator	(	struct SimContext *	context,
		const SimStimulusLaplaceBeltramiConfig *	config,
		size_t *	out_index
	)

Register an analytic Laplace-Beltrami eigenmode stimulus operator.

The implementation copies and normalizes config, then registers a split operator that evaluates the selected manifold eigenmode on the target field.

Parameters

	context	Simulation context that will own the operator.
	config	Optional Laplace-Beltrami configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, or split-operator registration.

sim_stimulus_laplace_beltrami_config()

SimResult sim_stimulus_laplace_beltrami_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusLaplaceBeltramiConfig *	out_config
	)

Copy the current Laplace-Beltrami configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_laplace_beltrami_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_laplace_beltrami_update()

SimResult sim_stimulus_laplace_beltrami_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusLaplaceBeltramiConfig *	config
	)

Replace or renormalize a registered Laplace-Beltrami configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update refreshes symbolic state and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the Laplace-Beltrami operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup or state validation fails.
