laplacian.h File Reference

Finite-difference Laplacian operator for 1D/2D fields. More...

#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

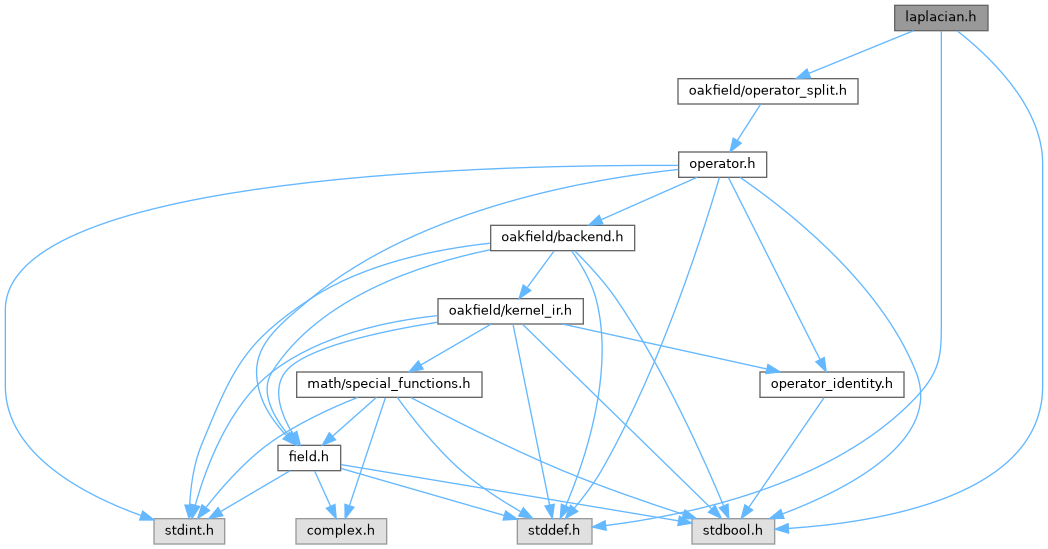

Include dependency graph for laplacian.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimLaplacianOperatorConfig
	Configuration for a finite-difference Laplacian operator. More...

Macros
#define	SIM_LAPLACIAN_AXIS_AUTO   ((size_t)SIZE_MAX)

Typedefs
typedef enum SimLaplacianStencil	SimLaplacianStencil
	Finite-difference stencils available for Laplacian evaluation.
typedef struct SimLaplacianOperatorConfig	SimLaplacianOperatorConfig
	Configuration for a finite-difference Laplacian operator.

Enumerations
enum	SimLaplacianStencil { SIM_LAPLACIAN_STENCIL_CROSS_2 = 0 , SIM_LAPLACIAN_STENCIL_CROSS_4 , SIM_LAPLACIAN_STENCIL_ISOTROPIC_9 }
	Finite-difference stencils available for Laplacian evaluation. More...

Functions
SimResult	sim_add_laplacian_operator (struct SimContext *context, const SimLaplacianOperatorConfig *config, size_t *out_index)
	Register a finite-difference Laplacian operator.
SimResult	sim_laplacian_config (struct SimContext *context, size_t operator_index, SimLaplacianOperatorConfig *out_config)
	Copy the current Laplacian configuration from a registered operator.
SimResult	sim_laplacian_update (struct SimContext *context, size_t operator_index, const SimLaplacianOperatorConfig *config)
	Replace the configuration of a registered Laplacian operator.

Detailed Description

Finite-difference Laplacian operator for 1D/2D fields.

Enumeration Type Documentation

SimLaplacianStencil

enum SimLaplacianStencil

Finite-difference stencils available for Laplacian evaluation.

Enumerator
SIM_LAPLACIAN_STENCIL_CROSS_2	Second-order cross stencil.
SIM_LAPLACIAN_STENCIL_CROSS_4	Fourth-order cross stencil.
SIM_LAPLACIAN_STENCIL_ISOTROPIC_9	Nine-point isotropic stencil.

Function Documentation

sim_add_laplacian_operator()

SimResult sim_add_laplacian_operator	(	struct SimContext *	context,
		const SimLaplacianOperatorConfig *	config,
		size_t *	out_index
	)

Register a finite-difference Laplacian operator.

Parameters

	context	Simulation context that will own the operator.
	config	Optional Laplacian configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, field compatibility checks, allocation, or split registration.

sim_laplacian_config()

SimResult sim_laplacian_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimLaplacianOperatorConfig *	out_config
	)

Copy the current Laplacian configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_laplacian_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no Laplacian state.

sim_laplacian_update()

SimResult sim_laplacian_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimLaplacianOperatorConfig *	config
	)

Replace the configuration of a registered Laplacian operator.

config is required. The replacement is normalized and field compatibility is checked before storing it.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the Laplacian operator to update.
config	Replacement Laplacian configuration.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, lookup, state validation, or field compatibility checks.
