linear_dissipative.h File Reference

Fractional Laplacian dissipative operator (|k|^alpha spectral damping). More...

#include "oakfield/operator_split.h"

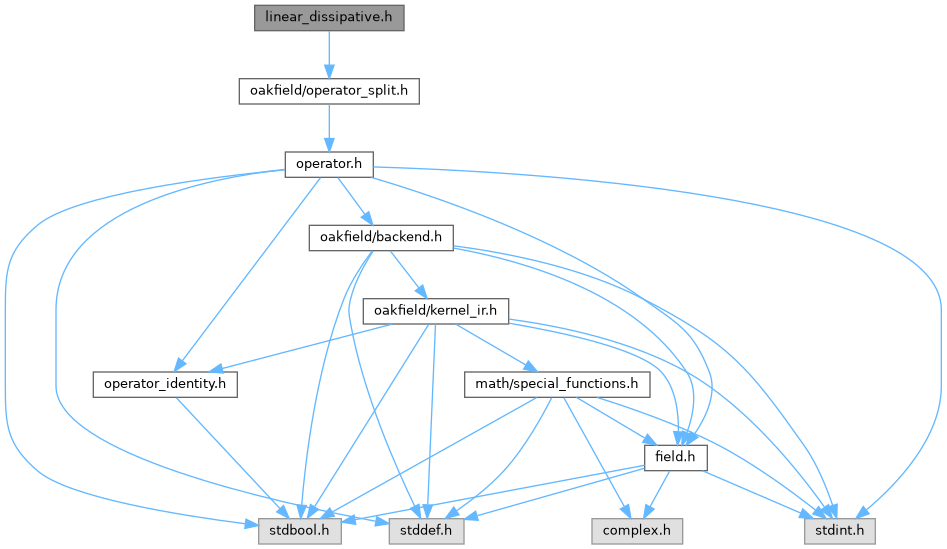

Include dependency graph for linear_dissipative.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	LinearDissipativeOperatorConfig
	Configuration for the fractional Laplacian dissipative operator. More...

Typedefs
typedef struct LinearDissipativeOperatorConfig	LinearDissipativeOperatorConfig
	Configuration for the fractional Laplacian dissipative operator.

Functions
SimResult	sim_add_linear_dissipative_operator (struct SimContext *context, const LinearDissipativeOperatorConfig *config, size_t *out_index)
	Add a fractional Laplacian dissipative operator to the context.
SimResult	sim_linear_dissipative_config (struct SimContext *context, size_t operator_index, LinearDissipativeOperatorConfig *out_config)
	Copy the current dissipative configuration from a registered operator.
SimResult	sim_linear_dissipative_update (struct SimContext *context, size_t operator_index, const LinearDissipativeOperatorConfig *config)
	Replace or renormalize a registered dissipative operator configuration.
SimResult	linear_dissipative_apply (void *state_ptr, struct SimContext *context, struct SimOperator *self, double dt)
	Apply the dissipative split step for an already registered operator state.

Detailed Description

Fractional Laplacian dissipative operator (|k|^alpha spectral damping).

Applies dissipative dynamics via a fractional Laplacian term on matching real or complex fields.

Function Documentation

linear_dissipative_apply()

SimResult linear_dissipative_apply	(	void *	state_ptr,
		struct SimContext *	context,
		struct SimOperator *	self,
		double	dt
	)

Apply the dissipative split step for an already registered operator state.

This is exposed for split descriptors and related operator glue; callers must pass the state object created by sim_add_linear_dissipative_operator().

Parameters

state_ptr	Internal LinearDissipativeOperatorState pointer.
context	Simulation context containing the target field.
self	Operator instance invoking the step.
dt	Substep duration.

Returns

SIM_RESULT_OK on success or an error code from state, field, or FFT evaluation.

sim_add_linear_dissipative_operator()

SimResult sim_add_linear_dissipative_operator	(	struct SimContext *	context,
		const LinearDissipativeOperatorConfig *	config,
		size_t *	out_index
	)

Add a fractional Laplacian dissipative operator to the context.

Parameters

	context	Simulation context that will own the operator.
	config	Optional operator configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, field validation, allocation, FFT plan setup, or registration.

sim_linear_dissipative_config()

SimResult sim_linear_dissipative_config	(	struct SimContext *	context,
		size_t	operator_index,
		LinearDissipativeOperatorConfig *	out_config
	)

Copy the current dissipative configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_linear_dissipative_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no dissipative state.

sim_linear_dissipative_update()

SimResult sim_linear_dissipative_update	(	struct SimContext *	context,
		size_t	operator_index,
		const LinearDissipativeOperatorConfig *	config
	)

Replace or renormalize a registered dissipative operator configuration.

Passing NULL for config keeps the current configuration and reapplies normalization. Changes to alpha or spacing mark spectral coefficients dirty.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the dissipative operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code from lookup, field validation, cache setup, or state validation.
