linear_spectral_fusion.h File Reference

Fused spectral dissipation, dispersion, and global phase operator. More...

#include "oakfield/operator_split.h"

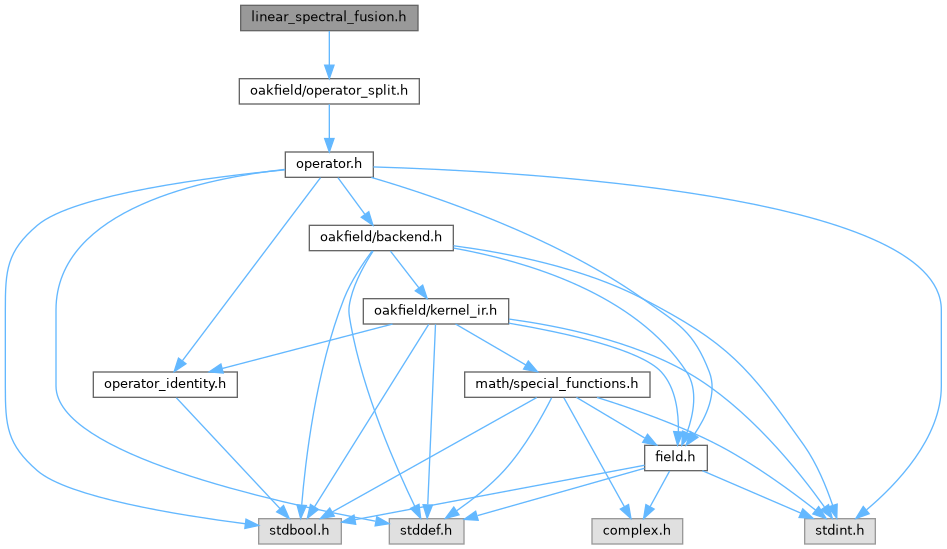

Include dependency graph for linear_spectral_fusion.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	LinearSpectralFusionOperatorConfig
	Configuration for the fused spectral dissipation, dispersion, and phase operator. More...

Typedefs
typedef struct LinearSpectralFusionOperatorConfig	LinearSpectralFusionOperatorConfig
	Configuration for the fused spectral dissipation, dispersion, and phase operator.

Functions
SimResult	sim_add_linear_spectral_fusion_operator (struct SimContext *context, const LinearSpectralFusionOperatorConfig *config, size_t *out_index)
	Register a fused linear spectral operator.
SimResult	sim_linear_spectral_fusion_config (struct SimContext *context, size_t operator_index, LinearSpectralFusionOperatorConfig *out_config)
	Copy the current fused spectral configuration from a registered operator.
SimResult	sim_linear_spectral_fusion_update (struct SimContext *context, size_t operator_index, const LinearSpectralFusionOperatorConfig *config)
	Replace the non-target parameters of a fused spectral operator.

Detailed Description

Fused spectral dissipation, dispersion, and global phase operator.

Function Documentation

sim_add_linear_spectral_fusion_operator()

SimResult sim_add_linear_spectral_fusion_operator	(	struct SimContext *	context,
		const LinearSpectralFusionOperatorConfig *	config,
		size_t *	out_index
	)

Register a fused linear spectral operator.

The operator combines dissipative damping, dispersive phase, and global phase terms in one spectral pass when a split fallback is required.

Parameters

	context	Simulation context that will own the operator.
	config	Optional fusion configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, field validation, allocation, FFT/cache setup, or registration.

sim_linear_spectral_fusion_config()

SimResult sim_linear_spectral_fusion_config	(	struct SimContext *	context,
		size_t	operator_index,
		LinearSpectralFusionOperatorConfig *	out_config
	)

Copy the current fused spectral configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_linear_spectral_fusion_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no fusion state.

sim_linear_spectral_fusion_update()

SimResult sim_linear_spectral_fusion_update	(	struct SimContext *	context,
		size_t	operator_index,
		const LinearSpectralFusionOperatorConfig *	config
	)

Replace the non-target parameters of a fused spectral operator.

config is required. The registered target field is preserved even if config->field_index differs. A successful update refreshes symbolic/kernel constants, marks changed spectral coefficient caches dirty, and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the fused spectral operator to update.
config	Replacement configuration values.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, lookup, field validation, or state validation.
