lissajous.h File Reference

Lissajous ridge stimulus with Gaussian band shaping. More...

#include "coords.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

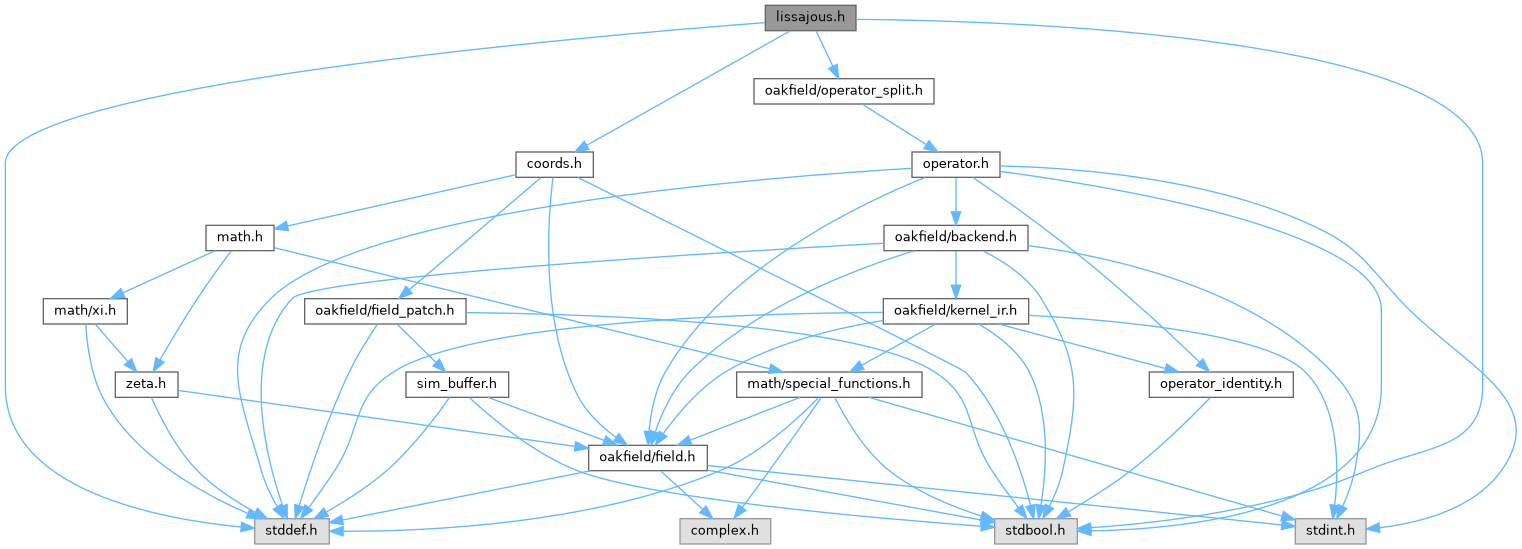

Include dependency graph for lissajous.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusLissajousConfig
	Configuration for a Gaussian-band Lissajous ridge stimulus. More...

Typedefs
typedef struct SimStimulusLissajousConfig	SimStimulusLissajousConfig
	Configuration for a Gaussian-band Lissajous ridge stimulus.

Functions
SimResult	sim_add_stimulus_lissajous_operator (struct SimContext *context, const SimStimulusLissajousConfig *config, size_t *out_index)
	Register a Lissajous ridge stimulus operator.
SimResult	sim_stimulus_lissajous_config (struct SimContext *context, size_t operator_index, SimStimulusLissajousConfig *out_config)
	Copy the current Lissajous configuration from a registered operator.
SimResult	sim_stimulus_lissajous_update (struct SimContext *context, size_t operator_index, const SimStimulusLissajousConfig *config)
	Replace or renormalize a registered Lissajous stimulus configuration.

Detailed Description

Lissajous ridge stimulus with Gaussian band shaping.

Builds a smooth band around the implicit relation sin(theta_x) = coupling * sin(theta_y) + bias and modulates that band by a carrier phase 0.5 * (theta_x + theta_y).

In separable coord mode, theta_x and theta_y sample the X/Y axes independently. Other coord modes collapse to a shared scalar coordinate.

Function Documentation

sim_add_stimulus_lissajous_operator()

SimResult sim_add_stimulus_lissajous_operator	(	struct SimContext *	context,
		const SimStimulusLissajousConfig *	config,
		size_t *	out_index
	)

Register a Lissajous ridge stimulus operator.

The implementation copies and normalizes config, then registers a split operator that writes the Gaussian band around the implicit Lissajous relation.

Parameters

	context	Simulation context that will own the operator.
	config	Optional Lissajous configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, or split-operator registration.

sim_stimulus_lissajous_config()

SimResult sim_stimulus_lissajous_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusLissajousConfig *	out_config
	)

Copy the current Lissajous configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_lissajous_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_lissajous_update()

SimResult sim_stimulus_lissajous_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusLissajousConfig *	config
	)

Replace or renormalize a registered Lissajous stimulus configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update refreshes symbolic state and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the Lissajous operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup or state validation fails.
