log_spectral_grid.h File Reference

Log-frequency spectral grid stimulus with explicit coordinate controls. More...

#include "coords.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>

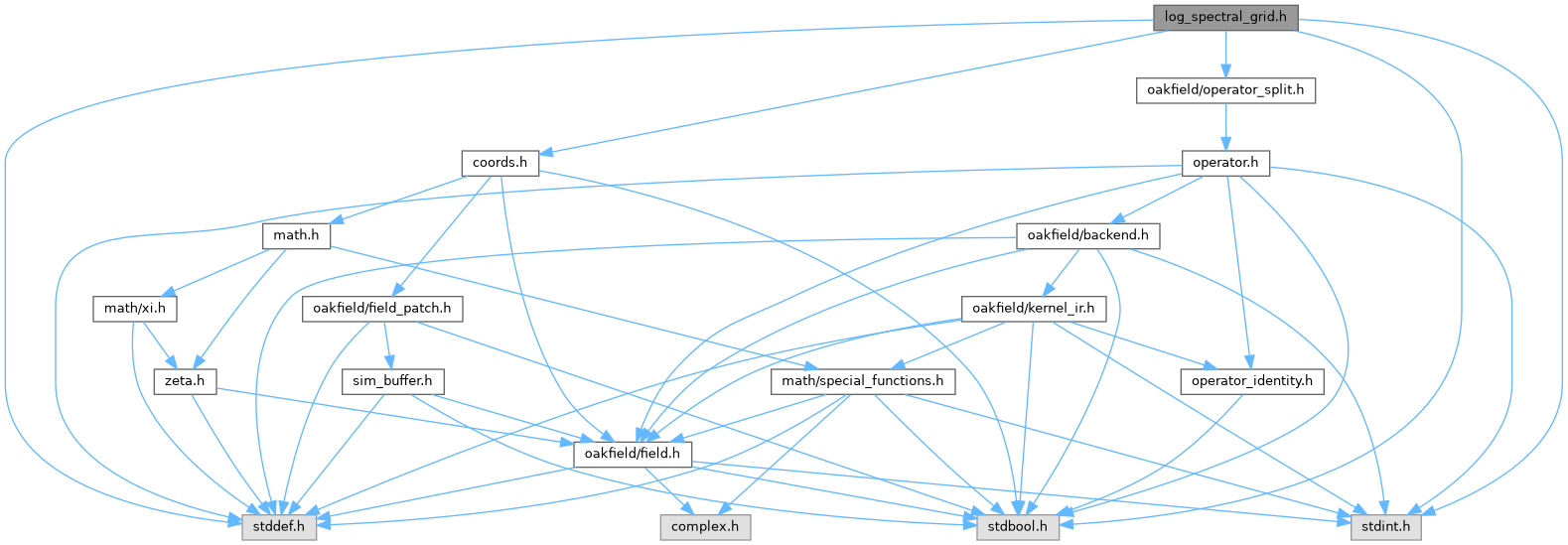

Include dependency graph for log_spectral_grid.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusLogSpectralGridConfig
	Configuration for a log-frequency spectral grid stimulus. More...

Typedefs
typedef struct SimStimulusLogSpectralGridConfig	SimStimulusLogSpectralGridConfig
	Configuration for a log-frequency spectral grid stimulus.

Functions
SimResult	sim_add_stimulus_log_spectral_grid_operator (struct SimContext *context, const SimStimulusLogSpectralGridConfig *config, size_t *out_index)
	Register a log-frequency spectral grid stimulus operator.
SimResult	sim_stimulus_log_spectral_grid_config (struct SimContext *context, size_t operator_index, SimStimulusLogSpectralGridConfig *out_config)
	Copy the current log-spectral-grid configuration from a registered operator.
SimResult	sim_stimulus_log_spectral_grid_update (struct SimContext *context, size_t operator_index, const SimStimulusLogSpectralGridConfig *config)
	Replace or renormalize a registered log-spectral-grid configuration.

Detailed Description

Log-frequency spectral grid stimulus with explicit coordinate controls.

Function Documentation

sim_add_stimulus_log_spectral_grid_operator()

SimResult sim_add_stimulus_log_spectral_grid_operator	(	struct SimContext *	context,
		const SimStimulusLogSpectralGridConfig *	config,
		size_t *	out_index
	)

Register a log-frequency spectral grid stimulus operator.

The implementation copies and normalizes config, builds the modal grid and phase table, and registers the operator on the configured target field.

Parameters

	context	Simulation context that will own the operator.
	config	Optional log-spectral-grid configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, mode-table setup, or split-operator registration.

sim_stimulus_log_spectral_grid_config()

SimResult sim_stimulus_log_spectral_grid_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusLogSpectralGridConfig *	out_config
	)

Copy the current log-spectral-grid configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_log_spectral_grid_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_log_spectral_grid_update()

SimResult sim_stimulus_log_spectral_grid_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusLogSpectralGridConfig *	config
	)

Replace or renormalize a registered log-spectral-grid configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update rebuilds modes as needed and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the log-spectral-grid operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup, mode-table setup, or state validation fails.
