mask_apply.h File Reference

Mask/apply operator to gate a field by a mask. More...

#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

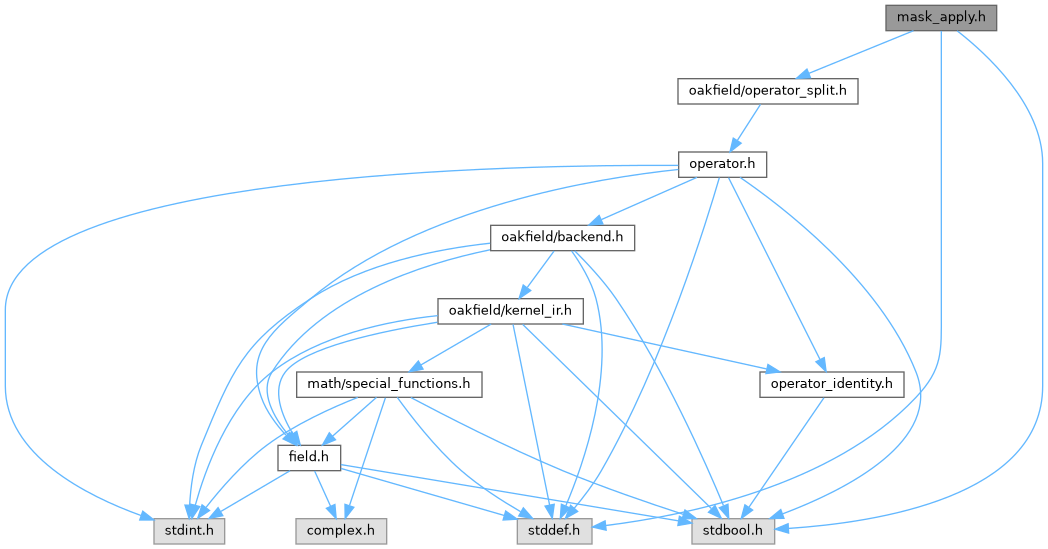

Include dependency graph for mask_apply.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimMaskOperatorConfig
	Configuration for the mask/apply operator. More...

Typedefs
typedef enum SimMaskMode	SimMaskMode
	Mask application mode.
typedef struct SimMaskOperatorConfig	SimMaskOperatorConfig
	Configuration for the mask/apply operator.

Enumerations
enum	SimMaskMode { SIM_MASK_MODE_APPLY = 0 , SIM_MASK_MODE_INVERT }
	Mask application mode.

Functions
SimResult	sim_add_mask_operator (struct SimContext *context, const SimMaskOperatorConfig *config, size_t *out_index)
	Register a mask/apply operator with the provided configuration.
SimResult	sim_mask_config (struct SimContext *context, size_t operator_index, SimMaskOperatorConfig *out_config)
	Retrieve the configuration currently bound to a mask operator.
SimResult	sim_mask_update (struct SimContext *context, size_t operator_index, const SimMaskOperatorConfig *config)
	Update an existing mask operator in-place.

Detailed Description

Mask/apply operator to gate a field by a mask.

Function Documentation

sim_add_mask_operator()

SimResult sim_add_mask_operator	(	struct SimContext *	context,
		const SimMaskOperatorConfig *	config,
		size_t *	out_index
	)

Register a mask/apply operator with the provided configuration.

Parameters

	context	Simulation context that will own the operator.
	config	Optional mask configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, field compatibility checks, allocation, or split registration.

sim_mask_config()

SimResult sim_mask_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimMaskOperatorConfig *	out_config
	)

Retrieve the configuration currently bound to a mask operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_mask_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no mask state.

sim_mask_update()

SimResult sim_mask_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimMaskOperatorConfig *	config
	)

Update an existing mask operator in-place.

Passing NULL for config keeps the current configuration and reapplies normalization. A successful update refreshes symbolic state and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the mask operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code from lookup, field compatibility checks, or state validation.
