math_operator.h File Reference

Elementwise math operator with discrete-friendly operations. More...

#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

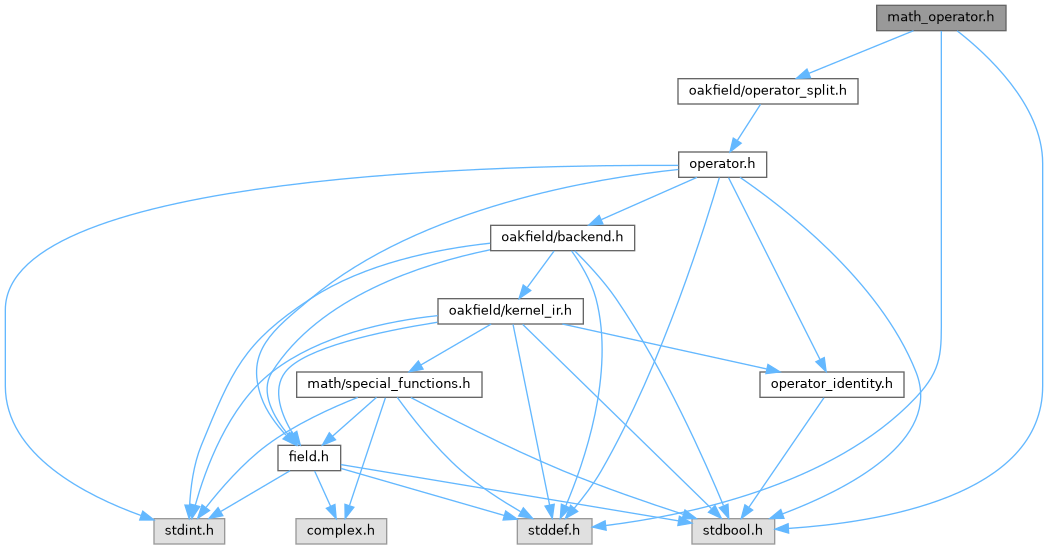

Include dependency graph for math_operator.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimElementwiseMathOperatorConfig
	Configuration parameters for the elementwise math operator. More...

Typedefs
typedef enum SimElementwiseMathMode	SimElementwiseMathMode
	Elementwise math operations.
typedef enum SimElementwiseMathRhsSource	SimElementwiseMathRhsSource
	RHS source for binary operations.
typedef struct SimElementwiseMathOperatorConfig	SimElementwiseMathOperatorConfig
	Configuration parameters for the elementwise math operator.

Enumerations
enum	SimElementwiseMathMode {   SIM_ELEMENTWISE_MATH_FLOOR = 0 , SIM_ELEMENTWISE_MATH_FRACT , SIM_ELEMENTWISE_MATH_MOD , SIM_ELEMENTWISE_MATH_STEP ,   SIM_ELEMENTWISE_MATH_EQ , SIM_ELEMENTWISE_MATH_LT , SIM_ELEMENTWISE_MATH_GT , SIM_ELEMENTWISE_MATH_SELECT }
	Elementwise math operations. More...
enum	SimElementwiseMathRhsSource { SIM_ELEMENTWISE_MATH_RHS_FIELD = 0 , SIM_ELEMENTWISE_MATH_RHS_CONSTANT }
	RHS source for binary operations. More...

Functions
SimResult	sim_add_elementwise_math_operator (struct SimContext *context, const SimElementwiseMathOperatorConfig *config, size_t *out_index)
	Register an elementwise math operator with the provided configuration.
SimResult	sim_elementwise_math_config (struct SimContext *context, size_t operator_index, SimElementwiseMathOperatorConfig *out_config)
	Retrieve the configuration currently bound to a math operator.
SimResult	sim_elementwise_math_update (struct SimContext *context, size_t operator_index, const SimElementwiseMathOperatorConfig *config)
	Update an existing math operator in-place.

Detailed Description

Elementwise math operator with discrete-friendly operations.

Enumeration Type Documentation

SimElementwiseMathMode

enum SimElementwiseMathMode

Elementwise math operations.

Enumerator
SIM_ELEMENTWISE_MATH_FLOOR	Floor operation.
SIM_ELEMENTWISE_MATH_FRACT	Fractional-part operation.
SIM_ELEMENTWISE_MATH_MOD	Modulo operation.
SIM_ELEMENTWISE_MATH_STEP	Threshold step operation.
SIM_ELEMENTWISE_MATH_EQ	Equality comparison.
SIM_ELEMENTWISE_MATH_LT	Less-than comparison.
SIM_ELEMENTWISE_MATH_GT	Greater-than comparison.
SIM_ELEMENTWISE_MATH_SELECT	Select true/false output based on condition.

SimElementwiseMathRhsSource

enum SimElementwiseMathRhsSource

RHS source for binary operations.

Enumerator
SIM_ELEMENTWISE_MATH_RHS_FIELD	Read RHS values from rhs_field.
SIM_ELEMENTWISE_MATH_RHS_CONSTANT	Use rhs_constant as RHS value.

Function Documentation

sim_add_elementwise_math_operator()

SimResult sim_add_elementwise_math_operator	(	struct SimContext *	context,
		const SimElementwiseMathOperatorConfig *	config,
		size_t *	out_index
	)

Register an elementwise math operator with the provided configuration.

Parameters

	context	Simulation context that will own the operator.
	config	Optional elementwise math configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, field/type compatibility checks, allocation, or split registration.

sim_elementwise_math_config()

SimResult sim_elementwise_math_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimElementwiseMathOperatorConfig *	out_config
	)

Retrieve the configuration currently bound to a math operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_elementwise_math_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no math state.

sim_elementwise_math_update()

SimResult sim_elementwise_math_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimElementwiseMathOperatorConfig *	config
	)

Update an existing math operator in-place.

Passing NULL for config keeps the current configuration and reapplies normalization. A successful update validates field/type compatibility, refreshes symbolic metadata, and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the elementwise math operator to update.
config	Optional replacement elementwise math configuration.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, lookup, field/type compatibility checks, or state validation.
