minimal_convolution.h File Reference

Minimal convolution operator with small odd-length kernels (1D/2D). More...

#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

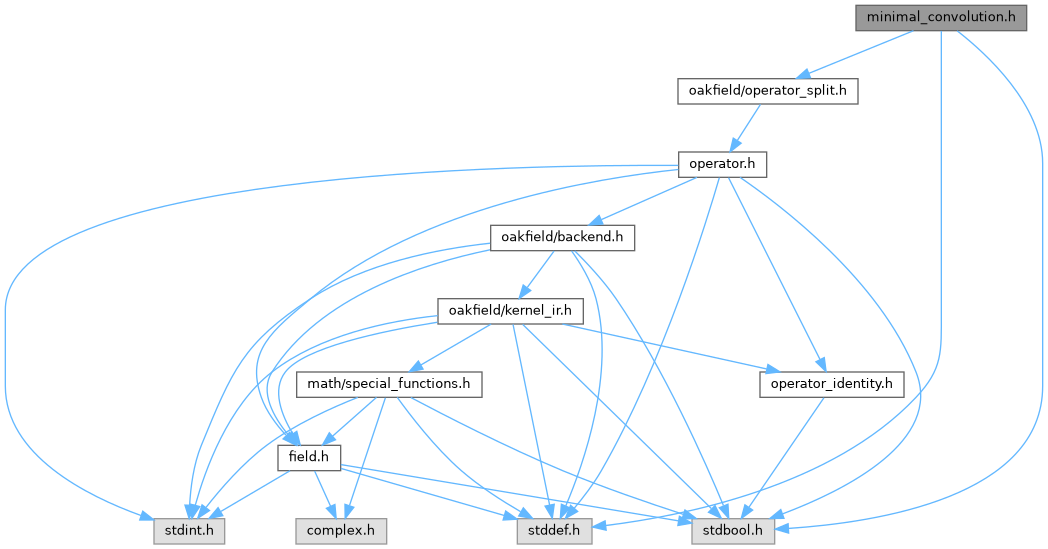

Include dependency graph for minimal_convolution.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimMinimalConvolutionOperatorConfig
	Configuration for the minimal convolution operator. More...

Typedefs
typedef enum SimMinimalConvolutionMode	SimMinimalConvolutionMode
	Supported minimal-convolution kernel layouts.
typedef enum SimMinimalConvolutionAxis	SimMinimalConvolutionAxis
	Axis selection for one-dimensional kernels on two-dimensional fields.
typedef struct SimMinimalConvolutionOperatorConfig	SimMinimalConvolutionOperatorConfig
	Configuration for the minimal convolution operator.

Enumerations
enum	{ SIM_MINIMAL_CONVOLUTION_MAX_TAPS = 9 , SIM_MINIMAL_CONVOLUTION_MAX_TAPS_2D }
enum	SimMinimalConvolutionMode { SIM_MINIMAL_CONVOLUTION_MODE_AXIS = 0 , SIM_MINIMAL_CONVOLUTION_MODE_SEPARABLE , SIM_MINIMAL_CONVOLUTION_MODE_KERNEL_2D }
	Supported minimal-convolution kernel layouts. More...
enum	SimMinimalConvolutionAxis { SIM_MINIMAL_CONVOLUTION_AXIS_X = 0 , SIM_MINIMAL_CONVOLUTION_AXIS_Y }
	Axis selection for one-dimensional kernels on two-dimensional fields. More...

Functions
SimResult	sim_add_minimal_convolution_operator (struct SimContext *context, const SimMinimalConvolutionOperatorConfig *config, size_t *out_index)
	Register a minimal convolution operator.
SimResult	sim_minimal_convolution_config (struct SimContext *context, size_t operator_index, SimMinimalConvolutionOperatorConfig *out_config)
	Copy the current minimal-convolution configuration from a registered operator.
SimResult	sim_minimal_convolution_update (struct SimContext *context, size_t operator_index, const SimMinimalConvolutionOperatorConfig *config)
	Replace the configuration of a registered minimal-convolution operator.

Detailed Description

Minimal convolution operator with small odd-length kernels (1D/2D).

Enumeration Type Documentation

SimMinimalConvolutionAxis

enum SimMinimalConvolutionAxis

Axis selection for one-dimensional kernels on two-dimensional fields.

Enumerator
SIM_MINIMAL_CONVOLUTION_AXIS_X	Convolve along the X axis.
SIM_MINIMAL_CONVOLUTION_AXIS_Y	Convolve along the Y axis.

SimMinimalConvolutionMode

enum SimMinimalConvolutionMode

Supported minimal-convolution kernel layouts.

Enumerator
SIM_MINIMAL_CONVOLUTION_MODE_AXIS	Apply a one-dimensional kernel along one axis.
SIM_MINIMAL_CONVOLUTION_MODE_SEPARABLE	Apply separable row/column kernels.
SIM_MINIMAL_CONVOLUTION_MODE_KERNEL_2D	Apply a full two-dimensional kernel.

Function Documentation

sim_add_minimal_convolution_operator()

SimResult sim_add_minimal_convolution_operator	(	struct SimContext *	context,
		const SimMinimalConvolutionOperatorConfig *	config,
		size_t *	out_index
	)

Register a minimal convolution operator.

The implementation copies and normalizes config, validates kernel shape and field compatibility, and registers a split operator over matching real or complex fields.

Parameters

	context	Simulation context that will own the operator.
	config	Optional convolution configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, kernel validation, field compatibility checks, allocation, or registration.

sim_minimal_convolution_config()

SimResult sim_minimal_convolution_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimMinimalConvolutionOperatorConfig *	out_config
	)

Copy the current minimal-convolution configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_minimal_convolution_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no convolution state.

sim_minimal_convolution_update()

SimResult sim_minimal_convolution_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimMinimalConvolutionOperatorConfig *	config
	)

Replace the configuration of a registered minimal-convolution operator.

config is required. The replacement is normalized and kernel/field compatibility is checked before storing it.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the minimal-convolution operator to update.
config	Replacement convolution configuration.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, lookup, kernel validation, field compatibility checks, or state validation.
