Field mixing/coupling operators (linear, multiply, crossfade, AM/FM/PM, etc.). More...

#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

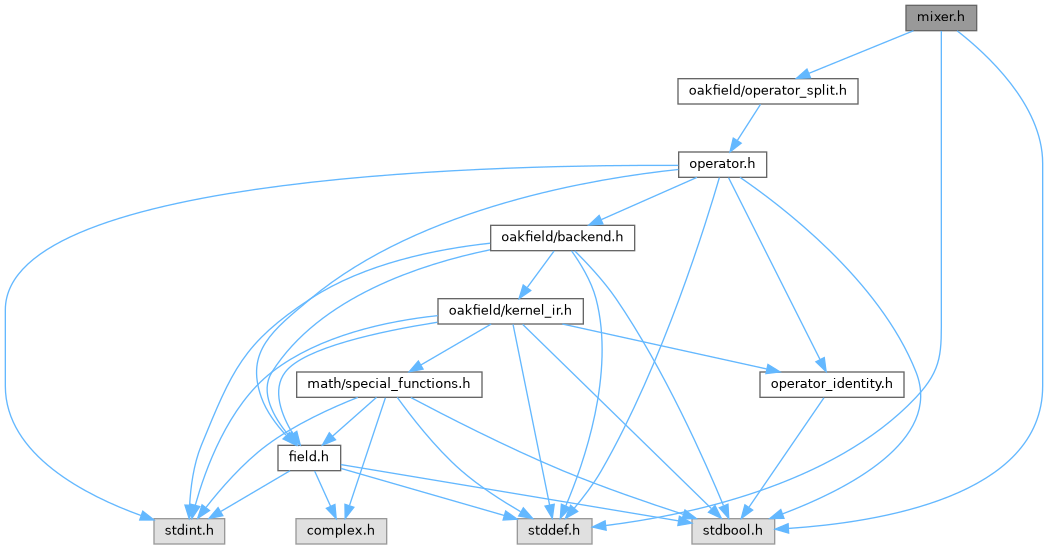

Include dependency graph for mixer.h:

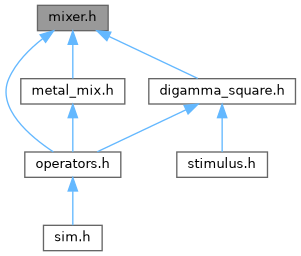

This graph shows which files directly or indirectly include this file:

Classes
struct	SimMixerOperatorConfig
	Configuration parameters for the mixer operator. More...

Typedefs
typedef enum SimMixerMode	SimMixerMode
	Mixing strategies supported by the mixer operator family.

typedef enum SimMixerFeedbackEpsilonMode	SimMixerFeedbackEpsilonMode
	Interpretation of feedback_epsilon in feedback mixer mode.

typedef enum SimMixerFeedbackSplitMode	SimMixerFeedbackSplitMode
	Operator splitting strategy for feedback mixer integration.

typedef struct SimMixerOperatorConfig	SimMixerOperatorConfig
	Configuration parameters for the mixer operator.

Enumerations
enum	SimMixerMode { SIM_MIXER_MODE_LINEAR = 0 , SIM_MIXER_MODE_MULTIPLY , SIM_MIXER_MODE_CROSSFADE , SIM_MIXER_MODE_SUM , SIM_MIXER_MODE_POWER , SIM_MIXER_MODE_AM , SIM_MIXER_MODE_FM , SIM_MIXER_MODE_PM , SIM_MIXER_MODE_RING_MOD , SIM_MIXER_MODE_MAX , SIM_MIXER_MODE_MIN , SIM_MIXER_MODE_AVERAGE , SIM_MIXER_MODE_DIFFERENCE , SIM_MIXER_MODE_ABSOLUTE_DIFFERENCE , SIM_MIXER_MODE_FEEDBACK }
	Mixing strategies supported by the mixer operator family. More...

enum	SimMixerFeedbackEpsilonMode { SIM_MIXER_FEEDBACK_EPS_INPUT = 0 , SIM_MIXER_FEEDBACK_EPS_FEEDBACK }
	Interpretation of feedback_epsilon in feedback mixer mode. More...

enum	SimMixerFeedbackSplitMode { SIM_MIXER_FEEDBACK_SPLIT_NONE = 0 , SIM_MIXER_FEEDBACK_SPLIT_LIE , SIM_MIXER_FEEDBACK_SPLIT_STRANG }
	Operator splitting strategy for feedback mixer integration. More...

Functions
const char *	mixer_mode_name (SimMixerMode mode)
	Return the schema name for a mixer mode.

const char *	mixer_feedback_epsilon_mode_name (SimMixerFeedbackEpsilonMode mode)
	Return the schema name for a feedback epsilon interpretation mode.

const char *	mixer_feedback_split_name (SimMixerFeedbackSplitMode mode)
	Return the schema name for a feedback split mode.

bool	mixer_mode_from_name (const char name, SimMixerMode out_mode)
	Convert a schema/descriptor string value into a mixer mode enum.

bool	mixer_feedback_epsilon_mode_from_name (const char name, SimMixerFeedbackEpsilonMode out_mode)
	Parse a feedback epsilon mode name.

bool	mixer_feedback_split_from_name (const char name, SimMixerFeedbackSplitMode out_mode)
	Parse a feedback split mode name.

SimResult	sim_add_mixer_operator (struct SimContext context, const SimMixerOperatorConfig config, size_t *out_index)
	Register a mixer operator combining two fields.

SimResult	sim_mixer_config (struct SimContext context, size_t operator_index, SimMixerOperatorConfig out_config)
	Retrieve the configuration stored in a mixer operator.

SimResult	sim_mixer_update (struct SimContext context, size_t operator_index, const SimMixerOperatorConfig config)
	Update an existing mixer operator's configuration.

Detailed Description

Field mixing/coupling operators (linear, multiply, crossfade, AM/FM/PM, etc.).

Supports real and complex fields; for complex, operations are applied component-wise unless the mode explicitly defines a complex interaction (e.g., ring modulation).

Enumeration Type Documentation

◆ SimMixerFeedbackEpsilonMode

enum SimMixerFeedbackEpsilonMode

Interpretation of feedback_epsilon in feedback mixer mode.

Enumerator
SIM_MIXER_FEEDBACK_EPS_INPUT	Epsilon scales the input injection term.
SIM_MIXER_FEEDBACK_EPS_FEEDBACK	Epsilon scales the feedback (previous output) term.

◆ SimMixerFeedbackSplitMode

enum SimMixerFeedbackSplitMode

Operator splitting strategy for feedback mixer integration.

Enumerator
SIM_MIXER_FEEDBACK_SPLIT_NONE	No split integration for feedback.
SIM_MIXER_FEEDBACK_SPLIT_LIE	Lie splitting for feedback updates.
SIM_MIXER_FEEDBACK_SPLIT_STRANG	Strang splitting for feedback updates.

◆ SimMixerMode

enum SimMixerMode

Mixing strategies supported by the mixer operator family.

Enumerator
SIM_MIXER_MODE_LINEAR	Weighted linear blend.
SIM_MIXER_MODE_MULTIPLY	Pointwise multiplication.
SIM_MIXER_MODE_CROSSFADE	Crossfade between lhs and rhs.
SIM_MIXER_MODE_SUM	Sum inputs after gain and bias.
SIM_MIXER_MODE_POWER	Raise lhs by rhs-derived exponent.
SIM_MIXER_MODE_AM	Amplitude modulation.
SIM_MIXER_MODE_FM	Frequency-modulation-style phase coupling.
SIM_MIXER_MODE_PM	Phase modulation.
SIM_MIXER_MODE_RING_MOD	Ring modulation product.
SIM_MIXER_MODE_MAX	Pointwise maximum.
SIM_MIXER_MODE_MIN	Pointwise minimum.
SIM_MIXER_MODE_AVERAGE	Pointwise average.
SIM_MIXER_MODE_DIFFERENCE	Signed lhs-rhs difference.
SIM_MIXER_MODE_ABSOLUTE_DIFFERENCE	Absolute lhs-rhs difference.
SIM_MIXER_MODE_FEEDBACK	Feedback coupling mode.

Function Documentation

◆ mixer_feedback_epsilon_mode_from_name()

bool mixer_feedback_epsilon_mode_from_name	(	const char *	name,
		SimMixerFeedbackEpsilonMode *	out_mode
	)

Parse a feedback epsilon mode name.

Parameters

	name	Schema value string.
[out]	out_mode	Filled with the corresponding enum on success.

Returns: true when name maps to a known feedback epsilon mode.

◆ mixer_feedback_epsilon_mode_name()

const char * mixer_feedback_epsilon_mode_name ( SimMixerFeedbackEpsilonMode mode )

Return the schema name for a feedback epsilon interpretation mode.

Parameters

mode	Feedback epsilon mode value.

Returns: Stable lowercase mode name.

◆ mixer_feedback_split_from_name()

bool mixer_feedback_split_from_name	(	const char *	name,
		SimMixerFeedbackSplitMode *	out_mode
	)

Parse a feedback split mode name.

Parameters

	name	Schema value string.
[out]	out_mode	Filled with the corresponding enum on success.

Returns: true when name maps to a known feedback split mode.

◆ mixer_feedback_split_name()

const char * mixer_feedback_split_name ( SimMixerFeedbackSplitMode mode )

Return the schema name for a feedback split mode.

Parameters

mode	Feedback split mode value.

Returns: Stable lowercase mode name.

◆ mixer_mode_from_name()

bool mixer_mode_from_name	(	const char *	name,
		SimMixerMode *	out_mode
	)

Convert a schema/descriptor string value into a mixer mode enum.

Parameters

	name	Schema value string such as "linear" or "multiply".
[out]	out_mode	Filled with the corresponding enum on success.

Returns: true when the string maps to a known mixer mode.

◆ mixer_mode_name()

const char * mixer_mode_name ( SimMixerMode mode )

Return the schema name for a mixer mode.

Parameters

mode	Mixer mode value.

Returns: Stable lowercase mode name.

◆ sim_add_mixer_operator()

SimResult sim_add_mixer_operator	(	struct SimContext *	context,
		const SimMixerOperatorConfig *	config,
		size_t *	out_index
	)

Register a mixer operator combining two fields.

Parameters

	context	Simulation context that will own the operator.
	config	Optional mixer configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns: SIM_RESULT_OK on success, or an error code from argument validation, mode validation, field compatibility checks, allocation, or registration.

◆ sim_mixer_config()

SimResult sim_mixer_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimMixerOperatorConfig *	out_config
	)

Retrieve the configuration stored in a mixer operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_mixer_operator().
[out]	out_config	Receives the normalized configuration.

Returns: SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no mixer state.

◆ sim_mixer_update()

SimResult sim_mixer_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimMixerOperatorConfig *	config
	)

Update an existing mixer operator's configuration.

Passing NULL for config keeps the current configuration and reapplies normalization. A successful update refreshes runtime/symbolic state and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the mixer operator to update.
config	Optional replacement configuration.

Returns: SIM_RESULT_OK on success, or an error code from lookup, mode validation, field compatibility checks, or state validation.
