neural_hybrid.h File Reference

Analytic+residual neural hybrid operator scaffolding. More...

#include "neural_infer.h"

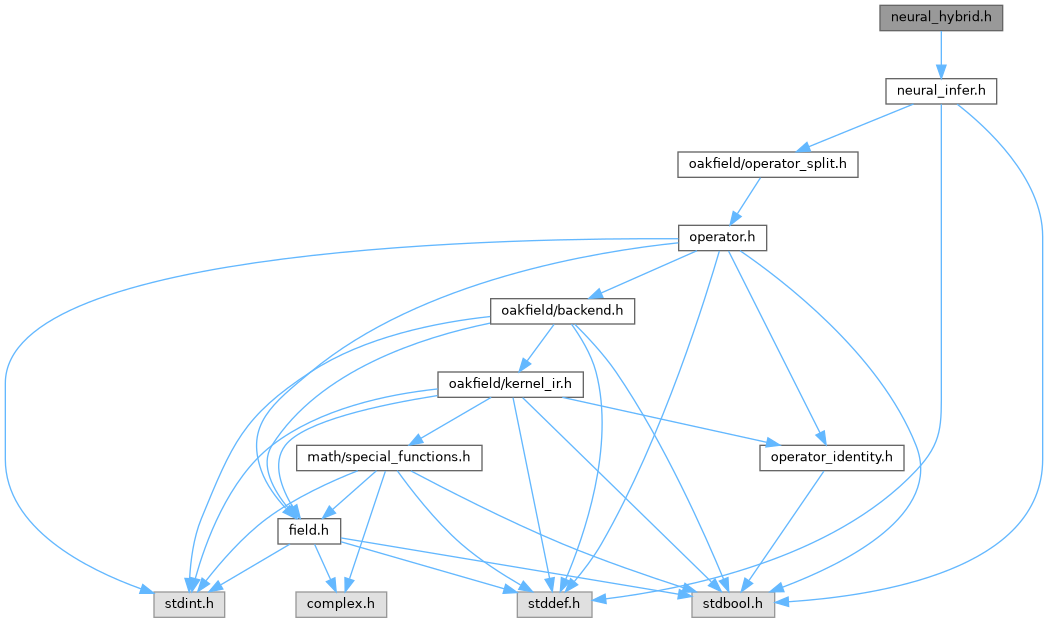

Include dependency graph for neural_hybrid.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimNeuralHybridOperatorConfig
	Configuration for analytic + neural residual hybrid operator. More...

Typedefs
typedef struct SimNeuralHybridOperatorConfig	SimNeuralHybridOperatorConfig
	Configuration for analytic + neural residual hybrid operator.

Functions
SimResult	sim_add_neural_hybrid_operator (struct SimContext *context, const SimNeuralHybridOperatorConfig *config, size_t *out_index)
	Register an analytic-plus-neural residual hybrid operator.
SimResult	sim_neural_hybrid_config (struct SimContext *context, size_t operator_index, SimNeuralHybridOperatorConfig *out_config)
	Copy the current neural hybrid configuration from a registered operator.
SimResult	sim_neural_hybrid_update (struct SimContext *context, size_t operator_index, const SimNeuralHybridOperatorConfig *config)
	Replace the configuration of a registered neural hybrid operator.

Detailed Description

Analytic+residual neural hybrid operator scaffolding.

Function Documentation

sim_add_neural_hybrid_operator()

SimResult sim_add_neural_hybrid_operator	(	struct SimContext *	context,
		const SimNeuralHybridOperatorConfig *	config,
		size_t *	out_index
	)

Register an analytic-plus-neural residual hybrid operator.

Parameters

	context	Simulation context that will own the operator.
	config	Optional hybrid configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, field compatibility checks, allocation, or split registration.

sim_neural_hybrid_config()

SimResult sim_neural_hybrid_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimNeuralHybridOperatorConfig *	out_config
	)

Copy the current neural hybrid configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_neural_hybrid_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no hybrid state.

sim_neural_hybrid_update()

SimResult sim_neural_hybrid_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimNeuralHybridOperatorConfig *	config
	)

Replace the configuration of a registered neural hybrid operator.

config is required. The replacement is normalized and field/shape compatibility is checked before storing it.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the neural hybrid operator to update.
config	Replacement hybrid configuration.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, lookup, field compatibility checks, or state validation.
