operator_split.h File Reference

Declarative complex-first operator splitting (substep expansion at plan time). More...

#include "operator.h"

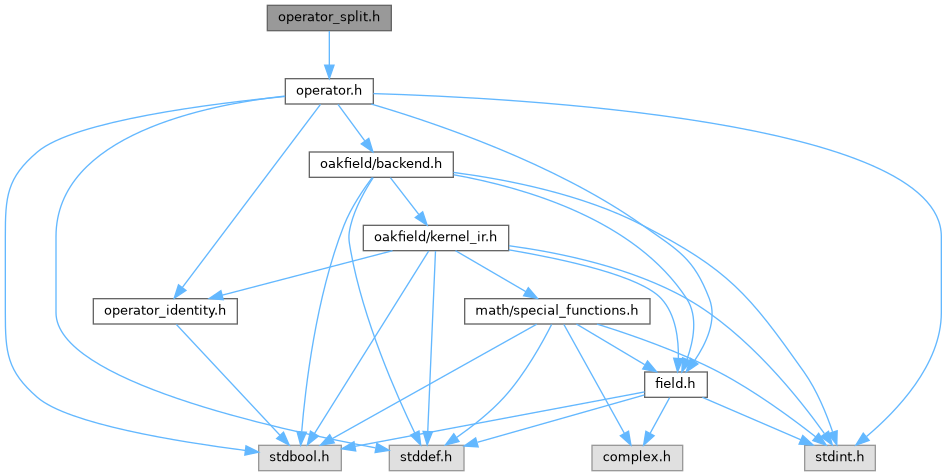

Include dependency graph for operator_split.h:

Go to the source code of this file.

Classes
struct	SimSplitAccess
	Per-substep access to a descriptor port. More...
struct	SimSplitSubstep
	One executable step inside a split operator sequence. More...
struct	SimSplitPort
	Binding between a split port and a context field. More...
struct	SimSplitScratchRequest
	Optional per-thread scratch request for split substeps. More...
struct	SimSplitDescriptor
	Full declarative description of a split operator sequence. More...

Typedefs
typedef enum SimAccessMode	SimAccessMode
	Field access mode declared by a split-operator substep.
typedef struct SimSplitAccess	SimSplitAccess
	Per-substep access to a descriptor port.
typedef struct SimSplitSubstep	SimSplitSubstep
	One executable step inside a split operator sequence.
typedef struct SimSplitPort	SimSplitPort
	Binding between a split port and a context field.
typedef struct SimSplitScratchRequest	SimSplitScratchRequest
	Optional per-thread scratch request for split substeps.
typedef struct SimSplitDescriptor	SimSplitDescriptor
	Full declarative description of a split operator sequence.

Enumerations
enum	SimAccessMode { SIM_ACCESS_READ = 0 , SIM_ACCESS_WRITE = 1 , SIM_ACCESS_RW = 2 }
	Field access mode declared by a split-operator substep. More...

Functions
SimResult	sim_split_register (struct SimContext *context, const SimSplitDescriptor *desc, const size_t *dependencies, size_t dependency_count, size_t *out_first, size_t *out_last)
	Register a split operator which expands into sequential substeps.
const char *	sim_split_symbolic (const struct SimOperator *op)
	Return the symbolic form string for any generated substep operator.
void *	sim_split_state (struct SimOperator *op)
	Return the shared descriptor state for any generated substep operator.
void *	sim_operator_state (struct SimOperator *op)
	Return operator state regardless of split or kernel-backed registration.

Detailed Description

Declarative complex-first operator splitting (substep expansion at plan time).

A split descriptor registers a sequence of ordinary SimOperator instances that share one user state pointer. Access declarations become read/write hazards for the scheduler, optional scratch is reserved per split operator, and later substeps depend on earlier substeps to preserve sequence order.

Typedef Documentation

SimSplitDescriptor

typedef struct SimSplitDescriptor SimSplitDescriptor

Full declarative description of a split operator sequence.

The descriptor, port array, substep array, and access arrays are cloned during registration, but the state pointer remains caller-provided shared state. When the registered substep operators are destroyed, the optional destroy callback receives that shared state once.

Enumeration Type Documentation

SimAccessMode

enum SimAccessMode

Field access mode declared by a split-operator substep.

Enumerator
SIM_ACCESS_READ	Substep reads the bound port field.
SIM_ACCESS_WRITE	Substep writes the bound port field.
SIM_ACCESS_RW	Substep both reads and writes the bound port field.

Function Documentation

sim_operator_state()

void * sim_operator_state

(

struct SimOperator *

op

)

Return operator state regardless of split or kernel-backed registration.

Parameters

op	Operator to inspect.

Returns

Split shared state when present, otherwise sim_operator_payload(op).

sim_split_register()

SimResult sim_split_register	(	struct SimContext *	context,
		const SimSplitDescriptor *	desc,
		const size_t *	dependencies,
		size_t	dependency_count,
		size_t *	out_first,
		size_t *	out_last
	)

Register a split operator which expands into sequential substeps.

Registers one operator per substep. The first substep depends on the provided dependencies; each subsequent substep depends on the previous substep. Field access declarations are converted into scheduler read/write masks and index arrays. Complex requirements are checked before registration completes.

Parameters

	context	Target simulation context.
	desc	Split operator description; arrays are copied, state is not copied.
	dependencies	Optional dependency list for the first substep.
	dependency_count	Length of dependencies.
[out]	out_first	Optional receiver for the first generated operator index.
[out]	out_last	Optional receiver for the final generated operator index.

Returns

SIM_RESULT_OK, SIM_RESULT_INVALID_ARGUMENT, SIM_RESULT_TYPE_MISMATCH, SIM_RESULT_OUT_OF_MEMORY, or a result propagated by operator registration.

sim_split_state()

void * sim_split_state

(

struct SimOperator *

op

)

Return the shared descriptor state for any generated substep operator.

Parameters

op	Generated split operator.

Returns

Shared state pointer, or NULL when op is not a split operator.

sim_split_symbolic()

const char * sim_split_symbolic

(

const struct SimOperator *

op

)

Return the symbolic form string for any generated substep operator.

Parameters

op	Generated split operator.

Returns

Symbolic string from the descriptor callback, or NULL when unavailable.
