optical_vortex.h File Reference

Optical vortex beam stimulus with Gaussian envelope and phase singularity. More...

#include "coords.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

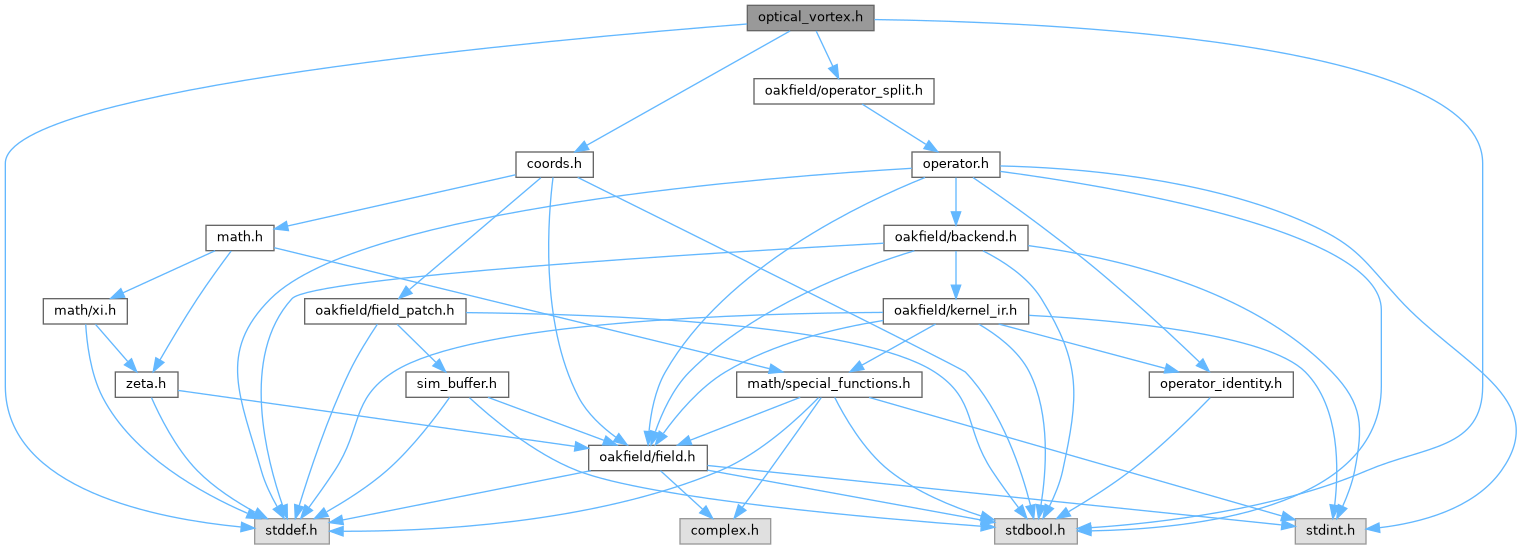

Include dependency graph for optical_vortex.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusOpticalVortexConfig
	Configuration for an optical vortex beam with phase winding. More...

Typedefs
typedef struct SimStimulusOpticalVortexConfig	SimStimulusOpticalVortexConfig
	Configuration for an optical vortex beam with phase winding.

Functions
SimResult	sim_add_stimulus_optical_vortex_operator (struct SimContext *context, const SimStimulusOpticalVortexConfig *config, size_t *out_index)
	Register an optical vortex beam stimulus operator.
SimResult	sim_stimulus_optical_vortex_config (struct SimContext *context, size_t operator_index, SimStimulusOpticalVortexConfig *out_config)
	Copy the current optical-vortex configuration from a registered operator.
SimResult	sim_stimulus_optical_vortex_update (struct SimContext *context, size_t operator_index, const SimStimulusOpticalVortexConfig *config)
	Replace or renormalize a registered optical-vortex configuration.

Detailed Description

Optical vortex beam stimulus with Gaussian envelope and phase singularity.

Synthesizes a vortex beam of the form V(u,v,t) = A * rho^{|l|} * exp(-rho^2 / 2) * exp(i * (l * theta - omega * t + phi)), where rho is the beam radius normalized by the configured waists and l is the topological charge.

For real fields, the real component of the beam is injected. For complex fields, the full complex beam is written with an additional global rotation.

Function Documentation

sim_add_stimulus_optical_vortex_operator()

SimResult sim_add_stimulus_optical_vortex_operator	(	struct SimContext *	context,
		const SimStimulusOpticalVortexConfig *	config,
		size_t *	out_index
	)

Register an optical vortex beam stimulus operator.

The implementation copies and normalizes config, then registers a split operator that writes the vortex envelope and phase winding into the target field.

Parameters

	context	Simulation context that will own the operator.
	config	Optional optical-vortex configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, or split-operator registration.

sim_stimulus_optical_vortex_config()

SimResult sim_stimulus_optical_vortex_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusOpticalVortexConfig *	out_config
	)

Copy the current optical-vortex configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_optical_vortex_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_optical_vortex_update()

SimResult sim_stimulus_optical_vortex_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusOpticalVortexConfig *	config
	)

Replace or renormalize a registered optical-vortex configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update refreshes symbolic state and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the optical-vortex operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup or state validation fails.
