phase_rotate.h File Reference

Utility operator that advances field phase by a rate times the timestep. More...

#include "oakfield/operator_split.h"

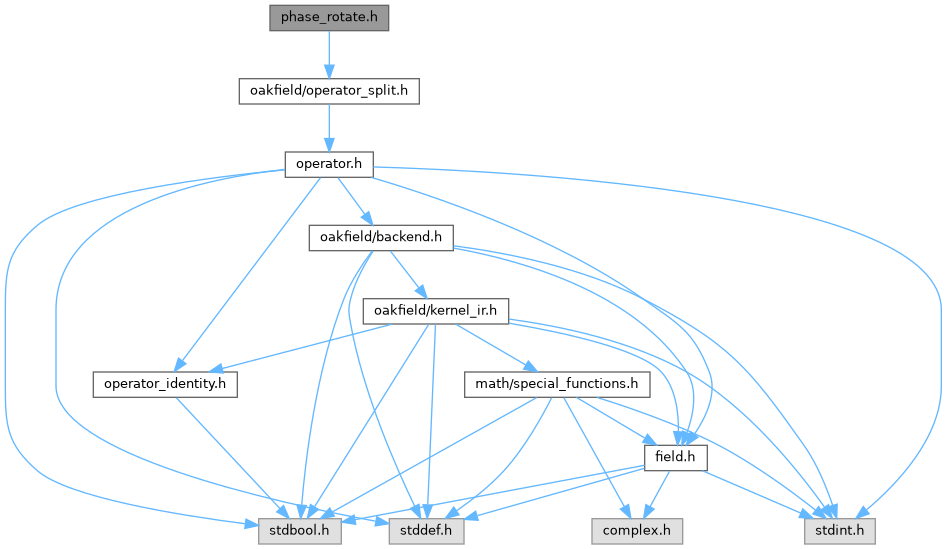

Include dependency graph for phase_rotate.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	PhaseRotateOperatorConfig
	Configuration for applying a uniform phase rotation to a target field. More...

Typedefs
typedef struct PhaseRotateOperatorConfig	PhaseRotateOperatorConfig
	Configuration for applying a uniform phase rotation to a target field.

Functions
SimResult	sim_add_phase_rotate_operator (struct SimContext *context, const PhaseRotateOperatorConfig *config, size_t *out_index)
	Register a phase-rotation utility operator.
SimResult	sim_phase_rotate_config (struct SimContext *context, size_t operator_index, PhaseRotateOperatorConfig *out_config)
	Copy the current configuration from a registered phase-rotation operator.
SimResult	sim_phase_rotate_update (struct SimContext *context, size_t operator_index, const PhaseRotateOperatorConfig *config)
	Replace the configuration of a registered phase-rotation operator.

Detailed Description

Utility operator that advances field phase by a rate times the timestep.

Complex fields are rotated by exp(i * phase_rate * dt). Real fields, or fields constrained to real spectral subspaces, receive the projected cos(theta) scale.

Function Documentation

sim_add_phase_rotate_operator()

SimResult sim_add_phase_rotate_operator	(	struct SimContext *	context,
		const PhaseRotateOperatorConfig *	config,
		size_t *	out_index
	)

Register a phase-rotation utility operator.

The implementation copies and normalizes config, validates that the target field is real double or complex double, and may register a symbolic kernel for unconstrained complex rotations.

Parameters

	context	Simulation context that will own the operator.
	config	Optional phase-rotation configuration; NULL selects field 0 and zero rate.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL context or invalid field, SIM_RESULT_TYPE_MISMATCH for unsupported field storage, SIM_RESULT_OUT_OF_MEMORY on allocation failure, or a registration error.

sim_phase_rotate_config()

SimResult sim_phase_rotate_config	(	struct SimContext *	context,
		size_t	operator_index,
		PhaseRotateOperatorConfig *	out_config
	)

Copy the current configuration from a registered phase-rotation operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_phase_rotate_operator().
[out]	out_config	Receives the operator configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no phase-rotation state.

sim_phase_rotate_update()

SimResult sim_phase_rotate_update	(	struct SimContext *	context,
		size_t	operator_index,
		const PhaseRotateOperatorConfig *	config
	)

Replace the configuration of a registered phase-rotation operator.

config is required. A non-finite replacement phase_rate preserves the previous rate. A successful update refreshes operator info, patches the kernel constant when one is registered, and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the phase-rotation operator to update.
config	Replacement phase-rotation configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL inputs or invalid field, SIM_RESULT_NOT_FOUND for a missing operator, SIM_RESULT_INVALID_STATE for missing state, or SIM_RESULT_TYPE_MISMATCH for unsupported field storage.
