random_fourier.h File Reference

Random Fourier feature stimulus fields. More...

#include "coords.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>

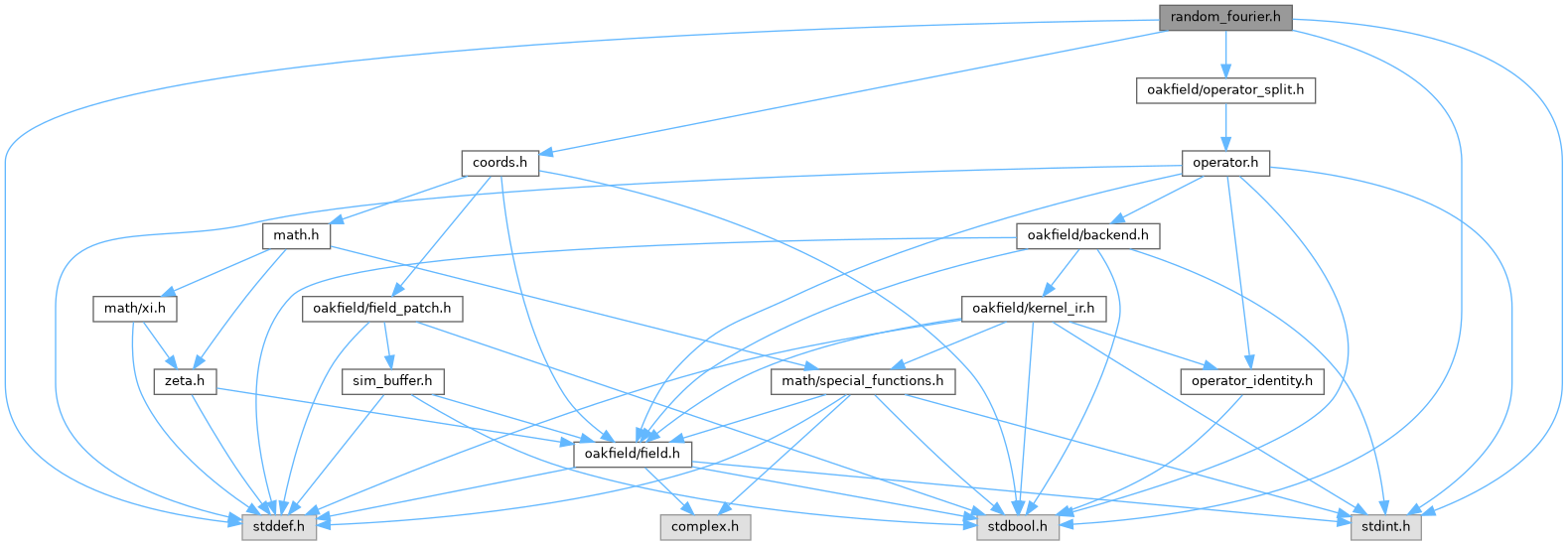

Include dependency graph for random_fourier.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusRandomFourierConfig
	Configuration for seeded random Fourier feature stimulus fields. More...

Typedefs
typedef struct SimStimulusRandomFourierConfig	SimStimulusRandomFourierConfig
	Configuration for seeded random Fourier feature stimulus fields.

Functions
SimResult	sim_add_stimulus_random_fourier_operator (struct SimContext *context, const SimStimulusRandomFourierConfig *config, size_t *out_index)
	Register a random Fourier feature stimulus operator.
SimResult	sim_stimulus_random_fourier_config (struct SimContext *context, size_t operator_index, SimStimulusRandomFourierConfig *out_config)
	Copy the current random-Fourier configuration from a registered operator.
SimResult	sim_stimulus_random_fourier_update (struct SimContext *context, size_t operator_index, const SimStimulusRandomFourierConfig *config)
	Replace or renormalize a registered random-Fourier configuration.

Detailed Description

Random Fourier feature stimulus fields.

Synthesizes spatially structured fields via random Fourier features: f(x, t) = sum_k a_k cos(ω_k x - Ω t + φ_k)

For complex fields, a complex-valued sum is written. For real fields, the real part is written, yielding Hermitian-symmetric spectra.

Function Documentation

sim_add_stimulus_random_fourier_operator()

SimResult sim_add_stimulus_random_fourier_operator	(	struct SimContext *	context,
		const SimStimulusRandomFourierConfig *	config,
		size_t *	out_index
	)

Register a random Fourier feature stimulus operator.

The implementation copies and normalizes config, derives deterministic features from the seed, and registers the operator on the target field.

Parameters

	context	Simulation context that will own the operator.
	config	Optional random-Fourier configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, feature setup, or split-operator registration.

sim_stimulus_random_fourier_config()

SimResult sim_stimulus_random_fourier_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusRandomFourierConfig *	out_config
	)

Copy the current random-Fourier configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_random_fourier_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_random_fourier_update()

SimResult sim_stimulus_random_fourier_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusRandomFourierConfig *	config
	)

Replace or renormalize a registered random-Fourier configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update rebuilds features as needed and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the random-Fourier operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup, feature setup, or state validation fails.
