rd_seed.h File Reference

Reaction-diffusion seed-pattern stimulus. More...

#include "coords.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>

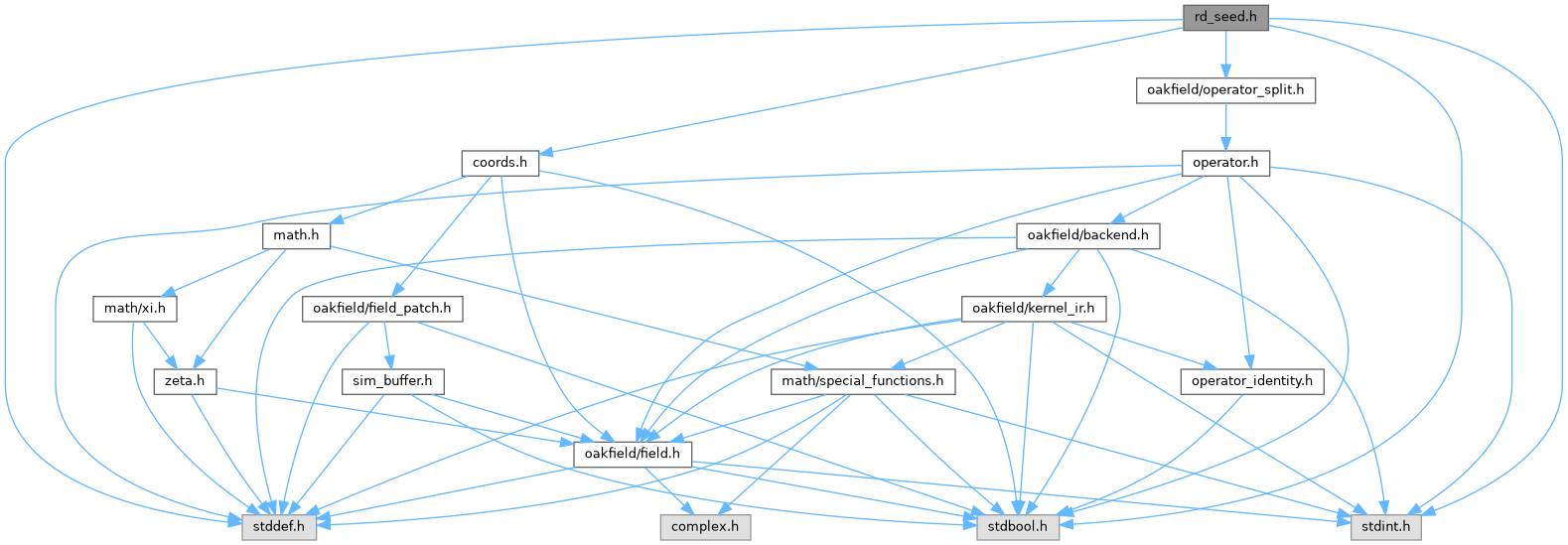

Include dependency graph for rd_seed.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusRDSeedConfig
	Configuration for reaction-diffusion seed-pattern stimuli. More...

Typedefs
typedef enum SimStimulusRDSeedMode	SimStimulusRDSeedMode
	Seed-pattern templates for reaction-diffusion initialization.
typedef struct SimStimulusRDSeedConfig	SimStimulusRDSeedConfig
	Configuration for reaction-diffusion seed-pattern stimuli.

Enumerations
enum	SimStimulusRDSeedMode { SIM_STIMULUS_RD_SEED_SPOTS = 0 , SIM_STIMULUS_RD_SEED_STRIPES , SIM_STIMULUS_RD_SEED_LABYRINTH , SIM_STIMULUS_RD_SEED_RINGS }
	Seed-pattern templates for reaction-diffusion initialization. More...

Functions
SimResult	sim_add_stimulus_rd_seed_operator (struct SimContext *context, const SimStimulusRDSeedConfig *config, size_t *out_index)
	Register a reaction-diffusion seed-pattern stimulus operator.
SimResult	sim_stimulus_rd_seed_config (struct SimContext *context, size_t operator_index, SimStimulusRDSeedConfig *out_config)
	Copy the current RD seed configuration from a registered operator.
SimResult	sim_stimulus_rd_seed_update (struct SimContext *context, size_t operator_index, const SimStimulusRDSeedConfig *config)
	Replace or renormalize a registered RD seed stimulus configuration.

Detailed Description

Reaction-diffusion seed-pattern stimulus.

Applies seeded spatial templates (spots/stripes/labyrinth/rings) as a persistent reaction-diffusion style stimulus.

Enumeration Type Documentation

SimStimulusRDSeedMode

enum SimStimulusRDSeedMode

Seed-pattern templates for reaction-diffusion initialization.

Enumerator
SIM_STIMULUS_RD_SEED_SPOTS	Spot-like seed pattern.
SIM_STIMULUS_RD_SEED_STRIPES	Stripe-like seed pattern.
SIM_STIMULUS_RD_SEED_LABYRINTH	Labyrinth-like seed pattern.
SIM_STIMULUS_RD_SEED_RINGS	Ring-like seed pattern.

Function Documentation

sim_add_stimulus_rd_seed_operator()

SimResult sim_add_stimulus_rd_seed_operator	(	struct SimContext *	context,
		const SimStimulusRDSeedConfig *	config,
		size_t *	out_index
	)

Register a reaction-diffusion seed-pattern stimulus operator.

The implementation copies and normalizes config, rebuilds the seeded template table, and registers the operator on the target field.

Parameters

	context	Simulation context that will own the operator.
	config	Optional RD seed configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, table setup, or split-operator registration.

sim_stimulus_rd_seed_config()

SimResult sim_stimulus_rd_seed_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusRDSeedConfig *	out_config
	)

Copy the current RD seed configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_rd_seed_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_rd_seed_update()

SimResult sim_stimulus_rd_seed_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusRDSeedConfig *	config
	)

Replace or renormalize a registered RD seed stimulus configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update rebuilds the seed tables as needed and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the RD seed operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup, table setup, or state validation fails.
