remainder.h File Reference

Remainder operator measuring f(warped) - f(reference) with optional accumulation. More...

#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

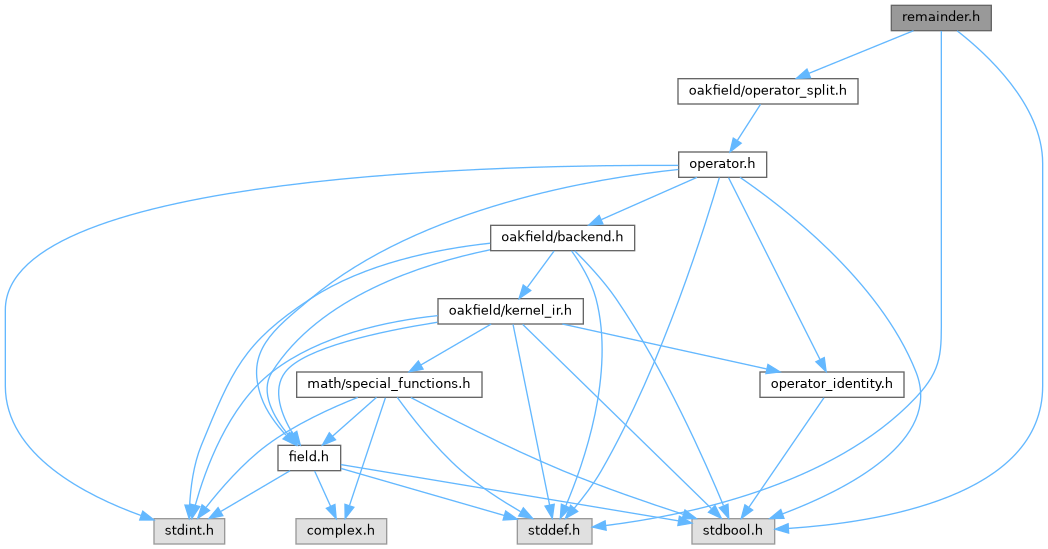

Include dependency graph for remainder.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimRemainderOperatorConfig
	Configuration for the remainder operator. More...

Typedefs
typedef enum SimRemainderNonlinearity	SimRemainderNonlinearity
	Available nonlinearities applied before differencing.
typedef enum SimRemainderComplexMode	SimRemainderComplexMode
	Complex processing mode for remainder operator.
typedef struct SimRemainderOperatorConfig	SimRemainderOperatorConfig
	Configuration for the remainder operator.

Enumerations
enum	SimRemainderNonlinearity {   SIM_REMAINDER_NONLINEARITY_IDENTITY = 0 , SIM_REMAINDER_NONLINEARITY_ABS , SIM_REMAINDER_NONLINEARITY_LOG_ABS , SIM_REMAINDER_NONLINEARITY_POWER ,   SIM_REMAINDER_NONLINEARITY_TANH }
	Available nonlinearities applied before differencing. More...
enum	SimRemainderComplexMode { SIM_REMAINDER_COMPLEX_MODE_COMPONENT , SIM_REMAINDER_COMPLEX_MODE_POLAR }
	Complex processing mode for remainder operator. More...

Functions
SimResult	sim_add_remainder_operator (struct SimContext *context, const SimRemainderOperatorConfig *config, size_t *out_index)
	Register a remainder operator that measures f(warped) - f(reference).
SimResult	sim_remainder_config (struct SimContext *context, size_t operator_index, SimRemainderOperatorConfig *out_config)
	Copy the current remainder configuration from a registered operator.
SimResult	sim_remainder_update (struct SimContext *context, size_t operator_index, const SimRemainderOperatorConfig *config)
	Replace or renormalize a registered remainder configuration.

Detailed Description

Remainder operator measuring f(warped) - f(reference) with optional accumulation.

Supports nonlinear transforms (abs, log_abs, power, tanh, identity) applied prior to differencing and works with real or complex fields (component-wise for complex). Weight and bias are applied after computing the residue. Accumulation optionally adds into the existing output field.

Complex field support: component-wise or polar mode (magnitude residue along warped phase).

Enumeration Type Documentation

SimRemainderComplexMode

enum SimRemainderComplexMode

Complex processing mode for remainder operator.

Enumerator
SIM_REMAINDER_COMPLEX_MODE_COMPONENT	Process real and imaginary parts independently.
SIM_REMAINDER_COMPLEX_MODE_POLAR	Magnitude residue written along warped phase direction.

SimRemainderNonlinearity

enum SimRemainderNonlinearity

Available nonlinearities applied before differencing.

Enumerator
SIM_REMAINDER_NONLINEARITY_IDENTITY	Identity transform.
SIM_REMAINDER_NONLINEARITY_ABS	Absolute-value transform.
SIM_REMAINDER_NONLINEARITY_LOG_ABS	Log-magnitude transform.
SIM_REMAINDER_NONLINEARITY_POWER	Power-law transform.
SIM_REMAINDER_NONLINEARITY_TANH	Hyperbolic tangent transform.

Function Documentation

sim_add_remainder_operator()

SimResult sim_add_remainder_operator	(	struct SimContext *	context,
		const SimRemainderOperatorConfig *	config,
		size_t *	out_index
	)

Register a remainder operator that measures f(warped) - f(reference).

Parameters

	context	Simulation context that will own the operator.
	config	Optional remainder configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, field/type compatibility checks, allocation, kernel registration, or split registration.

sim_remainder_config()

SimResult sim_remainder_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimRemainderOperatorConfig *	out_config
	)

Copy the current remainder configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_remainder_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no remainder state.

sim_remainder_update()

SimResult sim_remainder_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimRemainderOperatorConfig *	config
	)

Replace or renormalize a registered remainder configuration.

Passing NULL for config keeps the current configuration and reapplies normalization. A successful update refreshes symbolic metadata and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the remainder operator to update.
config	Optional replacement remainder configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for a NULL context, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no remainder state.
