ridged_noise.h File Reference

Ridged fractal stimulus built from a centered squared ridge profile. More...

#include "coords.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>

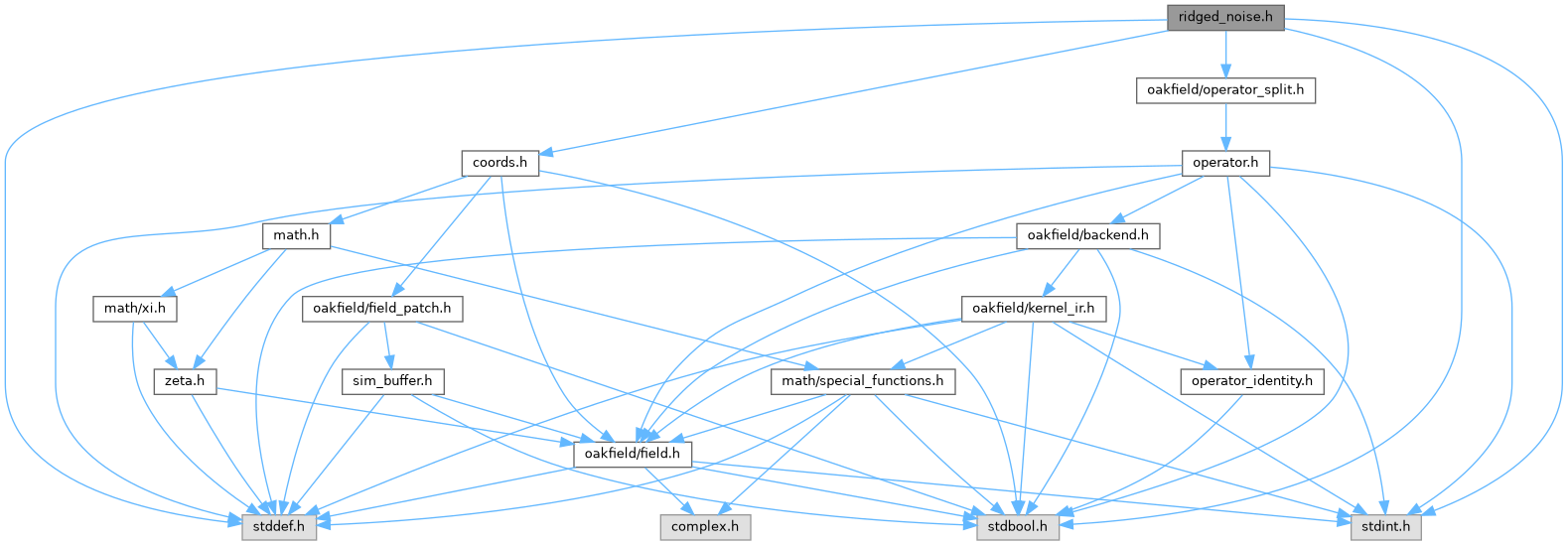

Include dependency graph for ridged_noise.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusRidgedNoiseConfig
	Configuration for seeded ridged fractal noise stimuli. More...

Typedefs
typedef struct SimStimulusRidgedNoiseConfig	SimStimulusRidgedNoiseConfig
	Configuration for seeded ridged fractal noise stimuli.

Functions
SimResult	sim_add_stimulus_ridged_noise_operator (struct SimContext *context, const SimStimulusRidgedNoiseConfig *config, size_t *out_index)
	Register a ridged fractal noise stimulus operator.
SimResult	sim_stimulus_ridged_noise_config (struct SimContext *context, size_t operator_index, SimStimulusRidgedNoiseConfig *out_config)
	Copy the current ridged-noise configuration from a registered operator.
SimResult	sim_stimulus_ridged_noise_update (struct SimContext *context, size_t operator_index, const SimStimulusRidgedNoiseConfig *config)
	Replace or renormalize a registered ridged-noise stimulus configuration.

Detailed Description

Ridged fractal stimulus built from a centered squared ridge profile.

Synthesizes narrow multi-octave ridges using R(x) = sum_o A 2^{-H o} ((1 - |cos(2*pi*lambda^o*x + phi_o)|)^2 - mean_r).

For complex fields, the imaginary channel uses the corresponding centered squared ridge profile of the sine basis.

Function Documentation

sim_add_stimulus_ridged_noise_operator()

SimResult sim_add_stimulus_ridged_noise_operator	(	struct SimContext *	context,
		const SimStimulusRidgedNoiseConfig *	config,
		size_t *	out_index
	)

Register a ridged fractal noise stimulus operator.

The implementation copies and normalizes config, initializes octave phases from the configured seed, and registers the ridged-noise operator.

Parameters

	context	Simulation context that will own the operator.
	config	Optional ridged-noise configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, octave setup, or split-operator registration.

sim_stimulus_ridged_noise_config()

SimResult sim_stimulus_ridged_noise_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusRidgedNoiseConfig *	out_config
	)

Copy the current ridged-noise configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_ridged_noise_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_ridged_noise_update()

SimResult sim_stimulus_ridged_noise_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusRidgedNoiseConfig *	config
	)

Replace or renormalize a registered ridged-noise stimulus configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update refreshes octave data and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the ridged-noise operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup, octave setup, or state validation fails.
