scale.h File Reference

Utility operator that writes a scaled copy of one field to another field. More...

#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

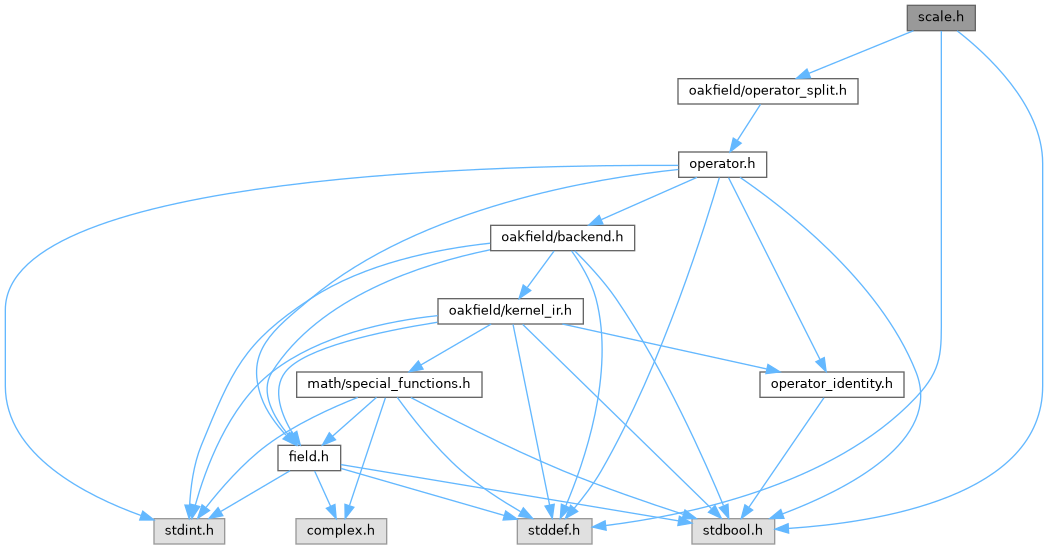

Include dependency graph for scale.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimScaleOperatorConfig
	Configuration for scaling one compatible field into another. More...

Typedefs
typedef struct SimScaleOperatorConfig	SimScaleOperatorConfig
	Configuration for scaling one compatible field into another.

Functions
SimResult	sim_add_scale_operator (struct SimContext *context, const SimScaleOperatorConfig *config, size_t *out_index)
	Register a scale utility operator.
SimResult	sim_scale_config (struct SimContext *context, size_t operator_index, SimScaleOperatorConfig *out_config)
	Copy the current configuration from a registered scale operator.
SimResult	sim_scale_update (struct SimContext *context, size_t operator_index, const SimScaleOperatorConfig *config)
	Replace the configuration of a registered scale operator.

Detailed Description

Utility operator that writes a scaled copy of one field to another field.

The scale operator supports real double and complex double fields with matching layouts and scalar domains. It can overwrite or accumulate into the destination.

Function Documentation

sim_add_scale_operator()

SimResult sim_add_scale_operator	(	struct SimContext *	context,
		const SimScaleOperatorConfig *	config,
		size_t *	out_index
	)

Register a scale utility operator.

The implementation copies and normalizes config, resolves the default scale-by-dt policy, and validates matching real-double or complex-double fields.

Parameters

	context	Simulation context that will own the operator.
	config	Optional scale configuration; NULL selects zero-initialized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL context or invalid fields, SIM_RESULT_TYPE_MISMATCH for incompatible fields, SIM_RESULT_OUT_OF_MEMORY on allocation failure, or a registration error.

sim_scale_config()

SimResult sim_scale_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimScaleOperatorConfig *	out_config
	)

Copy the current configuration from a registered scale operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_scale_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no scale state.

sim_scale_update()

SimResult sim_scale_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimScaleOperatorConfig *	config
	)

Replace the configuration of a registered scale operator.

config is required. The replacement is normalized and the referenced fields are validated before it is stored.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the scale operator to update.
config	Replacement scale configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL inputs or invalid fields, SIM_RESULT_NOT_FOUND for a missing operator, SIM_RESULT_INVALID_STATE for missing state, or SIM_RESULT_TYPE_MISMATCH for incompatible field domains.
