sieve.h File Reference

Discrete convolution-based filtering on real or complex fields. More...

#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

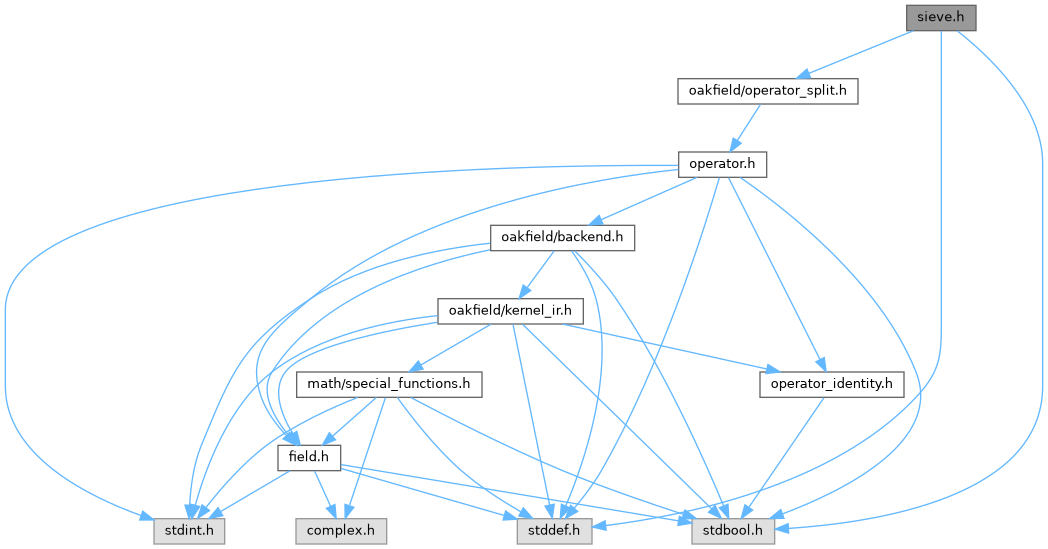

Include dependency graph for sieve.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimSieveOperatorConfig
	Configuration parameters for the sieve operator family. More...

Typedefs
typedef enum SimSieveMode	SimSieveMode
	Available response shapes for the sieve operator.
typedef struct SimSieveOperatorConfig	SimSieveOperatorConfig
	Configuration parameters for the sieve operator family.

Enumerations
enum	SimSieveMode {   SIM_SIEVE_MODE_LOW_PASS = 0 , SIM_SIEVE_MODE_HIGH_PASS , SIM_SIEVE_MODE_BAND_PASS_DOG , SIM_SIEVE_MODE_BAND_STOP_DOG ,   SIM_SIEVE_MODE_SAVGOL_SMOOTH , SIM_SIEVE_MODE_SAVGOL_DERIVATIVE , SIM_SIEVE_MODE_HANN_LOW_PASS , SIM_SIEVE_MODE_HANN_HIGH_PASS ,   SIM_SIEVE_MODE_BLACKMAN_LOW_PASS , SIM_SIEVE_MODE_BLACKMAN_HIGH_PASS , SIM_SIEVE_MODE_TUKEY_LOW_PASS , SIM_SIEVE_MODE_TUKEY_HIGH_PASS }
	Available response shapes for the sieve operator. More...

Functions
SimResult	sim_add_sieve_operator (struct SimContext *context, const SimSieveOperatorConfig *config, size_t *out_index)
	Register a sieve filtering operator with the provided configuration.
SimResult	sim_sieve_config (struct SimContext *context, size_t operator_index, SimSieveOperatorConfig *out_config)
	Retrieve the configuration currently bound to a sieve operator.
SimResult	sim_sieve_update (struct SimContext *context, size_t operator_index, const SimSieveOperatorConfig *config)
	Update an existing sieve operator in-place.

Detailed Description

Discrete convolution-based filtering on real or complex fields.

Supports Gaussian, difference-of-Gaussians, Savitzky-Golay, and windowed responses. Complex support is component-wise (Re/Im filtered independently).

Enumeration Type Documentation

SimSieveMode

enum SimSieveMode

Available response shapes for the sieve operator.

Enumerator
SIM_SIEVE_MODE_LOW_PASS	Gaussian-like low-pass response.
SIM_SIEVE_MODE_HIGH_PASS	High-pass response.
SIM_SIEVE_MODE_BAND_PASS_DOG	Difference-of-Gaussians band-pass response.
SIM_SIEVE_MODE_BAND_STOP_DOG	Difference-of-Gaussians band-stop response.
SIM_SIEVE_MODE_SAVGOL_SMOOTH	Savitzky-Golay smoothing response.
SIM_SIEVE_MODE_SAVGOL_DERIVATIVE	Savitzky-Golay derivative response.
SIM_SIEVE_MODE_HANN_LOW_PASS	Hann-windowed low-pass response.
SIM_SIEVE_MODE_HANN_HIGH_PASS	Hann-windowed high-pass response.
SIM_SIEVE_MODE_BLACKMAN_LOW_PASS	Blackman-windowed low-pass response.
SIM_SIEVE_MODE_BLACKMAN_HIGH_PASS	Blackman-windowed high-pass response.
SIM_SIEVE_MODE_TUKEY_LOW_PASS	Tukey-windowed low-pass response.
SIM_SIEVE_MODE_TUKEY_HIGH_PASS	Tukey-windowed high-pass response.

Function Documentation

sim_add_sieve_operator()

SimResult sim_add_sieve_operator	(	struct SimContext *	context,
		const SimSieveOperatorConfig *	config,
		size_t *	out_index
	)

Register a sieve filtering operator with the provided configuration.

Parameters

	context	Simulation context that will own the operator.
	config	Optional sieve configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, kernel construction, field compatibility checks, allocation, or registration.

sim_sieve_config()

SimResult sim_sieve_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimSieveOperatorConfig *	out_config
	)

Retrieve the configuration currently bound to a sieve operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_sieve_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no sieve state.

sim_sieve_update()

SimResult sim_sieve_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimSieveOperatorConfig *	config
	)

Update an existing sieve operator in-place.

Passing NULL for config keeps the current configuration and reapplies normalization. A successful update rebuilds the filter kernel and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the sieve operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code from lookup, kernel construction, field compatibility checks, or state validation.
