sim_field_topology_runtime.h File Reference

Runtime cache and texture-packing state for field-topology extraction. More...

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include "field.h"
#include "sim_field_topology.h"

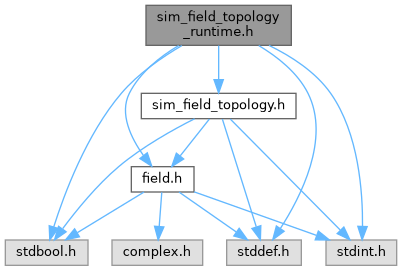

Include dependency graph for sim_field_topology_runtime.h:

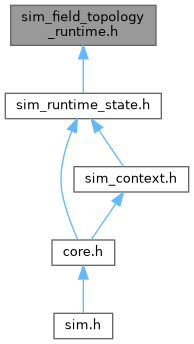

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimFieldTopologyWorkspace
	Scratch arrays reserved for topology cache and future graph-style passes. More...
struct	SimFieldTopologyRuntimeState
	Reusable runtime state for one field's topology cache. More...

Typedefs
typedef struct SimFieldTopologyWorkspace	SimFieldTopologyWorkspace
	Scratch arrays reserved for topology cache and future graph-style passes.
typedef struct SimFieldTopologyRuntimeState	SimFieldTopologyRuntimeState
	Reusable runtime state for one field's topology cache.

Functions
void	sim_field_topology_runtime_init (SimFieldTopologyRuntimeState *state)
	Initialize runtime topology state with default configuration.
void	sim_field_topology_runtime_reset (SimFieldTopologyRuntimeState *state)
	Invalidate cached topology while retaining allocated buffers.
void	sim_field_topology_runtime_mark_dirty (SimFieldTopologyRuntimeState *state)
	Mark cached topology stale.
SimResult	sim_field_topology_runtime_resize (SimFieldTopologyRuntimeState *state, size_t width, size_t height)
	Ensure cached cell and workspace storage can hold a topology grid.
void	sim_field_topology_runtime_free (SimFieldTopologyRuntimeState *state)
	Free cached topology buffers and reinitialize the state.
bool	sim_field_topology_runtime_recompute (SimFieldTopologyRuntimeState *state, const struct SimField *field, size_t step_index)
	Recompute cached topology when enabled, dirty, or past the cadence interval.
bool	sim_field_topology_runtime_pack_rgba8 (SimFieldTopologyRuntimeState *state, uint8_t *dest, size_t capacity, size_t *out_width, size_t *out_height, size_t *out_bytes)
	Pack cached topology cells into an RGBA8 image.

Detailed Description

Runtime cache and texture-packing state for field-topology extraction.

SimFieldTopologyRuntimeState keeps reusable cell storage, scratch arrays, cadence counters, and a packed-summary cache for context-owned fields. Callers mark the state dirty when the source field changes and request recomputation on demand.

Function Documentation

sim_field_topology_runtime_free()

void sim_field_topology_runtime_free

(

SimFieldTopologyRuntimeState *

state

)

Free cached topology buffers and reinitialize the state.

Parameters

state

State object to free; ignored when NULL.

sim_field_topology_runtime_init()

void sim_field_topology_runtime_init

(

SimFieldTopologyRuntimeState *

state

)

Initialize runtime topology state with default configuration.

Parameters

[out]

state

State object to initialize; ignored when NULL.

sim_field_topology_runtime_mark_dirty()

void sim_field_topology_runtime_mark_dirty

(

SimFieldTopologyRuntimeState *

state

)

Mark cached topology stale.

Parameters

state

State object to mark; ignored when NULL.

sim_field_topology_runtime_pack_rgba8()

bool sim_field_topology_runtime_pack_rgba8	(	SimFieldTopologyRuntimeState *	state,
		uint8_t *	dest,
		size_t	capacity,
		size_t *	out_width,
		size_t *	out_height,
		size_t *	out_bytes
	)

Pack cached topology cells into an RGBA8 image.

Parameters

	state	Runtime cache state with valid topology.
[out]	dest	Destination byte buffer.
	capacity	Destination capacity in bytes.
[out]	out_width	Optional packed image width.
[out]	out_height	Optional packed image height.
[out]	out_bytes	Optional number of bytes written.

Returns

true when the cache was valid and dest had enough capacity.

sim_field_topology_runtime_recompute()

bool sim_field_topology_runtime_recompute	(	SimFieldTopologyRuntimeState *	state,
		const struct SimField *	field,
		size_t	step_index
	)

Recompute cached topology when enabled, dirty, or past the cadence interval.

Parameters

state	Runtime cache state.
field	Source field to inspect.
step_index	Current simulation step index.

Returns

true when the cache is valid after the request.

sim_field_topology_runtime_reset()

void sim_field_topology_runtime_reset

(

SimFieldTopologyRuntimeState *

state

)

Invalidate cached topology while retaining allocated buffers.

Parameters

state

State object to reset; ignored when NULL.

sim_field_topology_runtime_resize()

SimResult sim_field_topology_runtime_resize	(	SimFieldTopologyRuntimeState *	state,
		size_t	width,
		size_t	height
	)

Ensure cached cell and workspace storage can hold a topology grid.

Parameters

state	State object to resize.
width	Required topology width.
height	Required topology height.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL state, or SIM_RESULT_OUT_OF_MEMORY when allocation fails.
