Flux lens state and skew-Burgers flux utilities. More...

#include <complex.h>
#include <stdbool.h>
#include <stddef.h>
#include "field.h"
#include "operators/common/fft_plan.h"

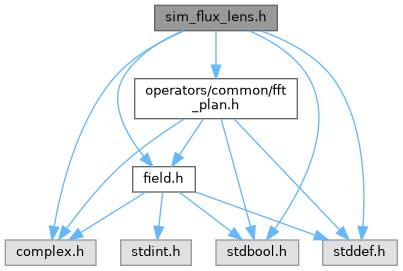

Include dependency graph for sim_flux_lens.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	FluxMarks
	Spectral flux landmarks computed from the latest flux-lens analysis. More...

struct	FluxLensState
	Persistent flux-lens band state and analysis buffers for a simulation context. More...

struct	FluxLensWorkspace
	Scratch workspace used while computing and reconstructing flux-lens bands. More...

Typedefs
typedef struct FluxMarks	FluxMarks
	Spectral flux landmarks computed from the latest flux-lens analysis.

typedef struct FluxLensState	FluxLensState
	Persistent flux-lens band state and analysis buffers for a simulation context.

typedef struct FluxLensWorkspace	FluxLensWorkspace
	Scratch workspace used while computing and reconstructing flux-lens bands.

Functions
void	flux_lens_init (FluxLensState *lens)

void	flux_lens_workspace_init (FluxLensWorkspace *workspace)

void	flux_lens_force_refresh (FluxLensState *lens)

void	flux_lens_set_field_index (FluxLensState *lens, size_t field_index)

void	flux_lens_scale_width (FluxLensState *lens, double scale)

void	flux_lens_shift_center (FluxLensState *lens, double shift)

void	flux_lens_set_band (FluxLensState *lens, double band_lo, double band_hi)

SimResult	flux_lens_ensure_capacity (FluxLensState lens, FluxLensWorkspace workspace, struct SimContext *context, size_t length)

void	flux_lens_release (FluxLensState lens, FluxLensWorkspace workspace, struct SimContext *context)

bool	flux_compute (const struct SimField field, FluxLensState lens, FluxLensWorkspace workspace, struct SimContext context)

void	flux_lens_after_flux (FluxLensState *lens)

void	flux_lens_update_targets_from_marks (FluxLensState *lens)

void	flux_lens_relax_band (FluxLensState *lens)

bool	flux_lens_reconstruct (const struct SimField field, FluxLensState lens, FluxLensWorkspace *workspace)

void	flux_lens_update (struct SimContext *context)

double	flux_total_work (const double *S, size_t length)

double	flux_total_energy (const double complex *u_hat, size_t length)

void	flux_release_scratch (FluxLensWorkspace workspace, struct SimContext context)

Detailed Description

Flux lens state and skew-Burgers flux utilities.

Typedef Documentation

Persistent flux-lens band state and analysis buffers for a simulation context.

The state owns band spectra, physical reconstructions, and bucket arrays after flux_lens_ensure_capacity(); release them with flux_lens_release().

Scratch workspace used while computing and reconstructing flux-lens bands.

The workspace owns temporary buffers and its FFT plan after capacity is ensured; release them with flux_release_scratch() or flux_lens_release().
