sim_profiler.h File Reference

Lightweight performance profiler for libsimcore runtime execution. More...

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include "field.h"

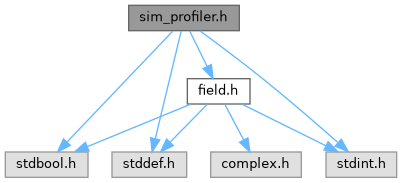

Include dependency graph for sim_profiler.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimProfilerSnapshot
	Snapshot of accumulated frame statistics. More...
struct	SimProfilerCounter
	Per-operator statistics tracked during profiling. More...
struct	SimProfiler
	Profiler state used by the runtime scheduler. More...

Typedefs
typedef struct SimProfilerSnapshot	SimProfilerSnapshot
	Snapshot of accumulated frame statistics.
typedef struct SimProfilerCounter	SimProfilerCounter
	Per-operator statistics tracked during profiling.
typedef struct SimProfiler	SimProfiler
	Profiler state used by the runtime scheduler.

Functions
SimResult	sim_profiler_init (SimProfiler *profiler, size_t operators)
	Initialize the profiler for operators tracked counters.
void	sim_profiler_destroy (SimProfiler *profiler)
	Release resources held by the profiler.
void	sim_profiler_begin_frame (SimProfiler *profiler)
	Begin a new profiling frame.
void	sim_profiler_end_frame (SimProfiler *profiler)
	Complete the active profiling frame.
void	sim_profiler_record_operator (SimProfiler *profiler, size_t operator_index, uint64_t duration_ns)
	Record the execution time for an operator.
void	sim_profiler_record_operator_delta (SimProfiler *profiler, size_t operator_index, double delta_rms, uint64_t sample_count)
	Record a delta RMS contribution for an operator.
SimResult	sim_profiler_snapshot (const SimProfiler *profiler, SimProfilerSnapshot *out_snapshot)
	Populate a snapshot of the most recent frame statistics.

Detailed Description

Lightweight performance profiler for libsimcore runtime execution.

Function Documentation

sim_profiler_begin_frame()

void sim_profiler_begin_frame

(

SimProfiler *

profiler

)

Begin a new profiling frame.

Parameters

profiler

Profiler instance.

sim_profiler_destroy()

void sim_profiler_destroy

(

SimProfiler *

profiler

)

Release resources held by the profiler.

Parameters

profiler

Profiler instance; may be NULL.

sim_profiler_end_frame()

void sim_profiler_end_frame

(

SimProfiler *

profiler

)

Complete the active profiling frame.

Parameters

profiler

Profiler instance.

sim_profiler_init()

SimResult sim_profiler_init	(	SimProfiler *	profiler,
		size_t	operators
	)

Initialize the profiler for operators tracked counters.

Parameters

[out]	profiler	Profiler instance to initialize.
	operators	Number of operators to track.

Returns

SIM_RESULT_OK on success or an error code otherwise.

sim_profiler_record_operator()

void sim_profiler_record_operator	(	SimProfiler *	profiler,
		size_t	operator_index,
		uint64_t	duration_ns
	)

Record the execution time for an operator.

Parameters

profiler	Profiler instance.
operator_index	Index of the operator within the execution plan.
duration_ns	Execution duration in nanoseconds.

sim_profiler_record_operator_delta()

void sim_profiler_record_operator_delta	(	SimProfiler *	profiler,
		size_t	operator_index,
		double	delta_rms,
		uint64_t	sample_count
	)

Record a delta RMS contribution for an operator.

Parameters

profiler	Profiler instance.
operator_index	Index of the operator within the plan.
delta_rms	Root-mean-square of the operator's field change (single sample or aggregated).
sample_count	Number of samples used to estimate delta_rms.

sim_profiler_snapshot()

SimResult sim_profiler_snapshot	(	const SimProfiler *	profiler,
		SimProfilerSnapshot *	out_snapshot
	)

Populate a snapshot of the most recent frame statistics.

Parameters

	profiler	Profiler instance.
[out]	out_snapshot	Destination snapshot structure.

Returns

SIM_RESULT_OK when data is available, otherwise SIM_RESULT_INVALID_ARGUMENT.
