Dynamic runtime state for simulations. More...

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include "field.h"
#include "sim_field_stats_runtime.h"
#include "sim_field_topology_runtime.h"
#include "sim_flux_lens.h"

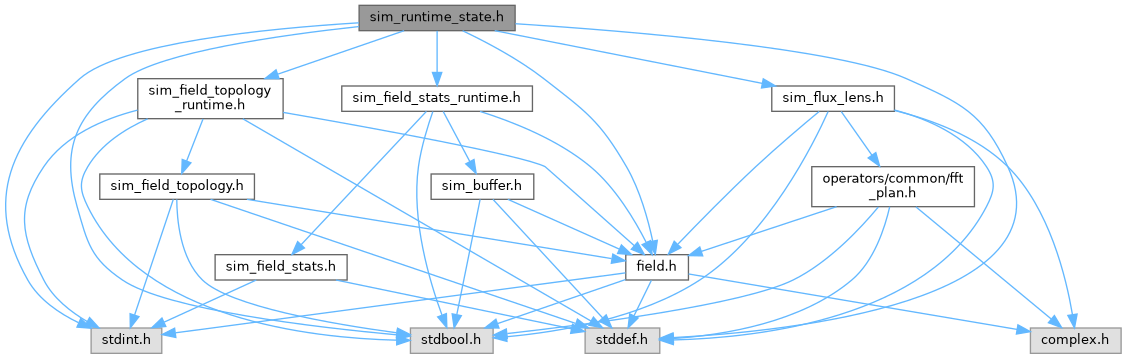

Include dependency graph for sim_runtime_state.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimRuntimeComplexSample
	Complex sample stored in runtime visualization and drift caches. More...

struct	SimRuntimePhasePortraitMetrics
	Bounds and aggregate radii for phase-portrait visualization samples. More...

struct	SimRuntimeWaveformSampleStats
	Min/max summary for downsampled waveform visualization data. More...

struct	SimStepMetrics
	Aggregated metrics captured once per completed integration step. More...

struct	SimRuntimeLoopError
	Structured record of the most recent loop/runtime failure. More...

struct	SimRuntimeLoopProgress
	Snapshot of caller-owned loop progress and declared budgets. More...

struct	SimRuntimeState
	Runtime parameters and integration state. More...

Macros
#define	SIM_RUNTIME_DEFAULT_DT 0.0166667f

#define	SIM_RUNTIME_VIS_DOWNSAMPLE_TARGET_DEFAULT 4096U

#define	SIM_RUNTIME_VIS_DOWNSAMPLE_MAX_DEFAULT 16384U

#define	SIM_RUNTIME_VIS_DOWNSAMPLE_TARGET_MIN 64U

#define	SIM_RUNTIME_VIS_DOWNSAMPLE_TARGET_MAX 65536U

#define	SIM_STEP_METRIC_HISTORY 128U

Typedefs
typedef struct SimRuntimeComplexSample	SimRuntimeComplexSample
	Complex sample stored in runtime visualization and drift caches.

typedef struct SimRuntimePhasePortraitMetrics	SimRuntimePhasePortraitMetrics
	Bounds and aggregate radii for phase-portrait visualization samples.

typedef struct SimRuntimeWaveformSampleStats	SimRuntimeWaveformSampleStats
	Min/max summary for downsampled waveform visualization data.

typedef enum SimTimeModel	SimTimeModel
	Time evolution model for the simulation.

typedef struct SimStepMetrics	SimStepMetrics
	Aggregated metrics captured once per completed integration step.

typedef enum SimRuntimeLoopStopReason	SimRuntimeLoopStopReason
	Last observed terminal/non-running reason for a managed loop.

typedef enum SimRuntimeLoopErrorSource	SimRuntimeLoopErrorSource
	Origin of the most recent loop/runtime failure.

typedef struct SimRuntimeLoopError	SimRuntimeLoopError
	Structured record of the most recent loop/runtime failure.

typedef enum SimRuntimeCallerStepMode	SimRuntimeCallerStepMode
	Most recent caller-owned stepping primitive observed on the context.

typedef enum SimRuntimeLoopProgressKind	SimRuntimeLoopProgressKind
	Kind of caller-owned bounded loop currently being observed.

typedef struct SimRuntimeLoopProgress	SimRuntimeLoopProgress
	Snapshot of caller-owned loop progress and declared budgets.

typedef struct SimRuntimeState	SimRuntimeState
	Runtime parameters and integration state.

Enumerations
enum	SimTimeModel { SIM_TIME_MODEL_CONTINUOUS , SIM_TIME_MODEL_MAP = 1 }
	Time evolution model for the simulation. More...

enum	SimRuntimeLoopStopReason { SIM_RUNTIME_LOOP_STOP_REASON_NONE = 0 , SIM_RUNTIME_LOOP_STOP_REASON_PAUSED , SIM_RUNTIME_LOOP_STOP_REASON_CANCELLED , SIM_RUNTIME_LOOP_STOP_REASON_STEPS_EXHAUSTED , SIM_RUNTIME_LOOP_STOP_REASON_MAX_SIM_TIME_REACHED , SIM_RUNTIME_LOOP_STOP_REASON_MAX_WALL_MS_REACHED , SIM_RUNTIME_LOOP_STOP_REASON_RUNTIME_ERROR }
	Last observed terminal/non-running reason for a managed loop. More...

enum	SimRuntimeLoopErrorSource { SIM_RUNTIME_LOOP_ERROR_SOURCE_NONE = 0 , SIM_RUNTIME_LOOP_ERROR_SOURCE_SCHEDULER_STEP , SIM_RUNTIME_LOOP_ERROR_SOURCE_EXECUTION_FRAME , SIM_RUNTIME_LOOP_ERROR_SOURCE_OPERATOR_EXECUTION , SIM_RUNTIME_LOOP_ERROR_SOURCE_INTEGRATOR_BRIDGE , SIM_RUNTIME_LOOP_ERROR_SOURCE_INTEGRATOR_SEQUENCE , SIM_RUNTIME_LOOP_ERROR_SOURCE_LEGACY_STEP }
	Origin of the most recent loop/runtime failure. More...

enum	SimRuntimeCallerStepMode { SIM_RUNTIME_CALLER_STEP_MODE_NONE = 0 , SIM_RUNTIME_CALLER_STEP_MODE_MANUAL_STEP , SIM_RUNTIME_CALLER_STEP_MODE_INTEGRATOR_STEP }
	Most recent caller-owned stepping primitive observed on the context. More...

enum	SimRuntimeLoopProgressKind { SIM_RUNTIME_LOOP_PROGRESS_NONE = 0 , SIM_RUNTIME_LOOP_PROGRESS_RUN_STEPS , SIM_RUNTIME_LOOP_PROGRESS_RUN_UNTIL , SIM_RUNTIME_LOOP_PROGRESS_RUN_INTEGRATOR_STEPS , SIM_RUNTIME_LOOP_PROGRESS_RUN_UNTIL_INTEGRATOR , SIM_RUNTIME_LOOP_PROGRESS_RUN_PARAMETER_SWEEP , SIM_RUNTIME_LOOP_PROGRESS_RUN_PARAMETER_GRID , SIM_RUNTIME_LOOP_PROGRESS_RUN_PARAMETER_CONTINUATION }
	Kind of caller-owned bounded loop currently being observed. More...

Functions
SimResult	sim_runtime_state_init (SimRuntimeState *state)
	Initialize runtime state with defaults.

void	sim_runtime_state_release_continuity_buffers (SimRuntimeState *state)
	Release continuity buffer allocations.

SimResult	sim_runtime_state_ensure_continuity_capacity (SimRuntimeState *state, size_t required)
	Ensure continuity counters can index at least `required` fields.

void	sim_runtime_state_destroy (SimRuntimeState *state)
	Destroy runtime state and release resources.

void	sim_runtime_state_record_step_metrics (SimRuntimeState state, const SimStepMetrics metrics)
	Append a step metrics sample to the runtime ring buffer.

bool	sim_runtime_state_latest_step_metrics (const SimRuntimeState state, SimStepMetrics out_metrics)
	Copy the most recent step metrics sample.

size_t	sim_runtime_state_copy_step_metrics (const SimRuntimeState state, SimStepMetrics dest, size_t capacity)
	Copy up to `capacity` samples into `dest` ordered from oldest to newest.

void	sim_runtime_state_set_pending_cancel (SimRuntimeState *state, bool pending)
	Mark whether a scheduler-owned cancel is in progress.

bool	sim_runtime_state_pending_cancel (const SimRuntimeState *state)
	Read the current pending-cancel flag.

void	sim_runtime_state_set_last_stop_reason (SimRuntimeState *state, SimRuntimeLoopStopReason reason)
	Record the most recent loop stop reason.

SimRuntimeLoopStopReason	sim_runtime_state_last_stop_reason (const SimRuntimeState *state)
	Fetch the most recent loop stop reason.

void	sim_runtime_state_clear_loop_error (SimRuntimeState *state)
	Clear the most recent loop/runtime error record.

void	sim_runtime_state_record_loop_error (SimRuntimeState *state, SimResult code, SimRuntimeLoopErrorSource source, size_t step_index)
	Record the most recent loop/runtime error.

bool	sim_runtime_state_last_loop_error (const SimRuntimeState state, SimRuntimeLoopError out_error)
	Fetch the most recent loop/runtime error.

void	sim_runtime_state_note_caller_step (SimRuntimeState *state, SimRuntimeCallerStepMode mode)
	Record a successful caller-owned step primitive.

void	sim_runtime_state_clear_caller_step_history (SimRuntimeState *state)
	Clear descriptive caller-owned step history.

SimRuntimeCallerStepMode	sim_runtime_state_last_caller_step_mode (const SimRuntimeState *state)
	Fetch the last caller-owned step primitive observed.

size_t	sim_runtime_state_caller_step_streak (const SimRuntimeState *state)
	Fetch the consecutive caller-owned step streak.

void	sim_runtime_state_acquire_external_driver (SimRuntimeState *state)
	Acquire a caller-owned external-driver claim.

void	sim_runtime_state_release_external_driver (SimRuntimeState *state)
	Release one caller-owned external-driver claim.

void	sim_runtime_state_clear_external_driver (SimRuntimeState *state)
	Clear all caller-owned external-driver claims.

size_t	sim_runtime_state_external_driver_depth (const SimRuntimeState *state)
	Report the current nested external-driver claim depth.

void	sim_runtime_state_set_loop_progress (SimRuntimeState state, const SimRuntimeLoopProgress progress)
	Replace the current caller-owned loop progress snapshot.

void	sim_runtime_state_clear_loop_progress (SimRuntimeState *state)
	Clear the current caller-owned loop progress snapshot.

bool	sim_runtime_state_loop_progress (const SimRuntimeState state, SimRuntimeLoopProgress out_progress)
	Fetch the current caller-owned loop progress snapshot.

bool	sim_runtime_state_last_loop_progress (const SimRuntimeState state, SimRuntimeLoopProgress out_progress)
	Fetch the most recent completed caller-owned loop progress snapshot.

void	sim_runtime_state_clear_last_loop_progress (SimRuntimeState *state)
	Clear any retained completed caller-owned loop progress snapshot.

const char *	sim_runtime_loop_stop_reason_name (SimRuntimeLoopStopReason reason)
	Convert a loop stop reason to a stable machine-readable name.

const char *	sim_runtime_loop_error_source_name (SimRuntimeLoopErrorSource source)
	Convert a loop error source to a stable machine-readable name.

const char *	sim_runtime_caller_step_mode_name (SimRuntimeCallerStepMode mode)
	Convert a caller-owned step mode to a stable machine-readable name.

const char *	sim_runtime_loop_progress_kind_name (SimRuntimeLoopProgressKind kind)
	Convert a loop-progress kind to a stable machine-readable name.

Detailed Description

Dynamic runtime state for simulations.

Macro Definition Documentation

◆ SIM_STEP_METRIC_HISTORY

#define SIM_STEP_METRIC_HISTORY 128U

Number of per-step samples preserved in the runtime ring buffer.

Typedef Documentation

◆ SimRuntimeCallerStepMode

typedef enum SimRuntimeCallerStepMode SimRuntimeCallerStepMode

Most recent caller-owned stepping primitive observed on the context.

This stays intentionally local to the runtime/runner and does not imply a managed scheduler-owned loop. It is used only for descriptive driver-state reporting.

◆ SimTimeModel

typedef enum SimTimeModel SimTimeModel

Time evolution model for the simulation.

SIM_TIME_MODEL_CONTINUOUS: dt refinement should converge (ODE/PDE flows). SIM_TIME_MODEL_MAP: dt is part of the discrete map; refinement changes the model.

Enumeration Type Documentation

◆ SimRuntimeCallerStepMode

enum SimRuntimeCallerStepMode

Most recent caller-owned stepping primitive observed on the context.

This stays intentionally local to the runtime/runner and does not imply a managed scheduler-owned loop. It is used only for descriptive driver-state reporting.

Enumerator
SIM_RUNTIME_CALLER_STEP_MODE_NONE	No caller-owned step observed.
SIM_RUNTIME_CALLER_STEP_MODE_MANUAL_STEP	Context manual-step path observed.
SIM_RUNTIME_CALLER_STEP_MODE_INTEGRATOR_STEP	Integrator-owned step path observed.

◆ SimRuntimeLoopErrorSource

enum SimRuntimeLoopErrorSource

Origin of the most recent loop/runtime failure.

Enumerator
SIM_RUNTIME_LOOP_ERROR_SOURCE_NONE	No error source has been recorded.
SIM_RUNTIME_LOOP_ERROR_SOURCE_SCHEDULER_STEP	Scheduler step dispatch failed.
SIM_RUNTIME_LOOP_ERROR_SOURCE_EXECUTION_FRAME	Execution-frame setup failed.
SIM_RUNTIME_LOOP_ERROR_SOURCE_OPERATOR_EXECUTION	Operator execution failed.
SIM_RUNTIME_LOOP_ERROR_SOURCE_INTEGRATOR_BRIDGE	Integrator bridge failed.
SIM_RUNTIME_LOOP_ERROR_SOURCE_INTEGRATOR_SEQUENCE	Integrator sequence failed.
SIM_RUNTIME_LOOP_ERROR_SOURCE_LEGACY_STEP	Legacy stepping path failed.

◆ SimRuntimeLoopProgressKind

enum SimRuntimeLoopProgressKind

Kind of caller-owned bounded loop currently being observed.

Enumerator
SIM_RUNTIME_LOOP_PROGRESS_NONE	No bounded loop is active.
SIM_RUNTIME_LOOP_PROGRESS_RUN_STEPS	sim_context_run_steps-style loop.
SIM_RUNTIME_LOOP_PROGRESS_RUN_UNTIL	sim_context_run_until-style loop.
SIM_RUNTIME_LOOP_PROGRESS_RUN_INTEGRATOR_STEPS	Integrator-step-count loop.
SIM_RUNTIME_LOOP_PROGRESS_RUN_UNTIL_INTEGRATOR	Integrator run-until loop.
SIM_RUNTIME_LOOP_PROGRESS_RUN_PARAMETER_SWEEP	Parameter sweep loop.
SIM_RUNTIME_LOOP_PROGRESS_RUN_PARAMETER_GRID	Parameter grid loop.
SIM_RUNTIME_LOOP_PROGRESS_RUN_PARAMETER_CONTINUATION	Parameter continuation loop.

◆ SimRuntimeLoopStopReason

enum SimRuntimeLoopStopReason

Last observed terminal/non-running reason for a managed loop.

Enumerator
SIM_RUNTIME_LOOP_STOP_REASON_NONE	No terminal reason has been recorded.
SIM_RUNTIME_LOOP_STOP_REASON_PAUSED	Loop stopped because execution was paused.
SIM_RUNTIME_LOOP_STOP_REASON_CANCELLED	Loop stopped because cancellation was requested.
SIM_RUNTIME_LOOP_STOP_REASON_STEPS_EXHAUSTED	Loop consumed its step budget.
SIM_RUNTIME_LOOP_STOP_REASON_MAX_SIM_TIME_REACHED	Simulation-time budget reached.
SIM_RUNTIME_LOOP_STOP_REASON_MAX_WALL_MS_REACHED	Wall-clock budget reached.
SIM_RUNTIME_LOOP_STOP_REASON_RUNTIME_ERROR	Loop stopped after a runtime error.

◆ SimTimeModel

enum SimTimeModel

Time evolution model for the simulation.

SIM_TIME_MODEL_CONTINUOUS: dt refinement should converge (ODE/PDE flows). SIM_TIME_MODEL_MAP: dt is part of the discrete map; refinement changes the model.

Enumerator
SIM_TIME_MODEL_CONTINUOUS	Continuous-time model where dt refinement should converge.
SIM_TIME_MODEL_MAP	Discrete map where dt is part of the model definition.

Function Documentation

◆ sim_runtime_caller_step_mode_name()

const char * sim_runtime_caller_step_mode_name ( SimRuntimeCallerStepMode mode )

Convert a caller-owned step mode to a stable machine-readable name.

Parameters

mode	Caller step mode enum value.

Returns: Static lowercase name.

◆ sim_runtime_loop_error_source_name()

const char * sim_runtime_loop_error_source_name ( SimRuntimeLoopErrorSource source )

Convert a loop error source to a stable machine-readable name.

Parameters

source Error source enum value.

Returns: Static lowercase name.

◆ sim_runtime_loop_progress_kind_name()

const char * sim_runtime_loop_progress_kind_name ( SimRuntimeLoopProgressKind kind )

Convert a loop-progress kind to a stable machine-readable name.

Parameters

kind	Loop-progress kind enum value.

Returns: Static lowercase name.

◆ sim_runtime_loop_stop_reason_name()

const char * sim_runtime_loop_stop_reason_name ( SimRuntimeLoopStopReason reason )

Convert a loop stop reason to a stable machine-readable name.

Parameters

reason Stop reason enum value.

Returns: Static lowercase name.

◆ sim_runtime_state_acquire_external_driver()

void sim_runtime_state_acquire_external_driver ( SimRuntimeState * state )

Acquire a caller-owned external-driver claim.

Parameters

state Runtime state to update.

◆ sim_runtime_state_caller_step_streak()

size_t sim_runtime_state_caller_step_streak ( const SimRuntimeState * state )

Fetch the consecutive caller-owned step streak.

Parameters

state Runtime state to inspect.

Returns: Consecutive streak count, or 0 for NULL state.

◆ sim_runtime_state_clear_caller_step_history()

void sim_runtime_state_clear_caller_step_history ( SimRuntimeState * state )

Clear descriptive caller-owned step history.

Parameters

state Runtime state to update.

◆ sim_runtime_state_clear_external_driver()

void sim_runtime_state_clear_external_driver ( SimRuntimeState * state )

Clear all caller-owned external-driver claims.

Parameters

state Runtime state to update.

◆ sim_runtime_state_clear_last_loop_progress()

void sim_runtime_state_clear_last_loop_progress ( SimRuntimeState * state )

Clear any retained completed caller-owned loop progress snapshot.

Parameters

state Runtime state to update.

◆ sim_runtime_state_clear_loop_error()

void sim_runtime_state_clear_loop_error ( SimRuntimeState * state )

Clear the most recent loop/runtime error record.

Parameters

state Runtime state to update.

◆ sim_runtime_state_clear_loop_progress()

void sim_runtime_state_clear_loop_progress ( SimRuntimeState * state )

Clear the current caller-owned loop progress snapshot.

Parameters

state Runtime state to update.

◆ sim_runtime_state_copy_step_metrics()

size_t sim_runtime_state_copy_step_metrics	(	const SimRuntimeState *	state,
		SimStepMetrics *	dest,
		size_t	capacity
	)

Copy up to capacity samples into dest ordered from oldest to newest.

Parameters

	state	Runtime state to inspect.
[out]	dest	Destination array for copied samples.
	capacity	Number of entries available in `dest`.

Returns: Number of samples written.

◆ sim_runtime_state_destroy()

void sim_runtime_state_destroy ( SimRuntimeState * state )

Destroy runtime state and release resources.

Parameters

state Runtime state to destroy; NULL is ignored.

◆ sim_runtime_state_ensure_continuity_capacity()

SimResult sim_runtime_state_ensure_continuity_capacity	(	SimRuntimeState *	state,
		size_t	required
	)

Ensure continuity counters can index at least required fields.

Parameters

state	Runtime state to grow.
required	Required number of field entries.

Returns: SIM_RESULT_OK, SIM_RESULT_INVALID_ARGUMENT, or SIM_RESULT_OUT_OF_MEMORY.

◆ sim_runtime_state_external_driver_depth()

size_t sim_runtime_state_external_driver_depth ( const SimRuntimeState * state )

Report the current nested external-driver claim depth.

Parameters

state Runtime state to inspect.

Returns: Current claim depth, or 0 for NULL state.

◆ sim_runtime_state_init()

SimResult sim_runtime_state_init ( SimRuntimeState * state )

Initialize runtime state with defaults.

Parameters

state Runtime state to initialize.

Returns: SIM_RESULT_OK or SIM_RESULT_INVALID_ARGUMENT.

◆ sim_runtime_state_last_caller_step_mode()

SimRuntimeCallerStepMode sim_runtime_state_last_caller_step_mode ( const SimRuntimeState * state )

Fetch the last caller-owned step primitive observed.

Parameters

state Runtime state to inspect.

Returns: Last mode, or SIM_RUNTIME_CALLER_STEP_MODE_NONE for NULL state.

◆ sim_runtime_state_last_loop_error()

bool sim_runtime_state_last_loop_error	(	const SimRuntimeState *	state,
		SimRuntimeLoopError *	out_error
	)

Fetch the most recent loop/runtime error.

Parameters

	state	Runtime state to inspect.
[out]	out_error	Receives the error record.

Returns: true when a valid error record was available.

◆ sim_runtime_state_last_loop_progress()

bool sim_runtime_state_last_loop_progress	(	const SimRuntimeState *	state,
		SimRuntimeLoopProgress *	out_progress
	)

Fetch the most recent completed caller-owned loop progress snapshot.

Parameters

	state	Runtime state to inspect.
[out]	out_progress	Receives the retained final progress snapshot.

Returns: true when a retained final progress snapshot is available.

◆ sim_runtime_state_last_stop_reason()

SimRuntimeLoopStopReason sim_runtime_state_last_stop_reason ( const SimRuntimeState * state )

Fetch the most recent loop stop reason.

Parameters

state Runtime state to inspect.

Returns: Stored reason, or SIM_RUNTIME_LOOP_STOP_REASON_NONE for NULL state.

◆ sim_runtime_state_latest_step_metrics()

bool sim_runtime_state_latest_step_metrics	(	const SimRuntimeState *	state,
		SimStepMetrics *	out_metrics
	)

Copy the most recent step metrics sample.

Parameters

	state	Runtime state to inspect.
[out]	out_metrics	Receives the latest sample.

Returns: true when a sample was available.

◆ sim_runtime_state_loop_progress()

bool sim_runtime_state_loop_progress	(	const SimRuntimeState *	state,
		SimRuntimeLoopProgress *	out_progress
	)

Fetch the current caller-owned loop progress snapshot.

Parameters

	state	Runtime state to inspect.
[out]	out_progress	Receives the active progress snapshot.

Returns: true when a progress snapshot is active.

◆ sim_runtime_state_note_caller_step()

void sim_runtime_state_note_caller_step	(	SimRuntimeState *	state,
		SimRuntimeCallerStepMode	mode
	)

Record a successful caller-owned step primitive.

Parameters

state	Runtime state to update.
mode	Step primitive to record; NONE is ignored.

◆ sim_runtime_state_pending_cancel()

bool sim_runtime_state_pending_cancel ( const SimRuntimeState * state )

Read the current pending-cancel flag.

Parameters

state Runtime state to inspect.

Returns: true when a cancel request is pending.

◆ sim_runtime_state_record_loop_error()

void sim_runtime_state_record_loop_error	(	SimRuntimeState *	state,
		SimResult	code,
		SimRuntimeLoopErrorSource	source,
		size_t	step_index
	)

Record the most recent loop/runtime error.

Parameters

state	Runtime state to update.
code	Error result code.
source	Subsystem that produced the error.
step_index	Step index associated with the error.

◆ sim_runtime_state_record_step_metrics()

void sim_runtime_state_record_step_metrics	(	SimRuntimeState *	state,
		const SimStepMetrics *	metrics
	)

Append a step metrics sample to the runtime ring buffer.

Parameters

state	Runtime state to update.
metrics	Metrics sample to copy; NULL is ignored.

◆ sim_runtime_state_release_continuity_buffers()

void sim_runtime_state_release_continuity_buffers ( SimRuntimeState * state )

Release continuity buffer allocations.

Parameters

state Runtime state to update; NULL is ignored.

◆ sim_runtime_state_release_external_driver()

void sim_runtime_state_release_external_driver ( SimRuntimeState * state )

Release one caller-owned external-driver claim.

Parameters

state Runtime state to update.

◆ sim_runtime_state_set_last_stop_reason()

void sim_runtime_state_set_last_stop_reason	(	SimRuntimeState *	state,
		SimRuntimeLoopStopReason	reason
	)

Record the most recent loop stop reason.

Parameters

state	Runtime state to update.
reason	Stop reason to store.

◆ sim_runtime_state_set_loop_progress()

void sim_runtime_state_set_loop_progress	(	SimRuntimeState *	state,
		const SimRuntimeLoopProgress *	progress
	)

Replace the current caller-owned loop progress snapshot.

Parameters

state	Runtime state to update.
progress	Progress snapshot to copy; NULL clears active progress.

◆ sim_runtime_state_set_pending_cancel()

void sim_runtime_state_set_pending_cancel	(	SimRuntimeState *	state,
		bool	pending
	)

Mark whether a scheduler-owned cancel is in progress.

Parameters

state	Runtime state to update.
pending	Pending-cancel flag value.

Classes

Macros

Typedefs

Enumerations

Functions

Detailed Description

Macro Definition Documentation

◆ SIM_STEP_METRIC_HISTORY

Typedef Documentation

◆ SimRuntimeCallerStepMode

◆ SimTimeModel

Enumeration Type Documentation

◆ SimRuntimeCallerStepMode

◆ SimRuntimeLoopErrorSource

◆ SimRuntimeLoopProgressKind

◆ SimRuntimeLoopStopReason

◆ SimTimeModel

Function Documentation

◆ sim_runtime_caller_step_mode_name()

◆ sim_runtime_loop_error_source_name()

◆ sim_runtime_loop_progress_kind_name()

◆ sim_runtime_loop_stop_reason_name()

◆ sim_runtime_state_acquire_external_driver()

◆ sim_runtime_state_caller_step_streak()

◆ sim_runtime_state_clear_caller_step_history()

◆ sim_runtime_state_clear_external_driver()

◆ sim_runtime_state_clear_last_loop_progress()

◆ sim_runtime_state_clear_loop_error()

◆ sim_runtime_state_clear_loop_progress()

◆ sim_runtime_state_copy_step_metrics()

◆ sim_runtime_state_destroy()

◆ sim_runtime_state_ensure_continuity_capacity()

◆ sim_runtime_state_external_driver_depth()

◆ sim_runtime_state_init()

◆ sim_runtime_state_last_caller_step_mode()

◆ sim_runtime_state_last_loop_error()

◆ sim_runtime_state_last_loop_progress()

◆ sim_runtime_state_last_stop_reason()

◆ sim_runtime_state_latest_step_metrics()

◆ sim_runtime_state_loop_progress()

◆ sim_runtime_state_note_caller_step()

◆ sim_runtime_state_pending_cancel()

◆ sim_runtime_state_record_loop_error()

◆ sim_runtime_state_record_step_metrics()

◆ sim_runtime_state_release_continuity_buffers()

◆ sim_runtime_state_release_external_driver()

◆ sim_runtime_state_set_last_stop_reason()

◆ sim_runtime_state_set_loop_progress()

◆ sim_runtime_state_set_pending_cancel()
