sinusoidal.h File Reference

Sinusoidal stimulus operators: traveling, standing, chirped, and Gaussian-envelope. More...

#include "coords.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

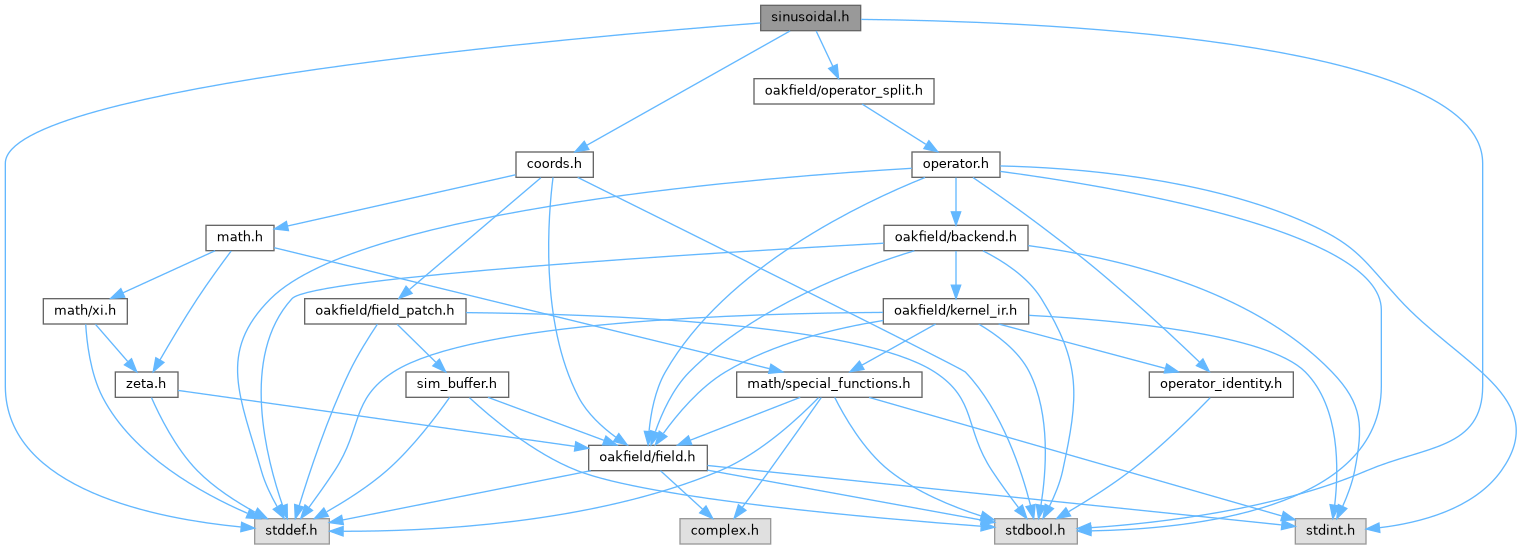

Include dependency graph for sinusoidal.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusSinusoidalConfig
	Shared configuration for sinusoidal stimulus variants. More...
struct	SimStimulusSinusoidalState
	Internal state for sinusoidal stimulus operators. More...

Typedefs
typedef struct SimStimulusSinusoidalConfig	SimStimulusSinusoidalConfig
	Shared configuration for sinusoidal stimulus variants.
typedef enum SimStimulusSinusoidalMode	SimStimulusSinusoidalMode
	Sinusoidal stimulus operation mode.
typedef struct SimStimulusSinusoidalState	SimStimulusSinusoidalState
	Internal state for sinusoidal stimulus operators.

Enumerations
enum	SimStimulusSinusoidalMode { SIM_STIMULUS_SINUSOIDAL_SINE = 0 , SIM_STIMULUS_SINUSOIDAL_STANDING , SIM_STIMULUS_SINUSOIDAL_CHIRP }
	Sinusoidal stimulus operation mode. More...

Functions
SimResult	sim_add_stimulus_sine_operator (struct SimContext *context, const SimStimulusSinusoidalConfig *config, size_t *out_index)
	Register a traveling-wave sinusoidal stimulus operator.
SimResult	sim_add_stimulus_standing_operator (struct SimContext *context, const SimStimulusSinusoidalConfig *config, size_t *out_index)
	Register a standing-wave sinusoidal stimulus operator.
SimResult	sim_add_stimulus_chirp_operator (struct SimContext *context, const SimStimulusSinusoidalConfig *config, size_t *out_index)
	Register a chirped sinusoidal stimulus operator.
SimResult	sim_stimulus_sinusoidal_config (struct SimContext *context, size_t operator_index, SimStimulusSinusoidalConfig *out_config)
	Copy the current sinusoidal configuration from a registered operator.
SimResult	sim_stimulus_sinusoidal_update (struct SimContext *context, size_t operator_index, const SimStimulusSinusoidalConfig *config)
	Replace or renormalize a registered sinusoidal stimulus configuration.

Detailed Description

Sinusoidal stimulus operators: traveling, standing, chirped, and Gaussian-envelope.

Complex fields are driven by writing real/imag components with optional rotation.

Enumeration Type Documentation

SimStimulusSinusoidalMode

enum SimStimulusSinusoidalMode

Sinusoidal stimulus operation mode.

Enumerator
SIM_STIMULUS_SINUSOIDAL_SINE	Traveling sine wave mode.
SIM_STIMULUS_SINUSOIDAL_STANDING	Standing-wave mode.
SIM_STIMULUS_SINUSOIDAL_CHIRP	Chirped sine wave mode.

Function Documentation

sim_add_stimulus_chirp_operator()

SimResult sim_add_stimulus_chirp_operator	(	struct SimContext *	context,
		const SimStimulusSinusoidalConfig *	config,
		size_t *	out_index
	)

Register a chirped sinusoidal stimulus operator.

The implementation copies and normalizes config, selects the chirp mode, and registers the operator on the configured target field.

Parameters

	context	Simulation context that will own the operator.
	config	Optional sinusoidal configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, buffer setup, or split-operator registration.

sim_add_stimulus_sine_operator()

SimResult sim_add_stimulus_sine_operator	(	struct SimContext *	context,
		const SimStimulusSinusoidalConfig *	config,
		size_t *	out_index
	)

Register a traveling-wave sinusoidal stimulus operator.

The implementation copies and normalizes config, selects the sine mode, and registers the operator on the configured target field.

Parameters

	context	Simulation context that will own the operator.
	config	Optional sinusoidal configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, buffer setup, or split-operator registration.

sim_add_stimulus_standing_operator()

SimResult sim_add_stimulus_standing_operator	(	struct SimContext *	context,
		const SimStimulusSinusoidalConfig *	config,
		size_t *	out_index
	)

Register a standing-wave sinusoidal stimulus operator.

The implementation copies and normalizes config, selects the standing-wave mode, and registers the operator on the configured target field.

Parameters

	context	Simulation context that will own the operator.
	config	Optional sinusoidal configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, buffer setup, or split-operator registration.

sim_stimulus_sinusoidal_config()

SimResult sim_stimulus_sinusoidal_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusSinusoidalConfig *	out_config
	)

Copy the current sinusoidal configuration from a registered operator.

This accessor is shared by the sine, standing-wave, and chirp variants.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by a sinusoidal registration call.
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_sinusoidal_update()

SimResult sim_stimulus_sinusoidal_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusSinusoidalConfig *	config
	)

Replace or renormalize a registered sinusoidal stimulus configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update refreshes waveform state and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the sinusoidal operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup, buffer setup, or state validation fails.
