spatial_derivative.h File Reference

1D spatial derivative operator (finite differences with periodic boundary). More...

#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

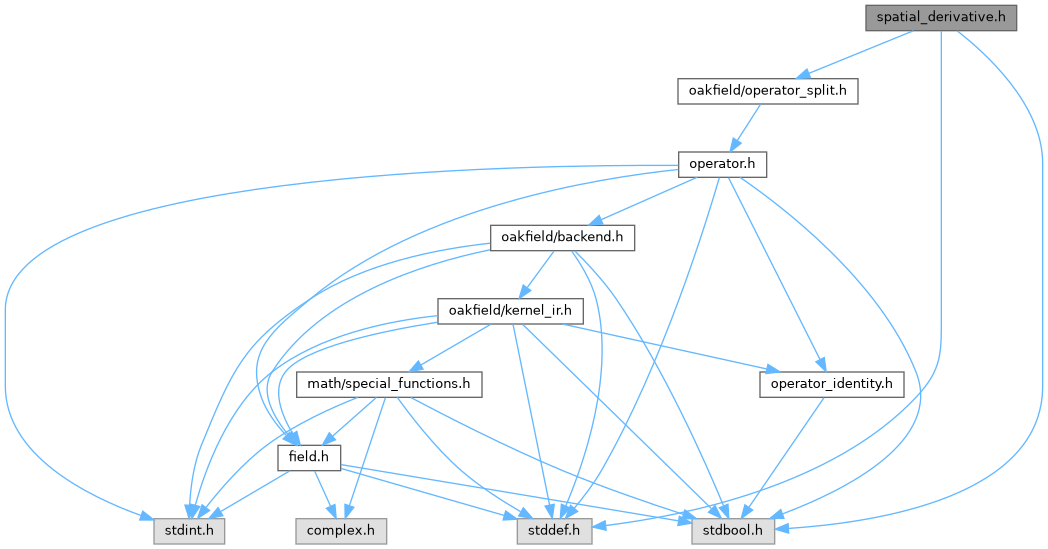

Include dependency graph for spatial_derivative.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimSpatialDerivativeOperatorConfig
	Configuration for the spatial derivative operator. More...

Typedefs
typedef enum SimSpatialDerivativeMethod	SimSpatialDerivativeMethod
	Finite-difference stencil used by the spatial derivative operator.
typedef struct SimSpatialDerivativeOperatorConfig	SimSpatialDerivativeOperatorConfig
	Configuration for the spatial derivative operator.

Enumerations
enum	SimSpatialDerivativeMethod { SIM_SPATIAL_DERIVATIVE_METHOD_CENTRAL = 0 , SIM_SPATIAL_DERIVATIVE_METHOD_FORWARD = 1 , SIM_SPATIAL_DERIVATIVE_METHOD_BACKWARD = 2 }
	Finite-difference stencil used by the spatial derivative operator. More...

Functions
const char *	sim_spatial_derivative_method_name (SimSpatialDerivativeMethod method)
	Return the schema name for a spatial-derivative stencil.
bool	sim_spatial_derivative_method_from_string (const char *name, SimSpatialDerivativeMethod *out_method)
	Parse a spatial-derivative stencil name.
SimResult	sim_add_spatial_derivative_operator (struct SimContext *context, const SimSpatialDerivativeOperatorConfig *config, size_t *out_index)
	Register a 1D spatial derivative operator.
SimResult	sim_spatial_derivative_config (struct SimContext *context, size_t operator_index, SimSpatialDerivativeOperatorConfig *out_config)
	Copy the current spatial-derivative configuration from a registered operator.
SimResult	sim_spatial_derivative_update (struct SimContext *context, size_t operator_index, const SimSpatialDerivativeOperatorConfig *config)
	Replace or renormalize a registered spatial-derivative configuration.

Detailed Description

1D spatial derivative operator (finite differences with periodic boundary).

Enumeration Type Documentation

SimSpatialDerivativeMethod

enum SimSpatialDerivativeMethod

Finite-difference stencil used by the spatial derivative operator.

Enumerator
SIM_SPATIAL_DERIVATIVE_METHOD_CENTRAL	Central difference stencil.
SIM_SPATIAL_DERIVATIVE_METHOD_FORWARD	Forward difference stencil.
SIM_SPATIAL_DERIVATIVE_METHOD_BACKWARD	Backward difference stencil.

Function Documentation

sim_add_spatial_derivative_operator()

SimResult sim_add_spatial_derivative_operator	(	struct SimContext *	context,
		const SimSpatialDerivativeOperatorConfig *	config,
		size_t *	out_index
	)

Register a 1D spatial derivative operator.

Parameters

	context	Simulation context that will own the operator.
	config	Optional derivative configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, field compatibility checks, allocation, or split registration.

sim_spatial_derivative_config()

SimResult sim_spatial_derivative_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimSpatialDerivativeOperatorConfig *	out_config
	)

Copy the current spatial-derivative configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_spatial_derivative_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no derivative state.

sim_spatial_derivative_method_from_string()

bool sim_spatial_derivative_method_from_string	(	const char *	name,
		SimSpatialDerivativeMethod *	out_method
	)

Parse a spatial-derivative stencil name.

Parameters

	name	Lowercase schema name such as "central", "forward", or "backward".
[out]	out_method	Receives the parsed method on success.

Returns

true when name maps to a known method; false otherwise.

sim_spatial_derivative_method_name()

const char * sim_spatial_derivative_method_name

(

SimSpatialDerivativeMethod

method

)

Return the schema name for a spatial-derivative stencil.

Parameters

method

Stencil enum value.

Returns

Stable lowercase method name, or "central" for unknown values.

sim_spatial_derivative_update()

SimResult sim_spatial_derivative_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimSpatialDerivativeOperatorConfig *	config
	)

Replace or renormalize a registered spatial-derivative configuration.

Passing NULL for config keeps the current configuration and reapplies normalization. A successful update refreshes symbolic state and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the spatial-derivative operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code from lookup, field compatibility checks, or state validation.
