stochastic_noise.h File Reference

Additive stochastic noise operator (OU/pink/blue via spectral shaping and calculus law). More...

#include "oakfield/kernel_ir.h"
#include "oakfield/operator_split.h"

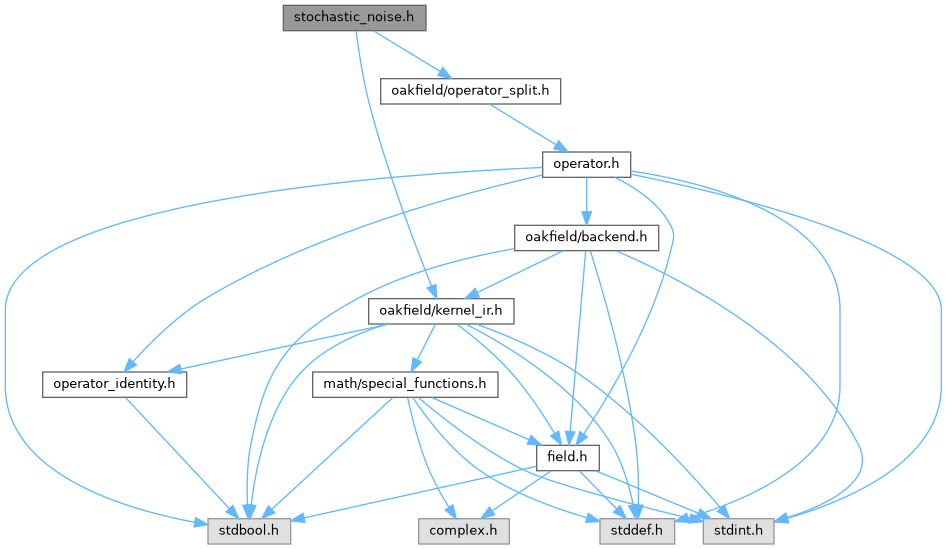

Include dependency graph for stochastic_noise.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	StochasticNoiseOperatorConfig
	Configuration parameters for the additive stochastic noise operator. More...

Typedefs
typedef struct StochasticNoiseOperatorConfig	StochasticNoiseOperatorConfig
	Configuration parameters for the additive stochastic noise operator.

Functions
SimResult	sim_add_stochastic_noise_operator (struct SimContext *context, const StochasticNoiseOperatorConfig *config, size_t *out_index)
	Register an additive stochastic noise operator.
SimResult	sim_stochastic_noise_config (struct SimContext *context, size_t operator_index, StochasticNoiseOperatorConfig *out_config)
	Copy the current stochastic noise configuration from a registered operator.
SimResult	sim_stochastic_noise_update (struct SimContext *context, size_t operator_index, const StochasticNoiseOperatorConfig *config)
	Replace or renormalize a registered stochastic noise configuration.

Detailed Description

Additive stochastic noise operator (OU/pink/blue via spectral shaping and calculus law).

Noise can be interpreted under Ito/Stratonovich (see SimIRNoiseLaw). Real and complex fields are both supported; complex fields receive independent real/imaginary draws.

Function Documentation

sim_add_stochastic_noise_operator()

SimResult sim_add_stochastic_noise_operator	(	struct SimContext *	context,
		const StochasticNoiseOperatorConfig *	config,
		size_t *	out_index
	)

Register an additive stochastic noise operator.

Parameters

	context	Simulation context that will own the operator.
	config	Optional noise generation parameters; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, allocation, kernel registration, or split registration.

sim_stochastic_noise_config()

SimResult sim_stochastic_noise_config	(	struct SimContext *	context,
		size_t	operator_index,
		StochasticNoiseOperatorConfig *	out_config
	)

Copy the current stochastic noise configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stochastic_noise_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no noise state.

sim_stochastic_noise_update()

SimResult sim_stochastic_noise_update	(	struct SimContext *	context,
		size_t	operator_index,
		const StochasticNoiseOperatorConfig *	config
	)

Replace or renormalize a registered stochastic noise configuration.

Passing NULL for config keeps the current configuration and reapplies normalization. A successful update reseeds the RNG and clears cached noise state buffers.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the stochastic noise operator to update.
config	Optional replacement noise configuration.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, lookup, or state validation.
