thermostat.h File Reference

Soft energy / lambda regulation (thermostat) operator. More...

#include "oakfield/operator_split.h"

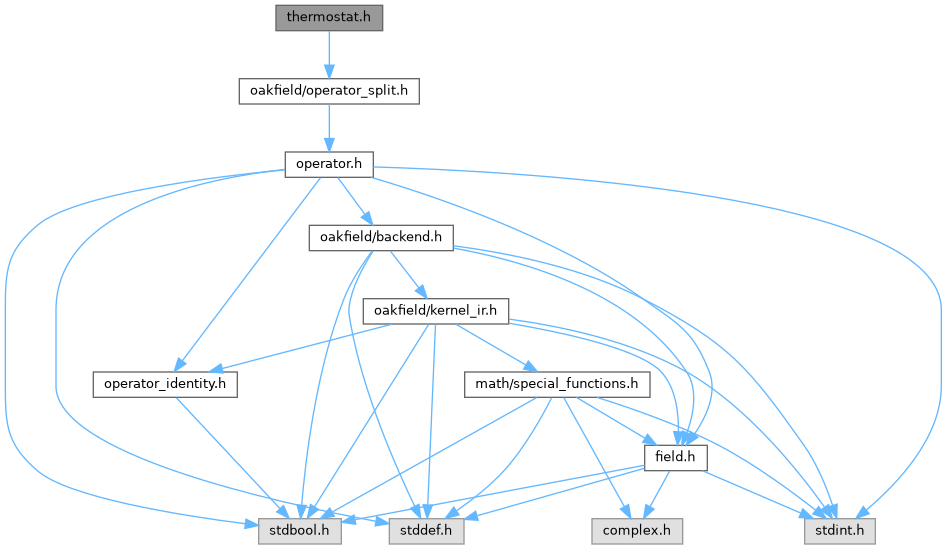

Include dependency graph for thermostat.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ThermostatOperatorConfig
	Configuration for the thermostat operator. More...

Typedefs
typedef enum ThermostatMode	ThermostatMode
	Thermostat regulation mode.
typedef struct ThermostatOperatorConfig	ThermostatOperatorConfig
	Configuration for the thermostat operator.

Enumerations
enum	ThermostatMode { THERMOSTAT_NONE = 0 , THERMOSTAT_SOFT_LAMBDA = 1 , THERMOSTAT_ADD = 2 , THERMOSTAT_MULT = 3 }
	Thermostat regulation mode. More...

Functions
SimResult	sim_add_thermostat_operator (struct SimContext *context, const ThermostatOperatorConfig *config, size_t *out_index)
	Register a thermostat operator instance.
SimResult	sim_thermostat_config (struct SimContext *context, size_t operator_index, ThermostatOperatorConfig *out_config)
	Copy the current thermostat configuration from a registered operator.
SimResult	sim_thermostat_update (struct SimContext *context, size_t operator_index, const ThermostatOperatorConfig *config)
	Replace the configuration of a registered thermostat operator.

Detailed Description

Soft energy / lambda regulation (thermostat) operator.

Typedef Documentation

ThermostatMode

typedef enum ThermostatMode ThermostatMode

Thermostat regulation mode.

THERMOSTAT_SOFT_LAMBDA adjusts lambda_eff from the measured mean energy. THERMOSTAT_ADD and THERMOSTAT_MULT apply additive or multiplicative relaxation toward either E_target or an optional per-point memory field.

ThermostatOperatorConfig

typedef struct ThermostatOperatorConfig ThermostatOperatorConfig

Configuration for the thermostat operator.

The operator updates internal scalars such as lambda_eff and optionally uses a memory target field for additive or multiplicative regulation modes.

Enumeration Type Documentation

ThermostatMode

enum ThermostatMode

Thermostat regulation mode.

THERMOSTAT_SOFT_LAMBDA adjusts lambda_eff from the measured mean energy. THERMOSTAT_ADD and THERMOSTAT_MULT apply additive or multiplicative relaxation toward either E_target or an optional per-point memory field.

Enumerator
THERMOSTAT_NONE	Disable thermostat regulation.
THERMOSTAT_SOFT_LAMBDA	Adjust lambda_eff from measured mean energy.
THERMOSTAT_ADD	Additive relaxation toward target or memory field.
THERMOSTAT_MULT	Multiplicative relaxation toward target or memory field.

Function Documentation

sim_add_thermostat_operator()

SimResult sim_add_thermostat_operator	(	struct SimContext *	context,
		const ThermostatOperatorConfig *	config,
		size_t *	out_index
	)

Register a thermostat operator instance.

Parameters

	context	Simulation context that will own the operator.
	config	Optional thermostat configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, allocation, kernel registration, or split registration.

sim_thermostat_config()

SimResult sim_thermostat_config	(	struct SimContext *	context,
		size_t	operator_index,
		ThermostatOperatorConfig *	out_config
	)

Copy the current thermostat configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_thermostat_operator().
[out]	out_config	Receives the normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no thermostat state.

sim_thermostat_update()

SimResult sim_thermostat_update	(	struct SimContext *	context,
		size_t	operator_index,
		const ThermostatOperatorConfig *	config
	)

Replace the configuration of a registered thermostat operator.

config is required. A successful update normalizes the replacement, resets lambda/cache state, refreshes symbolic metadata, and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the thermostat operator to update.
config	Replacement thermostat configuration.

Returns

SIM_RESULT_OK on success, or an error code from argument validation, lookup, or state validation.
