traveling_wave_packet.h File Reference

Gaussian-envelope traveling wave packet stimulus. More...

#include "coords.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>

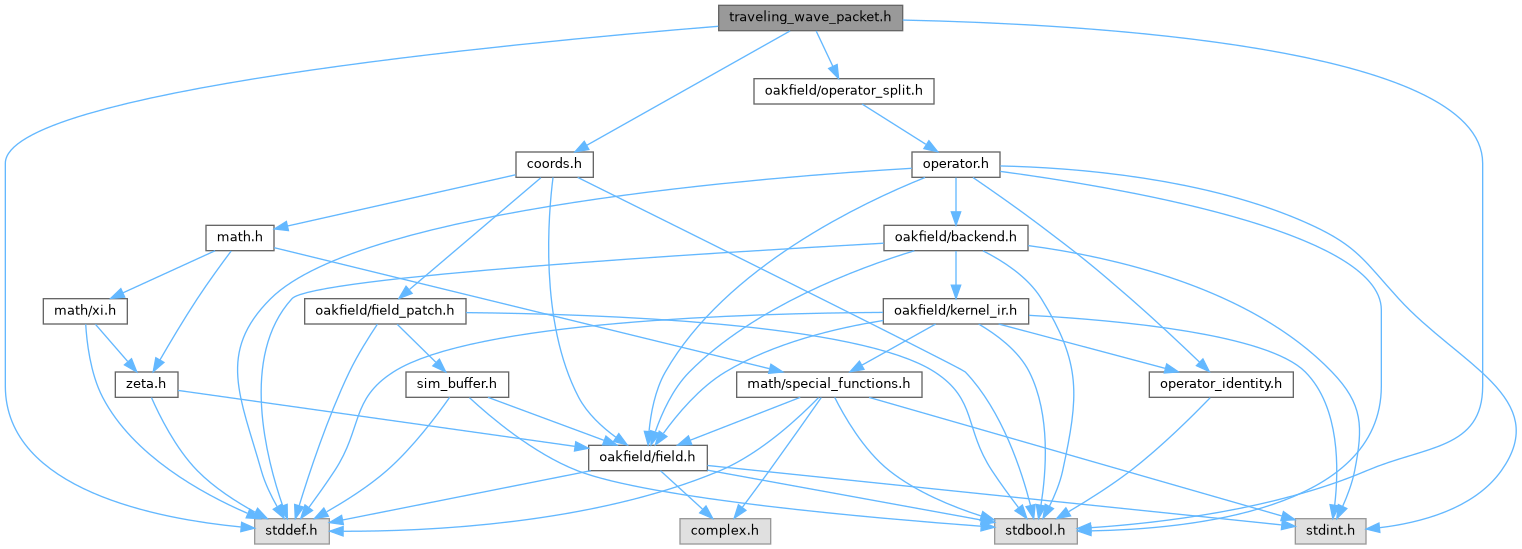

Include dependency graph for traveling_wave_packet.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusTravelingWavePacketConfig
	Configuration for a drifting Gaussian-envelope traveling wave packet. More...

Typedefs
typedef struct SimStimulusTravelingWavePacketConfig	SimStimulusTravelingWavePacketConfig
	Configuration for a drifting Gaussian-envelope traveling wave packet.

Functions
SimResult	sim_add_stimulus_traveling_wave_packet_operator (struct SimContext *context, const SimStimulusTravelingWavePacketConfig *config, size_t *out_index)
	Register a Gaussian-envelope traveling wave packet stimulus operator.
SimResult	sim_stimulus_traveling_wave_packet_config (struct SimContext *context, size_t operator_index, SimStimulusTravelingWavePacketConfig *out_config)
	Copy the current traveling wave-packet configuration from a registered operator.
SimResult	sim_stimulus_traveling_wave_packet_update (struct SimContext *context, size_t operator_index, const SimStimulusTravelingWavePacketConfig *config)
	Replace or renormalize a registered traveling wave-packet configuration.

Detailed Description

Gaussian-envelope traveling wave packet stimulus.

Evaluates a drifting local packet frame (u, v) and injects A * exp(-0.5 * ((u / sigma_u)^2 + (v / sigma_v)^2))

• exp(i * (k_u * u + k_v * v - omega * t + phi)), where the packet center and orientation can evolve over time.

Real fields receive the real component. Complex fields receive the full complex packet with an additional global rotation.

Function Documentation

sim_add_stimulus_traveling_wave_packet_operator()

SimResult sim_add_stimulus_traveling_wave_packet_operator	(	struct SimContext *	context,
		const SimStimulusTravelingWavePacketConfig *	config,
		size_t *	out_index
	)

Register a Gaussian-envelope traveling wave packet stimulus operator.

The implementation copies and normalizes config, then registers a split operator that writes the drifting packet into the target field.

Parameters

	context	Simulation context that will own the operator.
	config	Optional wave-packet configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, or split-operator registration.

sim_stimulus_traveling_wave_packet_config()

SimResult sim_stimulus_traveling_wave_packet_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusTravelingWavePacketConfig *	out_config
	)

Copy the current traveling wave-packet configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_traveling_wave_packet_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_traveling_wave_packet_update()

SimResult sim_stimulus_traveling_wave_packet_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusTravelingWavePacketConfig *	config
	)

Replace or renormalize a registered traveling wave-packet configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update refreshes symbolic state and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the traveling wave-packet operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup or state validation fails.
