turbulence.h File Reference

Turbulence stimulus built from a centered absolute-value fractal basis. More...

#include "coords.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>

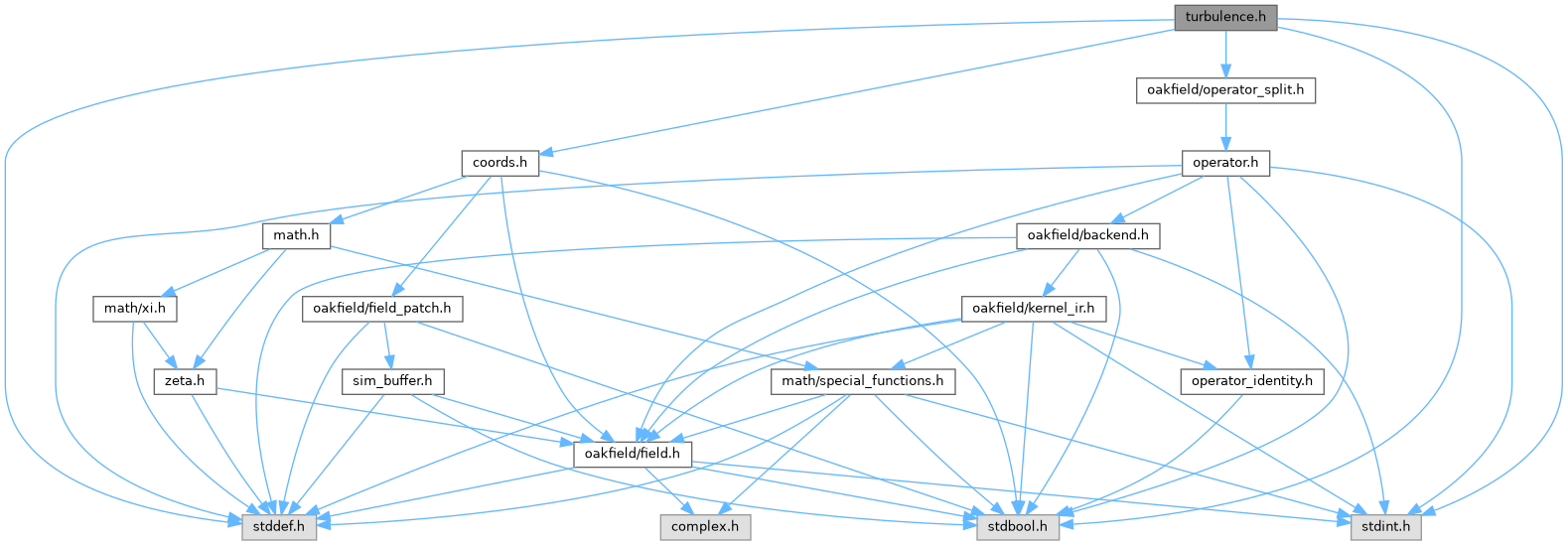

Include dependency graph for turbulence.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusTurbulenceConfig
	Configuration for seeded billowy turbulence stimulus noise. More...

Typedefs
typedef struct SimStimulusTurbulenceConfig	SimStimulusTurbulenceConfig
	Configuration for seeded billowy turbulence stimulus noise.

Functions
SimResult	sim_add_stimulus_turbulence_operator (struct SimContext *context, const SimStimulusTurbulenceConfig *config, size_t *out_index)
	Register a billowy turbulence stimulus operator.
SimResult	sim_stimulus_turbulence_config (struct SimContext *context, size_t operator_index, SimStimulusTurbulenceConfig *out_config)
	Copy the current turbulence configuration from a registered operator.
SimResult	sim_stimulus_turbulence_update (struct SimContext *context, size_t operator_index, const SimStimulusTurbulenceConfig *config)
	Replace or renormalize a registered turbulence stimulus configuration.

Detailed Description

Turbulence stimulus built from a centered absolute-value fractal basis.

Synthesizes billowy multi-octave turbulence using T(x) = sum_o A 2^{-H o} (|cos(2π λ^o x + φ_o)| - 2/π).

For complex fields, the imaginary channel uses the corresponding centered absolute sine basis.

Function Documentation

sim_add_stimulus_turbulence_operator()

SimResult sim_add_stimulus_turbulence_operator	(	struct SimContext *	context,
		const SimStimulusTurbulenceConfig *	config,
		size_t *	out_index
	)

Register a billowy turbulence stimulus operator.

The implementation copies and normalizes config, initializes octave phases from the configured seed, and registers the turbulence operator.

Parameters

	context	Simulation context that will own the operator.
	config	Optional turbulence configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, octave setup, or split-operator registration.

sim_stimulus_turbulence_config()

SimResult sim_stimulus_turbulence_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusTurbulenceConfig *	out_config
	)

Copy the current turbulence configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_turbulence_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_turbulence_update()

SimResult sim_stimulus_turbulence_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusTurbulenceConfig *	config
	)

Replace or renormalize a registered turbulence stimulus configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update refreshes octave data and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the turbulence operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup, octave setup, or state validation fails.
