white_noise.h File Reference

True white-noise stimulus with seeded RNG and complex support. More...

#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>

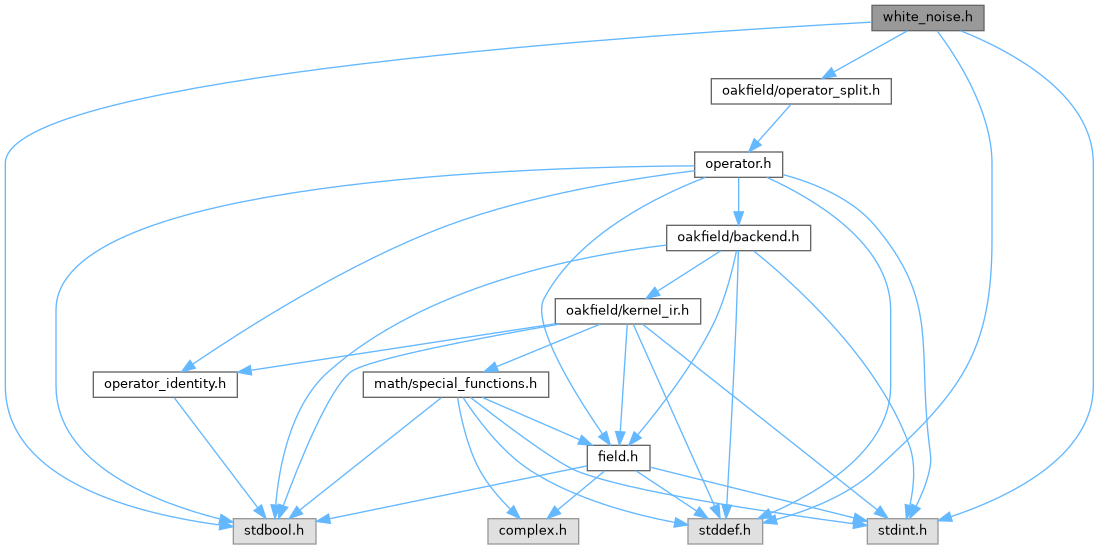

Include dependency graph for white_noise.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusWhiteNoiseConfig
	Configuration for seeded Gaussian white-noise stimulus injection. More...

Typedefs
typedef struct SimStimulusWhiteNoiseConfig	SimStimulusWhiteNoiseConfig
	Configuration for seeded Gaussian white-noise stimulus injection.

Functions
SimResult	sim_add_stimulus_white_noise_operator (struct SimContext *context, const SimStimulusWhiteNoiseConfig *config, size_t *out_index)
	Register a seeded white-noise stimulus operator.
SimResult	sim_stimulus_white_noise_config (struct SimContext *context, size_t operator_index, SimStimulusWhiteNoiseConfig *out_config)
	Copy the current white-noise configuration from a registered operator.
SimResult	sim_stimulus_white_noise_update (struct SimContext *context, size_t operator_index, const SimStimulusWhiteNoiseConfig *config)
	Replace or renormalize a registered white-noise stimulus configuration.

Detailed Description

True white-noise stimulus with seeded RNG and complex support.

Injects independent Gaussian white noise into a target field each step. For complex fields, independent noise is applied to real and imaginary components. The operator is deterministic given its seed.

Function Documentation

sim_add_stimulus_white_noise_operator()

SimResult sim_add_stimulus_white_noise_operator	(	struct SimContext *	context,
		const SimStimulusWhiteNoiseConfig *	config,
		size_t *	out_index
	)

Register a seeded white-noise stimulus operator.

The implementation copies and normalizes config, derives a deterministic stream when the seed is zero, and registers the noise operator on the target field.

Parameters

	context	Simulation context that will own the operator.
	config	Optional white-noise configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, or split-operator registration.

sim_stimulus_white_noise_config()

SimResult sim_stimulus_white_noise_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusWhiteNoiseConfig *	out_config
	)

Copy the current white-noise configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_white_noise_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_white_noise_update()

SimResult sim_stimulus_white_noise_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusWhiteNoiseConfig *	config
	)

Replace or renormalize a registered white-noise stimulus configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update refreshes RNG state when needed and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the white-noise operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup or state validation fails.
