worley_noise.h File Reference

Worley / cellular noise stimulus with selectable distance metrics. More...

#include "coords.h"
#include "oakfield/operator_split.h"
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>

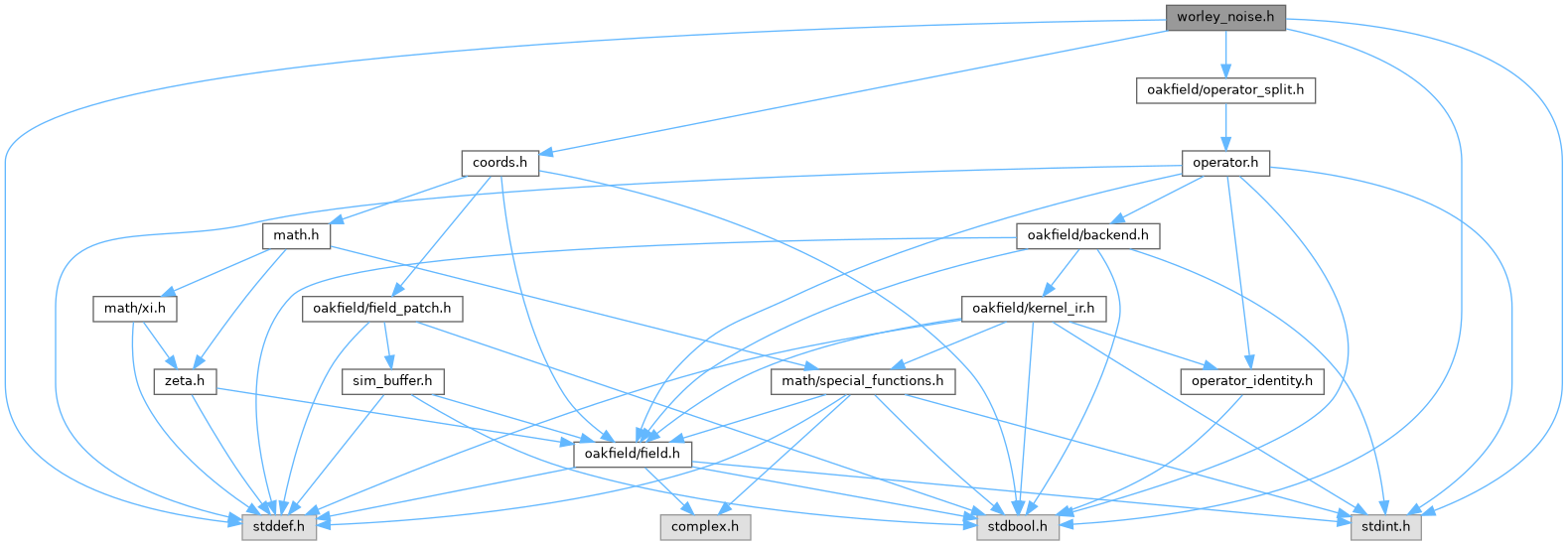

Include dependency graph for worley_noise.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusWorleyNoiseConfig
	Configuration for seeded Worley cellular-noise stimulus fields. More...

Typedefs
typedef enum SimStimulusWorleyDistanceMetric	SimStimulusWorleyDistanceMetric
	Distance metric used when evaluating Worley feature points.
typedef enum SimStimulusWorleyOutputMode	SimStimulusWorleyOutputMode
	Feature-distance output selected by Worley noise.
typedef struct SimStimulusWorleyNoiseConfig	SimStimulusWorleyNoiseConfig
	Configuration for seeded Worley cellular-noise stimulus fields.

Enumerations
enum	SimStimulusWorleyDistanceMetric { SIM_STIMULUS_WORLEY_EUCLIDEAN = 0 , SIM_STIMULUS_WORLEY_MANHATTAN = 1 , SIM_STIMULUS_WORLEY_CHEBYSHEV = 2 , SIM_STIMULUS_WORLEY_MINKOWSKI = 3 }
	Distance metric used when evaluating Worley feature points. More...
enum	SimStimulusWorleyOutputMode { SIM_STIMULUS_WORLEY_F1 = 0 , SIM_STIMULUS_WORLEY_F2 = 1 , SIM_STIMULUS_WORLEY_F2_MINUS_F1 = 2 }
	Feature-distance output selected by Worley noise. More...

Functions
SimResult	sim_add_stimulus_worley_noise_operator (struct SimContext *context, const SimStimulusWorleyNoiseConfig *config, size_t *out_index)
	Register a Worley cellular-noise stimulus operator.
SimResult	sim_stimulus_worley_noise_config (struct SimContext *context, size_t operator_index, SimStimulusWorleyNoiseConfig *out_config)
	Copy the current Worley-noise configuration from a registered operator.
SimResult	sim_stimulus_worley_noise_update (struct SimContext *context, size_t operator_index, const SimStimulusWorleyNoiseConfig *config)
	Replace or renormalize a registered Worley-noise stimulus configuration.

Detailed Description

Worley / cellular noise stimulus with selectable distance metrics.

Synthesizes one deterministic feature point per lattice cell and evaluates the distance to the nearest or second-nearest feature. The lattice is sampled in a local coordinate frame controlled by coord, then scaled by feature_frequency.

For complex fields, the imaginary component is generated from an independent deterministic feature lattice derived from the same seed.

Enumeration Type Documentation

SimStimulusWorleyDistanceMetric

enum SimStimulusWorleyDistanceMetric

Distance metric used when evaluating Worley feature points.

Enumerator
SIM_STIMULUS_WORLEY_EUCLIDEAN	Euclidean distance.
SIM_STIMULUS_WORLEY_MANHATTAN	Manhattan distance.
SIM_STIMULUS_WORLEY_CHEBYSHEV	Chebyshev distance.
SIM_STIMULUS_WORLEY_MINKOWSKI	Minkowski distance with configured exponent.

SimStimulusWorleyOutputMode

enum SimStimulusWorleyOutputMode

Feature-distance output selected by Worley noise.

Enumerator
SIM_STIMULUS_WORLEY_F1	Nearest feature distance.
SIM_STIMULUS_WORLEY_F2	Second-nearest feature distance.
SIM_STIMULUS_WORLEY_F2_MINUS_F1	Difference between second and nearest distances.

Function Documentation

sim_add_stimulus_worley_noise_operator()

SimResult sim_add_stimulus_worley_noise_operator	(	struct SimContext *	context,
		const SimStimulusWorleyNoiseConfig *	config,
		size_t *	out_index
	)

Register a Worley cellular-noise stimulus operator.

The implementation copies and normalizes config, derives deterministic hash bases from the seed, and registers the noise operator on the target field.

Parameters

	context	Simulation context that will own the operator.
	config	Optional Worley-noise configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, cache setup, or split-operator registration.

sim_stimulus_worley_noise_config()

SimResult sim_stimulus_worley_noise_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusWorleyNoiseConfig *	out_config
	)

Copy the current Worley-noise configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_worley_noise_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_worley_noise_update()

SimResult sim_stimulus_worley_noise_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusWorleyNoiseConfig *	config
	)

Replace or renormalize a registered Worley-noise stimulus configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update refreshes hash bases/caches as needed and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the Worley-noise operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup, cache setup, or state validation fails.
