zero_field.h File Reference

Utility operator that clears a real or complex field in place. More...

#include "oakfield/operator_split.h"

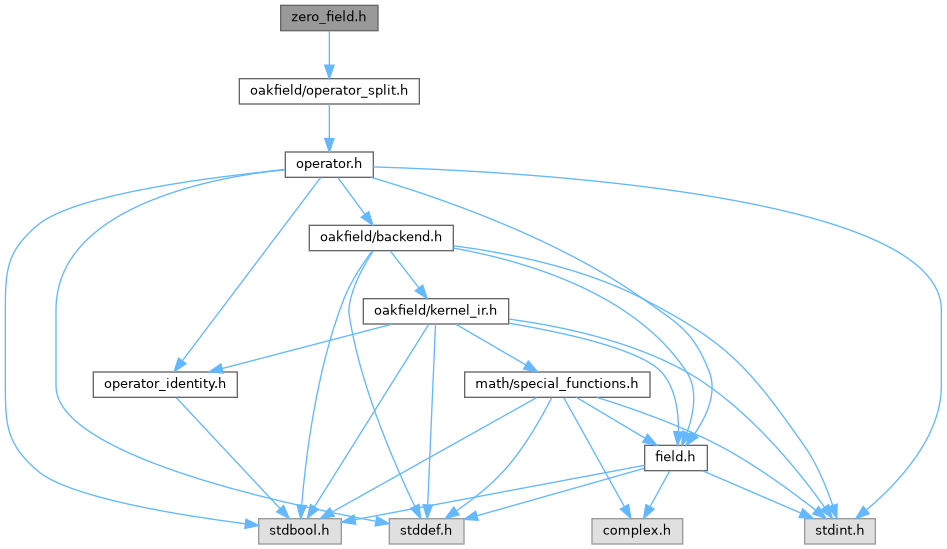

Include dependency graph for zero_field.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ZeroFieldOperatorConfig
	Configuration for clearing a target field in place. More...

Typedefs
typedef struct ZeroFieldOperatorConfig	ZeroFieldOperatorConfig
	Configuration for clearing a target field in place.

Functions
SimResult	sim_add_zero_field_operator (struct SimContext *context, const ZeroFieldOperatorConfig *config, size_t *out_index)
	Register an in-place zero-field utility operator.
SimResult	sim_zero_field_config (struct SimContext *context, size_t operator_index, ZeroFieldOperatorConfig *out_config)
	Copy the current configuration from a registered zero-field operator.
SimResult	sim_zero_field_update (struct SimContext *context, size_t operator_index, const ZeroFieldOperatorConfig *config)
	Update a registered zero-field operator without retargeting it.

Detailed Description

Utility operator that clears a real or complex field in place.

Function Documentation

sim_add_zero_field_operator()

SimResult sim_add_zero_field_operator	(	struct SimContext *	context,
		const ZeroFieldOperatorConfig *	config,
		size_t *	out_index
	)

Register an in-place zero-field utility operator.

The operator clears all elements of the configured field during its split step. The target field must exist at registration time.

Parameters

	context	Simulation context that will own the operator.
	config	Optional zero-field configuration; NULL selects field index 0.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL context or missing field, SIM_RESULT_OUT_OF_MEMORY on allocation failure, or a registration error.

sim_zero_field_config()

SimResult sim_zero_field_config	(	struct SimContext *	context,
		size_t	operator_index,
		ZeroFieldOperatorConfig *	out_config
	)

Copy the current configuration from a registered zero-field operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_zero_field_operator().
[out]	out_config	Receives the operator configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no zero-field state.

sim_zero_field_update()

SimResult sim_zero_field_update	(	struct SimContext *	context,
		size_t	operator_index,
		const ZeroFieldOperatorConfig *	config
	)

Update a registered zero-field operator without retargeting it.

config is required and its field_index must match the registered target. A successful update refreshes symbolic state and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the zero-field operator to update.
config	Replacement configuration with the same field_index.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL inputs or field retargeting, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no zero-field state.
