zeta_plane_slice.h File Reference

Complex-plane slice stimulus for Zeta/Xi visualization. More...

#include "oakfield/operator_split.h"
#include "oakfield/plane_chart.h"
#include <stdbool.h>
#include <stddef.h>

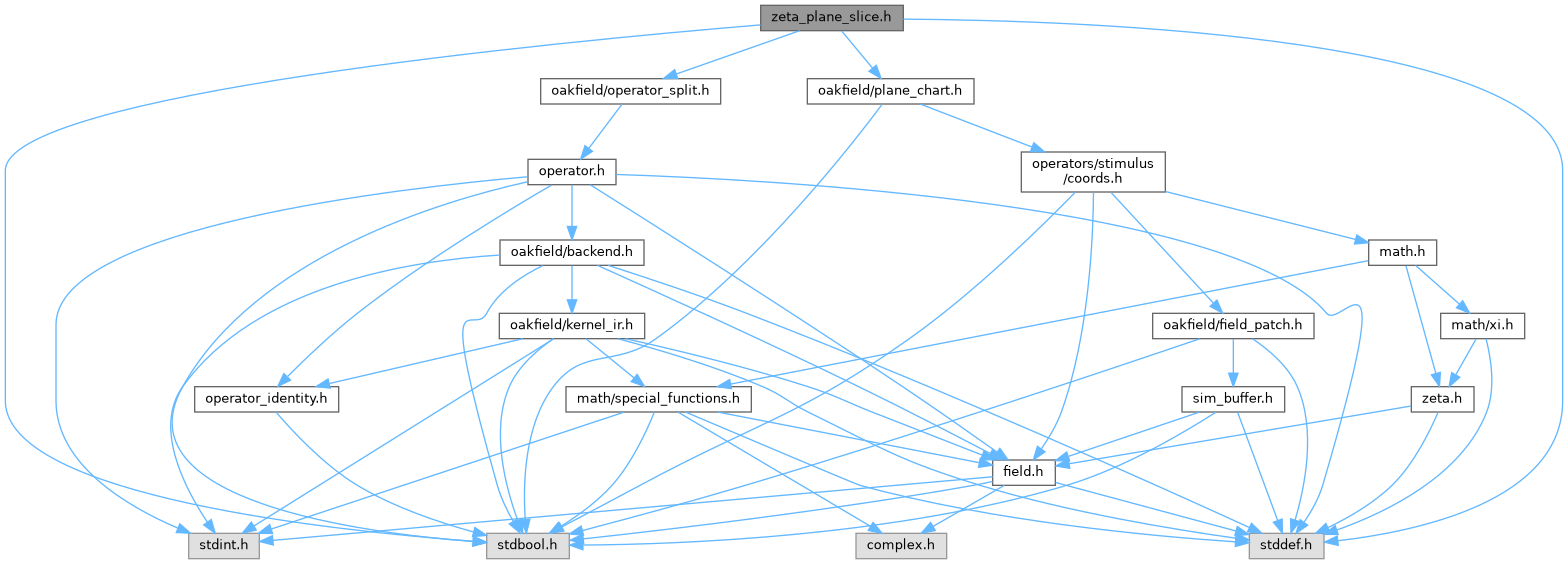

Include dependency graph for zeta_plane_slice.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SimStimulusZetaPlaneSliceConfig
	Configuration for sampling zeta or xi over a charted complex-plane slice. More...

Typedefs
typedef enum SimStimulusZetaPlaneSliceFamily	SimStimulusZetaPlaneSliceFamily
	Special-function family sampled by the complex-plane slice stimulus.
typedef enum SimStimulusZetaPlaneSliceViewMode	SimStimulusZetaPlaneSliceViewMode
	Scalar projection extracted from sampled Zeta/Xi values.
typedef enum SimStimulusZetaPlaneSliceRenderMode	SimStimulusZetaPlaneSliceRenderMode
	Accuracy/performance mode for zeta-plane sampling.
typedef struct SimStimulusZetaPlaneSliceConfig	SimStimulusZetaPlaneSliceConfig
	Configuration for sampling zeta or xi over a charted complex-plane slice.

Enumerations
enum	SimStimulusZetaPlaneSliceFamily { SIM_STIMULUS_ZETA_PLANE_SLICE_FAMILY_ZETA = 0 , SIM_STIMULUS_ZETA_PLANE_SLICE_FAMILY_XI = 1 }
	Special-function family sampled by the complex-plane slice stimulus. More...
enum	SimStimulusZetaPlaneSliceViewMode {   SIM_STIMULUS_ZETA_PLANE_SLICE_VIEW_RE = 0 , SIM_STIMULUS_ZETA_PLANE_SLICE_VIEW_IM , SIM_STIMULUS_ZETA_PLANE_SLICE_VIEW_ABS , SIM_STIMULUS_ZETA_PLANE_SLICE_VIEW_LOG_ABS ,   SIM_STIMULUS_ZETA_PLANE_SLICE_VIEW_ARG }
	Scalar projection extracted from sampled Zeta/Xi values. More...
enum	SimStimulusZetaPlaneSliceRenderMode { SIM_STIMULUS_ZETA_PLANE_SLICE_RENDER_EXACT = 0 , SIM_STIMULUS_ZETA_PLANE_SLICE_RENDER_INTERACTIVE }
	Accuracy/performance mode for zeta-plane sampling. More...

Functions
SimResult	sim_add_stimulus_zeta_plane_slice_operator (struct SimContext *context, const SimStimulusZetaPlaneSliceConfig *config, size_t *out_index)
	Register a Zeta/Xi complex-plane slice stimulus operator.
SimResult	sim_stimulus_zeta_plane_slice_config (struct SimContext *context, size_t operator_index, SimStimulusZetaPlaneSliceConfig *out_config)
	Copy the current Zeta-plane slice configuration from a registered operator.
SimResult	sim_stimulus_zeta_plane_slice_update (struct SimContext *context, size_t operator_index, const SimStimulusZetaPlaneSliceConfig *config)
	Replace or renormalize a registered Zeta-plane slice configuration.

Detailed Description

Complex-plane slice stimulus for Zeta/Xi visualization.

Samples either zeta(s) or xi(s) over a rectangular window in the complex plane and writes a scalar projection of the sampled value into the target field. The window is parameterized by the center sigma_center + i t_center and spans sigma_span by t_span.

This operator uses the supported Zeta/Xi evaluators. Render-mode defaults, sampling heuristics, and visual output may evolve as the visualization surface is refined.

Enumeration Type Documentation

SimStimulusZetaPlaneSliceFamily

enum SimStimulusZetaPlaneSliceFamily

Special-function family sampled by the complex-plane slice stimulus.

Enumerator
SIM_STIMULUS_ZETA_PLANE_SLICE_FAMILY_ZETA	Sample the Riemann zeta function.
SIM_STIMULUS_ZETA_PLANE_SLICE_FAMILY_XI	Sample the completed xi function.

SimStimulusZetaPlaneSliceRenderMode

enum SimStimulusZetaPlaneSliceRenderMode

Accuracy/performance mode for zeta-plane sampling.

Enumerator
SIM_STIMULUS_ZETA_PLANE_SLICE_RENDER_EXACT	Use exact/high-accuracy context.
SIM_STIMULUS_ZETA_PLANE_SLICE_RENDER_INTERACTIVE	Use relaxed interactive context.

SimStimulusZetaPlaneSliceViewMode

enum SimStimulusZetaPlaneSliceViewMode

Scalar projection extracted from sampled Zeta/Xi values.

Enumerator
SIM_STIMULUS_ZETA_PLANE_SLICE_VIEW_RE	Real component.
SIM_STIMULUS_ZETA_PLANE_SLICE_VIEW_IM	Imaginary component.
SIM_STIMULUS_ZETA_PLANE_SLICE_VIEW_ABS	Magnitude.
SIM_STIMULUS_ZETA_PLANE_SLICE_VIEW_LOG_ABS	Log magnitude.
SIM_STIMULUS_ZETA_PLANE_SLICE_VIEW_ARG	Phase angle.

Function Documentation

sim_add_stimulus_zeta_plane_slice_operator()

SimResult sim_add_stimulus_zeta_plane_slice_operator	(	struct SimContext *	context,
		const SimStimulusZetaPlaneSliceConfig *	config,
		size_t *	out_index
	)

Register a Zeta/Xi complex-plane slice stimulus operator.

The implementation copies and normalizes config, prepares the plane chart, and registers a scalar projection of the sampled analytic family.

Parameters

	context	Simulation context that will own the operator.
	config	Optional zeta-plane configuration; NULL selects normalized defaults.
[out]	out_index	Optional destination for the registered operator index.

Returns

SIM_RESULT_OK on success, or an error code from validation, allocation, runtime setup, or split-operator registration.

sim_stimulus_zeta_plane_slice_config()

SimResult sim_stimulus_zeta_plane_slice_config	(	struct SimContext *	context,
		size_t	operator_index,
		SimStimulusZetaPlaneSliceConfig *	out_config
	)

Copy the current Zeta-plane slice configuration from a registered operator.

Parameters

	context	Simulation context containing the operator.
	operator_index	Index returned by sim_add_stimulus_zeta_plane_slice_operator().
[out]	out_config	Receives the operator's normalized configuration.

Returns

SIM_RESULT_OK on success, SIM_RESULT_INVALID_ARGUMENT for NULL pointers, SIM_RESULT_NOT_FOUND for a missing operator, or SIM_RESULT_INVALID_STATE when the operator has no stimulus state.

sim_stimulus_zeta_plane_slice_update()

SimResult sim_stimulus_zeta_plane_slice_update	(	struct SimContext *	context,
		size_t	operator_index,
		const SimStimulusZetaPlaneSliceConfig *	config
	)

Replace or renormalize a registered Zeta-plane slice configuration.

Passing NULL for config keeps the existing configuration and reapplies normalization. A successful update refreshes runtime chart state and invalidates the scheduler plan.

Parameters

context	Simulation context containing the operator.
operator_index	Index of the zeta-plane slice operator to update.
config	Optional replacement configuration.

Returns

SIM_RESULT_OK on success, or an error code if lookup, runtime setup, or state validation fails.
