integrator_registry.h File Reference

Runtime selection utilities for libsimintegrators. More...

#include "integrator.h"

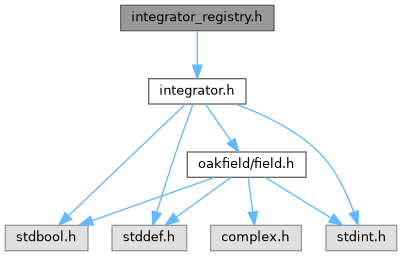

Include dependency graph for integrator_registry.h:

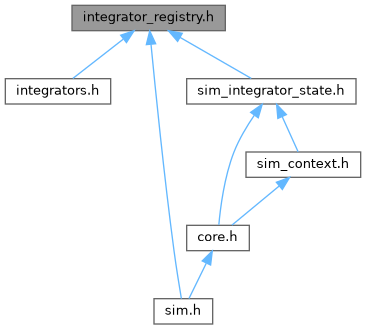

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	IntegratorRegistryEntry
	Entry stored by the registry. More...
struct	IntegratorRegistry
	Registry container for integrator factories. More...

Typedefs
typedef SimResult(*	IntegratorCreateFn) (const IntegratorConfig *config, Integrator *out)
	Factory function creating an integrator instance.
typedef struct IntegratorRegistryEntry	IntegratorRegistryEntry
	Entry stored by the registry.
typedef struct IntegratorRegistry	IntegratorRegistry
	Registry container for integrator factories.

Functions
SimResult	integrator_registry_init (IntegratorRegistry *registry)
	Initialize a registry and register built-in integrator factories.
void	integrator_registry_destroy (IntegratorRegistry *registry)
	Release registry storage.
SimResult	integrator_registry_register (IntegratorRegistry *registry, const char *name, IntegratorCreateFn create_fn)
	Add or replace a factory under a registry name.
IntegratorCreateFn	integrator_registry_lookup (const IntegratorRegistry *registry, const char *name)
	Look up a factory by registry name.
SimResult	integrator_registry_create (const IntegratorRegistry *registry, const char *name, const IntegratorConfig *config, Integrator *out)
	Create an integrator from a registered factory.
SimResult	integrator_registry_register_builtin (IntegratorRegistry *registry)
	Register the built-in integrator factory set.

Detailed Description

Runtime selection utilities for libsimintegrators.

The registry maps stable textual integrator names such as "rk4" and "etdrk4" to factory callbacks. Registry storage is owned by the registry; created Integrator instances are written into caller-provided memory and must later be passed to integrator_destroy().

Typedef Documentation

IntegratorCreateFn

typedef SimResult(* IntegratorCreateFn) (const IntegratorConfig *config, Integrator *out)

Factory function creating an integrator instance.

Parameters

	config	Optional configuration forwarded to the concrete factory.
[out]	out	Caller-owned integrator storage populated on success.

Returns

SIM_RESULT_OK on success, or an error from validation, allocation, or concrete integrator setup.

IntegratorRegistry

typedef struct IntegratorRegistry IntegratorRegistry

Registry container for integrator factories.

The entry array is heap-owned after initialization and must be released with integrator_registry_destroy().

IntegratorRegistryEntry

typedef struct IntegratorRegistryEntry IntegratorRegistryEntry

Entry stored by the registry.

Names are copied into fixed-size storage and compared by their stored byte sequence. Registering an existing name replaces its factory.

Function Documentation

integrator_registry_create()

SimResult integrator_registry_create	(	const IntegratorRegistry *	registry,
		const char *	name,
		const IntegratorConfig *	config,
		Integrator *	out
	)

Create an integrator from a registered factory.

Parameters

	registry	Registry to inspect.
	name	Null-terminated integrator name.
	config	Optional configuration forwarded to the factory.
[out]	out	Caller-owned integrator storage populated on success.

Returns

SIM_RESULT_OK, SIM_RESULT_INVALID_ARGUMENT, SIM_RESULT_NOT_FOUND, or an error returned by the selected factory.

integrator_registry_destroy()

void integrator_registry_destroy

(

IntegratorRegistry *

registry

)

Release registry storage.

Parameters

registry

Registry to destroy; NULL is ignored.

integrator_registry_init()

SimResult integrator_registry_init

(

IntegratorRegistry *

registry

)

Initialize a registry and register built-in integrator factories.

Parameters

[out]

registry

Registry storage to initialize.

Returns

SIM_RESULT_OK, SIM_RESULT_INVALID_ARGUMENT, or SIM_RESULT_OUT_OF_MEMORY.

integrator_registry_lookup()

IntegratorCreateFn integrator_registry_lookup	(	const IntegratorRegistry *	registry,
		const char *	name
	)

Look up a factory by registry name.

Parameters

registry	Registry to inspect.
name	Null-terminated integrator name.

Returns

Factory callback, or NULL when the name is absent or inputs are invalid.

integrator_registry_register()

SimResult integrator_registry_register	(	IntegratorRegistry *	registry,
		const char *	name,
		IntegratorCreateFn	create_fn
	)

Add or replace a factory under a registry name.

Parameters

registry	Registry to mutate.
name	Null-terminated integrator name copied into the registry.
create_fn	Factory callback for the name.

Returns

SIM_RESULT_OK, SIM_RESULT_INVALID_ARGUMENT, or SIM_RESULT_OUT_OF_MEMORY.

integrator_registry_register_builtin()

SimResult integrator_registry_register_builtin

(

IntegratorRegistry *

registry

)

Register the built-in integrator factory set.

Built-ins currently include euler, heun, rk4, rkf45, backward_euler, crank_nicolson, etdrk4, and subordination.

Parameters

registry

Registry to mutate.

Returns

SIM_RESULT_OK, SIM_RESULT_INVALID_ARGUMENT, or SIM_RESULT_OUT_OF_MEMORY.
